3CR12 Stainless Steel Cold Rolled Plate

If you are looking for a cost-effective 3CR12 stainless steel cold rolled plate, we offer high-quality products that meet standards such as ASTM A240, EN 10088, and SANS 651 (3CR12) to meet the needs of industrial and structural applications.



What is a 3CR12 Stainless Steel Cold Rolled Plate?

3CR12 cold-rolled stainless steel sheet is a versatile and highly cost-effective 12% chromium utility-grade ferritic stainless steel (typically designated as 1.4003 or 41003). This material combines moderate corrosion resistance with high strength, making it a durable alternative to carbon steel or coated steel in industrial environments. It is particularly well-suited for structural components and wear-resistant applications.



We supply 3CR12 stainless steel plates in thicknesses of 0.5mm–6mm and widths of 1000mm–2000mm. Product forms include flat sheets, coils, and cut sheets to length. Surface treatments include 2B, BA, and No.4. Through cold rolling, annealing, and leveling processes, we ensure high flatness, stable dimensional accuracy, and improved surface finish. Its yield strength is approximately ≥350MPa, and its wear resistance is superior to 304 stainless steel, making it suitable for environments from -20℃ to 300℃.



Stainless Steel 3Cr12 Sheets, Plates & Coils Specification

Item	Details
Standard	ASTM A240 / ASME SA240
Range	5mm To 150mm
Width	1000mm / 1219mm / 1250mm / 1500mm / 2000mm
Length	2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm
Thickness of Coils	Ranging from 0.3mm to 10mm
Thickness of Sheets (Cold Rolled)	Ranging from 0.3 mm to 6 mm
Thickness of Sheets / Plates (Hot Rolled)	Ranging from 3.0 mm to 20 mm
Hardness	As per ASME A & NACE MR 175
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.



Chemical composition of grade 3CR12 stainless steel plate

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
1.4003	min.	-	-	-	-	-	10.50	-	0.30	-
S40977	max.	0.030	1.50	1.00	0.040	0.015	12.50	-	1.00	0.030
S41003	min. max.	- 0.03	- 1.50	- 1.00	- 0.040	- 0.030	10.5 12.5	- -	- 1.50	- 0.030



AISI 410L sheets Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof Stress (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell (HR) max	Brinell (HB) max
1.4003	450 650	280 (long.) 320 (trans.)	20	-	-
S40977	455	280	18	HR B88	180
S41003	455	275	18	HR C20	223



What is the difference between 3CR12 and 304 stainless steel?

The main difference between 3CR12 and 304 stainless steel lies in their composition and corrosion resistance: 304 is a non-magnetic austenitic stainless steel (containing 18% chromium/8% nickel) with extremely high corrosion resistance, suitable for various general applications. 3CR12, on the other hand, is an economical and magnetic 12% chromium ferritic "practical" steel; compared to 304 stainless steel, it is more competitively priced and particularly suitable for mining equipment, conveying systems, wastewater treatment, vehicle manufacturing, and building structures.



Specification Range:

Cold-Rolled Thickness: Typically ranges from 0.5 mm to 3.0 mm. Thicknesses exceeding 3.0 mm are generally processed using the hot-rolled (No. 1) method.
Width: Common widths include 1000 mm, 1219 mm, and 1500 mm.
Lead Time: Typically 45–60 days. If mass production is currently underway, the lead time may be shortened to approximately 30 days.

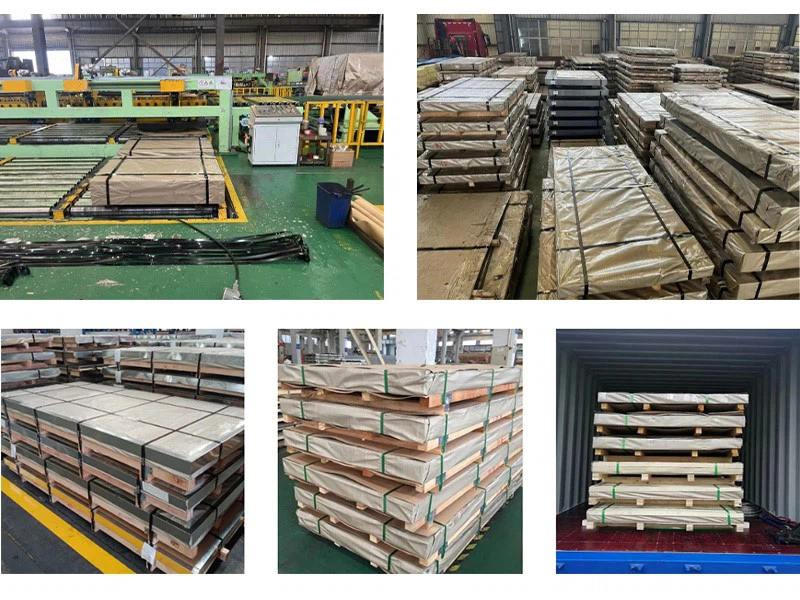

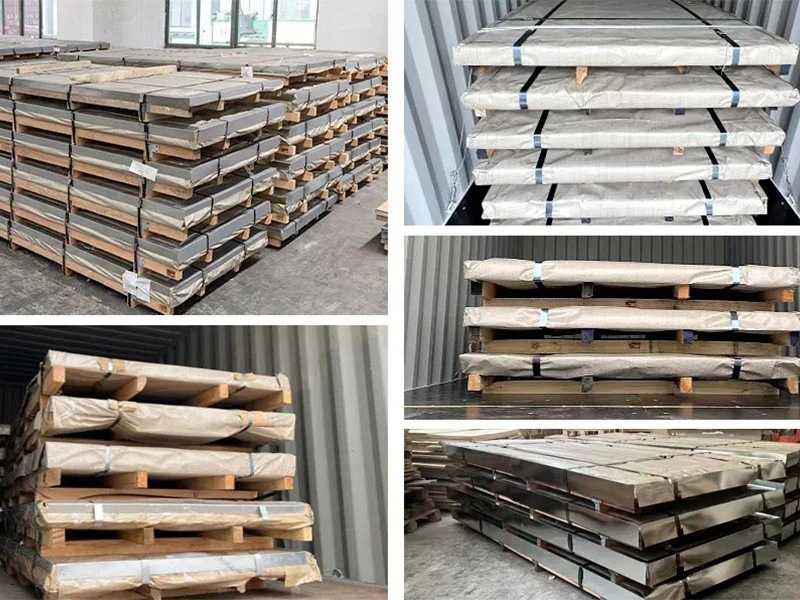

Packaging

Surface Protection:Protective Film (PVC/PE Coating): Upon customer request, single-sided or double-sided protective films (e.g., blue film, black-and-white film) can be applied to prevent scratches during stamping and processing.
Interleaving Paper: Paper is placed between sheets to prevent surface damage caused by friction (commonly used for 2B finishes).
Strapping Standards:
Bottom Support: Reinforced, fumigated wooden pallets or steel pallets must be used. Given the high density of stainless steel, the load capacity per pallet is typically set at 2–3 tons.
