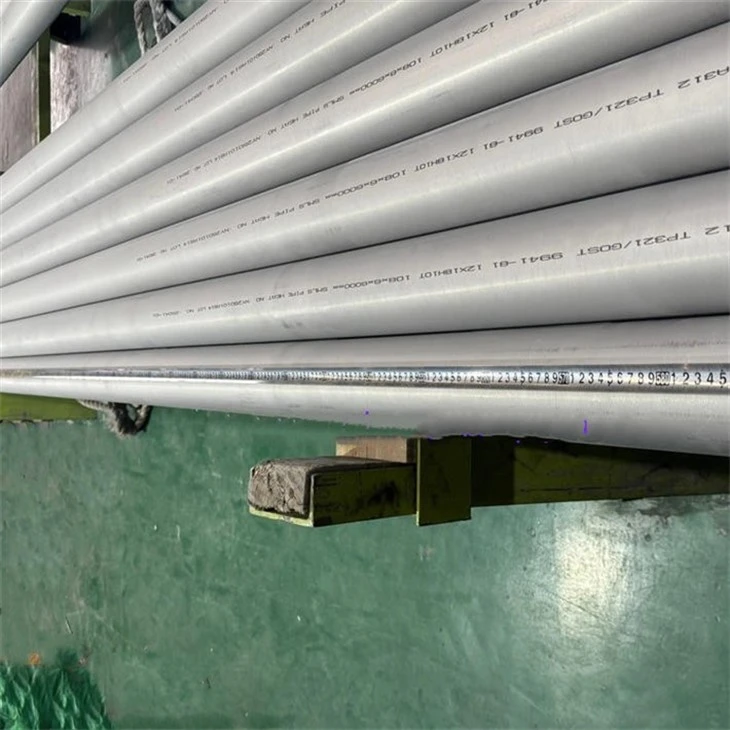

ASTM A312 TP321 Stainless Steel Hot Finished Pipe
Grade: TP321
Manufacturing Process: Seamless, Hot-worked
Delivery Condition: Solution Annealed and Pickled
Outside Diameter (OD) Tolerance: ±0.8 mm (1/32 in.)
Wall Thickness (WT) Tolerance: +22.5% / -12.5%
Cross-sectional Shape: Round
Outside Diameter Range: 3.18 – 800 mm
Shipping Packaging: Plastic end caps fitted to both ends; bundled packaging
ASTM A312 TP 321 SS Seamless Pipes Manufacturer
When purchasers choose ASTM A312 TP321 hot rolled stainless steel pipes, their primary concern is the material's long-term stability and resistance to intergranular corrosion in high-temperature environments. The high-quality TP321 stainless steel pipes supplied by GNEE feature titanium (Ti) stabilization, specifically designed for service conditions ranging from 400°C to 800°C, effectively preventing intergranular corrosion caused by welding and prolonged high-temperature exposure.
Our TP321 stainless steel round pipes are manufactured through hot rolling, solution annealing (≥1040°C), and rapid cooling processes, followed by pickling surface treatment. With a Brinell hardness (HBW) ≤192 or Rockwell hardness B (HRB) ≤90, the pipes maintain outstanding creep resistance even in high-temperature environments above 500°C, significantly outperforming standard 304 stainless steel pipes.
We strictly control dimensional tolerances and eccentricity in full compliance with ASTM A999 standards, ensuring precise alignment during welding with flanges or elbows and preventing structural strength reduction caused by uneven wall thickness. Available specifications include outer diameters from 21.3–610 mm, wall thicknesses from 2.0–40 mm, and fixed lengths of 6–12 m. Customized non-standard lengths, beveling, and end finishing services are also supported. The pipe surfaces are smooth and free from cracks, folds, oxide pits, and other defects.
In addition, SS 321 pipes are widely used in welded structures, making intergranular corrosion testing particularly important. In accordance with ASTM A262 Practice E standards, GNEE provides corresponding inspection reports to ensure that the pipes remain resistant to sensitization corrosion even within the welding heat-affected zone.
Click to get the intergranular corrosion report
What is the difference between TP321 and TP321H?
TP321 stainless steel tubing features a standard carbon content range (typically ≤0.08%). TP321H stainless steel is a high-carbon variant (with a carbon content ranging from 0.04% to 0.10%). The "H" stands for "High Carbon," indicating that it is specifically designed for higher-temperature environments to provide superior creep strength.
SS UNS S32100 Seamless Pipes Specifications
ASTM A312 TP321 SS Seamless Pipes Chemical Composition % Max
| Grade | C | Mn | P | S | Si | Cr | Ni | Mo | Nb | Ti |
| TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | … | … | 5C-0.70 |
stainless steel 321 cold finished pipe Mechanical Properties
| Material | Heat Treatment | Temperure Min. F(C) | Tensile Strength Ksi (MPa), Min. | Yield Strength Ksi (MPa), Min. | Elongation %, Min |
| TP321 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
Outside diameter and Tolerance
| Hot rolled | Outside Diameter, mm | Tolerance |
| 30≤OD≤219.1 | D2, ±1% or ±0.5mm | |
| 219.1＜OD≤610 | D1, ±1.5% or ±0.75mm | |
| Cold Drawn | Outside Diameter, mm | Tolerance |
| OD≤219.1 | D3, ±0.75% or ±0.3mm | |
| OD≤219.1 | D4, ±0.5% or ±0.1mm |
Price List of Stainless Steel 321 Seamless Pipes
Price of Stainless Steel Seamless Pipe ASTM A312 TP 321 : US $2100-4800 / Ton (FOB Price)
Price of Stainless Steel ASME SA312 TP 321 Seamless Pipe : US $2100-4800 / Ton (FOB Price)
Click to get the latest prices
Applications of ASTM A312 TP321 Stainless Steel Seamless Pipe
Oil & Gas Industry: Oil and gas pipelines, refinery process piping, and offshore platforms.
Chemical Industry: Manufacturing of chemical equipment, piping systems, and storage tanks.
Aerospace: Used in the manufacture of critical components such as aircraft engine parts, fuel systems, and heat exchangers.
Stainless Steel 321 Seamless Pipe Suppliers in china
GNEE supplies TP321 stainless steel round tubes, covering a comprehensive size range from Φ6.35mm to Φ219mm. We support the customization of ultra-high-pressure, thick-walled tubes (such as Φ114×12mm) and employ advanced processes including laser welding and in-line solution treatment to ensure full-process quality control. We currently hold ISO 9001, API 5L, and ASME BPVC VIII certifications.
Quality Inspection
Hydrostatic Test: Every pipe must pass this test to ensure there are no leaks under high pressure.
Electromagnetic/Eddy Current/Ultrasonic Testing: As hot-rolled large-diameter pipes, the presence of internal inclusions or cracks is critical; the buyer will verify the testing ratio.
Packaging and shipping
🔹Labeling: Each package includes furnace number, grade, dimensions, and standard information.
🔹Delivery Time: Usually within 7-15 business days after receiving the down payment.
🔹Shipping Method: Sea freight (FCL/LCL), air freight, or express delivery, depending on customer requirements.
