ASTM A312 TP347 Seamless Steel Pipe for High Temperature
Material:Stainless Steel
Surface Treatment:Polished
Section Shape:Round
Od:1/8"-20"
Delivery Condition:Solution Annealed and Pickled
Pipe End:Plain End/Beveled End/Threaded End
Transport Package:Both Side with End Caps
ASTM A312 TP347 Stainless Steel Pipe Manufacturer
GNEE specializes in the production of high-quality ASTM A312 TP347 stainless steel pipes, with operations spanning more than 60 countries worldwide. Its key overseas markets include Southeast Asia, the Middle East, and Latin America. The facility frequently hosts clients from countries such as Vietnam, Bangladesh, and Kazakhstan for on-site visits to discuss the establishment of long-term partnerships.
Our factory's ASTM A312 TP347 stainless steel pipes can operate continuously and stably within 427–816 ℃, with a maximum oxidation resistance temperature of 800 ℃ in atmospheric environments. They feature a tensile strength of ≥515 MPa and a yield strength of ≥205 MPa, delivering excellent high‑temperature resistance and creep resistance. Meanwhile, TP347H stainless steel pipes contain niobium at Nb≥10×C%. Batches subjected to stabilization heat treatment show zero intergranular corrosion cracks in tests, boasting outstanding corrosion resistance for demanding applications such as boiler superheaters, catalytic reforming units and high‑temperature chemical pipelines.
Our seamless ASTM A312 TP347 stainless steel pipes are produced via hot piercing to eliminate weld seams and mitigate leakage risks at the source. The cold rolling process enables precise control over wall thickness and outer diameter, while solution annealing stabilizes the material's microstructure. These processes effectively boost creep resistance and reduce performance degradation during long‑term high‑temperature service.


If you are sourcing or calculating for a specific project, let me know:
• Are you looking for seamless or welded pipe?
• What is your required NPS size and schedule/thickness?
• What operating temperature or pressure are you designing for?
ASTM A312 TP 347 sS Pipe Specification
| Parameter | Specification |
| Standard | ASTM A312 / A312M-24 |
| Grade | TP347 (UNS S34700) |
| European Equivalent | 1.4550 / X6CrNiNb18-10 |
| Process | Seamless (hot-rolled & cold-finished) |
| Size Range | ⅛" – 24" OD (6.35 – 610 mm) |
| Wall Thickness | 0.8 – 12.7 mm (SCH 5S – XXH) |
| Length | 6 m fixed / 12 m double random / up to 26 m |
| Forming | Billet piercing (Mandrel Mill / Plug Mill) |
Chemical Composition (wt %)
| Element | C | Mn | Si | P | S | Cr | Ni | Nb (Cb+Ta) |
| TP347 | 0.08 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 17.0 – 19.0 | 9.0 – 13.0 | 10×C min, 1.00 max |
TP347 vs. TP347H Comparison
| Element | TP347 (S34700) | TP347H (S34709) |
| Carbon | ≤ 0.08% | 0.04 – 0.10% |
| Nb (Cb+Ta) | 10×C min, 1.00 max | 10×C min, 1.00 max |
| Grain Size | Fine grain (ASTM No. 5–7) | Coarse grain (ASTM No. 7 or coarser) |
| Primary Use | General high-temp + corrosion | Creep-critical service > 550 °C |
Heat Treatment
| Parameter | Cold-Finished | Hot-Finished |
| Annealing Temp | 2000 °F (1100 °C) | 1925 °F (1050 °C) |
| Cooling | Water quench / air cool | Air cool |
| Purpose | Restore austenitic structure, dissolve NbC | Stress relief + grain coarsening (347H) |
Mechanical Properties (Room Temperature, Solution-Annealed)
| Property | Requirement |
| Tensile Strength | ≥ 75 ksi (515 MPa) |
| Yield Strength (0.2% offset) | ≥ 30 ksi (205 MPa) |
| Elongation (2 in. gauge) | ≥ 35 % |
| Hardness (Rockwell B) | ≤ 92 HRB |
| Hardness (Brinell) | ≤ 201 HB |
Service Temperature Limits
| Service Type | Maximum Temperature |
| Continuous (oxidation resistance) | 816 °C (1500 °F) |
| Intermittent / short-duration | 899 °C (1650 °F) |
| Creep-critical design (TP347H) | 816 °C (1500 °F) |
| Sensitization range (avoid) | 427 – 816 °C (800 – 1500 °F) - mitigated by Nb stabilization |
Elevated-Temperature Tensile Properties (Typical)
| Temperature | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
| 538 °C (1000 °F) | ~450 | ~180 | ~50 |
| 649 °C (1200 °F) | ~380 | ~150 | ~55 |
| 760 °C (1400 °F) | ~310 | ~120 | ~60 |
| 816 °C (1500 °F) | ~250 | ~95 | ~65 |
Creep-Rupture Strength (100,000 hr, TP347H)
| Temperature | Creep-Rupture Stress (MPa) |
| 593 °C (1100 °F) | ~80 |
| 649 °C (1200 °F) | ~60 |
| 704 °C (1300 °F) | ~40 |
| 760 °C (1400 °F) | ~25 |
Dimensions & Tolerances (per ASME B36.19M)
| Parameter | Tolerance |
| OD (NPS ≤ 18") | +0.5% / −0.3% |
| OD (NPS > 18") | ± 1/16 in. (± 1.6 mm) |
| Wall Thickness (NPS ≤ 2½") | +20% / −0% |
| Wall Thickness (NPS 3"–18", t/D ≤ 5%) | +22.5% / −12.5% |
| Straightness | ≤ 0.15% of length, max 4 mm/m |
| Out-of-Roundness | ≤ 1% of OD |
| Length (cut-to-length) | +1/2 in. / −0 |

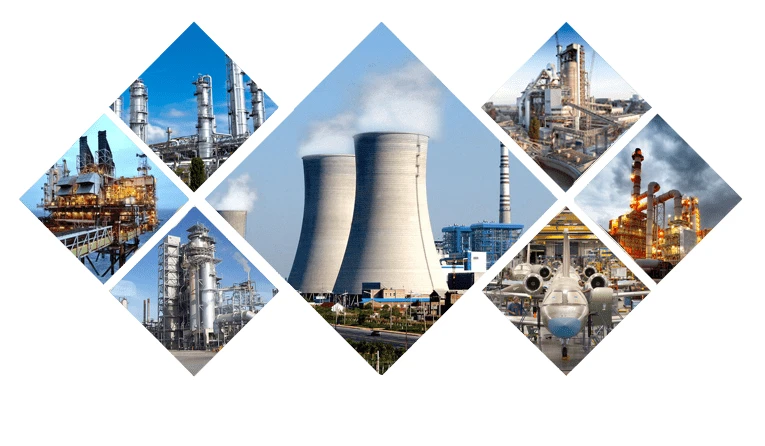

ASTM A312 Stainless Steel 347 Pipes Application
• Petrochemical & Refineries: High-temperature process lines, catalytic cracking units.
• Power Generation: Boilers, superheaters, and steam piping.
• Aerospace: Exhaust manifolds, aircraft collector rings, and expansion joints.

If you are planning a project, let me know:
Do you need seamless or welded pipe?
What are the required size, schedule, and length dimensions?
I can help provide further engineering properties or selection criteria.
Quality Control
GNEE performs strict pre-shipment inspection for ASTM A312 TP347 Seamless Steel Pipes to ensure reliability in high-temperature service. Each pipe undergoes chemical composition analysis, tensile testing, hardness testing, dimensional inspection, visual inspection and hydrostatic or non-destructive electric testing according to ASTM A312 requirements.

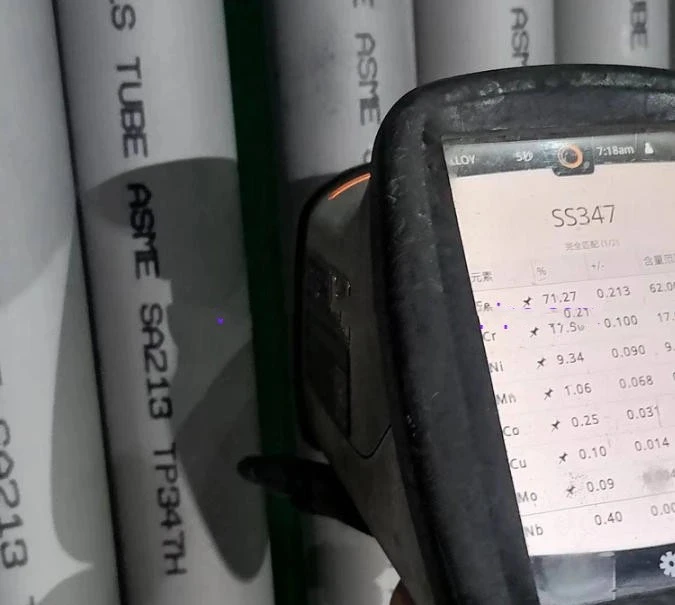

347 PMI

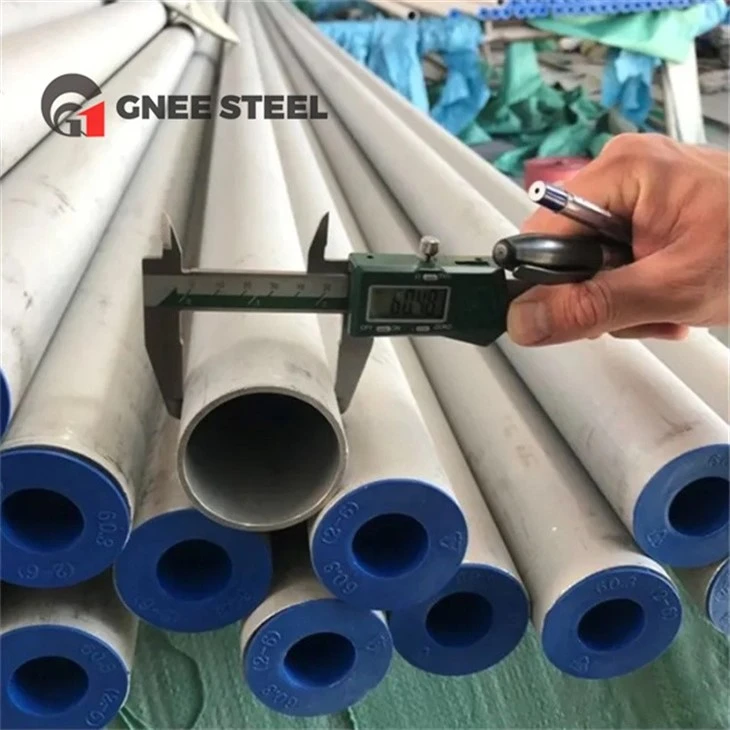

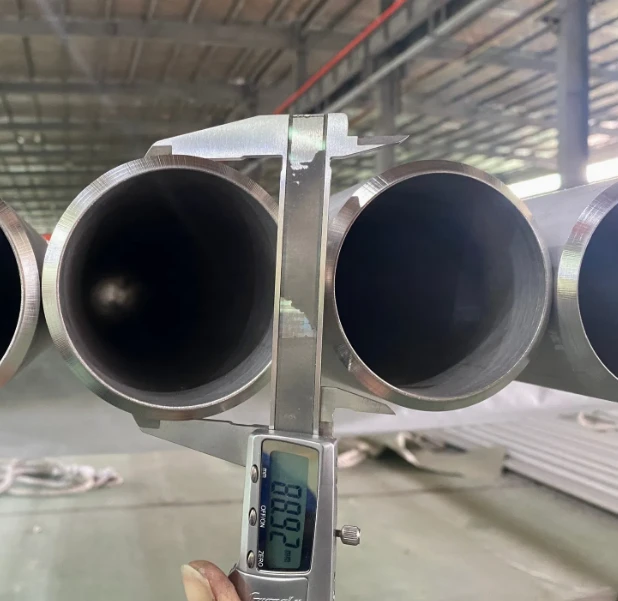

Diameter measurement

Dimensional measurement

To learn more about our quality control process, please click the link below to view our product inspection videos, testing procedures, and inspection reports.
High-quality product packaging
For steel pipe packaging, high‑density solid end caps or rubber protective caps are installed at both ends to tightly seal the pipe orifices. Afterwards, the pipes are wrapped with plastic films and secured by strapping or packed in laminated wooden crates, so as to meet seaworthiness requirements during transportation or special packaging demands specified by clients.


FAQ
Q: Why is TP347 suitable for high-temperature environments?
A: TP347 is an austenitic stainless steel alloyed with niobium (Nb). The addition of niobium acts as a stabilizer, preventing chromium carbide precipitation at grain boundaries; this imparts excellent resistance to intergranular corrosion and superior creep-rupture strength within the 427°C–816°C temperature range, making it a preferred material for high-temperature, high-pressure piping.
Q: What are the differences between TP347 and TP316H/321?
A: TP347 offers superior high-temperature performance compared to TP316H and TP321. While TP321 uses titanium (Ti) as a stabilizer, titanium is prone to high burn-off rates at elevated temperatures; in contrast, TP347 uses niobium (Nb) for stabilization, resulting in more consistent high-temperature rupture strength and corrosion stability-particularly under cyclic thermal conditions involving alternating heating and cooling.
Q: What are the mandatory heat treatment requirements under ASTM A312 for high-temperature applications?
A: TP347 seamless pipes intended for high-temperature service must undergo full-length solution annealing (typically at temperatures ≥ 1040°C, followed by rapid cooling). This process ensures a uniform microstructure, completely eliminates stresses induced by cold working or welding, and guarantees stability at high temperatures.
Q: What special precautions should be taken when welding TP347?
A: Due to its niobium content, the material is highly sensitive to heat input during welding. Care must be taken to avoid "hot cracking" caused by excessive heat input. It is recommended to use matching filler materials (such as ER347 welding wire) and to strictly control interpass temperatures. For pipes with thicker walls, appropriate post-weld stress relief treatment may be required.
