316L Stainless Steel: The Marine-Grade Corrosion Resistor
Jul 28, 2025
Leave a message
What Makes 316L a Marine-Grade Alloy
316L (UNS S31603, EN 1.4404) is the workhorse stainless steel of marine and coastal engineering. It is an austenitic 18-8 chromium-nickel steel modified with 2-3% molybdenum and held to a maximum carbon content of 0.030%. The molybdenum is the key addition for seawater duty: it strengthens the passive film against localised breakdown by chloride ions, which is the mechanism behind pitting and crevice corrosion in aggressive marine environments.
The low carbon level performs a different job. It limits the precipitation of chromium carbides along grain boundaries during welding, so the heat-affected zone keeps its corrosion resistance without a post-weld anneal. Together, these two design choices give 316L its reputation as a marine-grade corrosion resistor.
Chemical Composition and Pitting Resistance
| Element | Typical range for 316L |
|---|---|
| Chromium (Cr) | 16.0 - 18.0% |
| Nickel (Ni) | 10.0 - 14.0% |
| Molybdenum (Mo) | 2.00 - 3.00% |
| Carbon (C), max | 0.030% |
| Manganese (Mn), max | 2.00% |
| Silicon (Si), max | 0.75% |
| Nitrogen (N), max | 0.10% |
| Pitting resistance equivalent number | about 25 |
The pitting resistance equivalent number, calculated as Cr + 3.3 x Mo + 16 x N, gives a single figure for comparing alloys: 304L sits near 18, 316L near 25, and the higher molybdenum 317L near 31. In practice, a PRE of about 25 is sufficient for marine atmosphere, splash zone and intermittent seawater contact, but not for continuous immersion in warm, chlorinated, low-velocity seawater where higher-alloy alternatives are specified.
Performance in Chloride-Rich Environments
Atmospheric and splash-zone marine exposure: 316L resists staining, tea staining and pitting far better than 304L and is routine for coastal architectural and structural hardware.
Seawater contact: acceptable for intermittent service, flow-through systems with sufficient velocity and low temperature, and where surfaces are clean and passive. Stagnant, warm seawater is the limiting case.
Chloride stress corrosion cracking: the austenitic structure makes 316L sensitive to chloride SCC above roughly 60 °C in concentrated conditions, so hot concentrated chloride streams are handled with a different alloy family.
Mild chemicals and industrial fluids: 316L handles dilute acids and alkalis, food and pharmaceutical process media, salt spray and wash-down chemistry.
Coupling with carbon steel: because 316L is cathodic to carbon steel, gaskets, isolating sleeves and controlled coating practice are needed to avoid galvanic attack in immersed structures.
Mechanical Properties and Fabrication

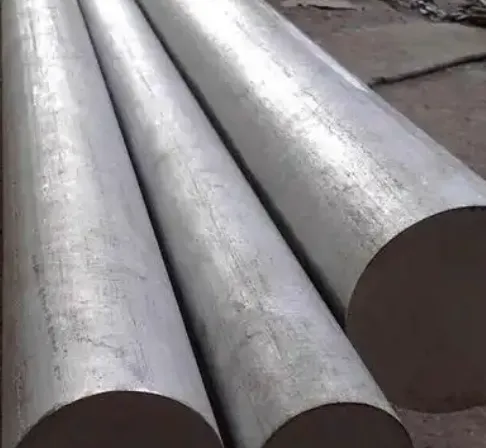

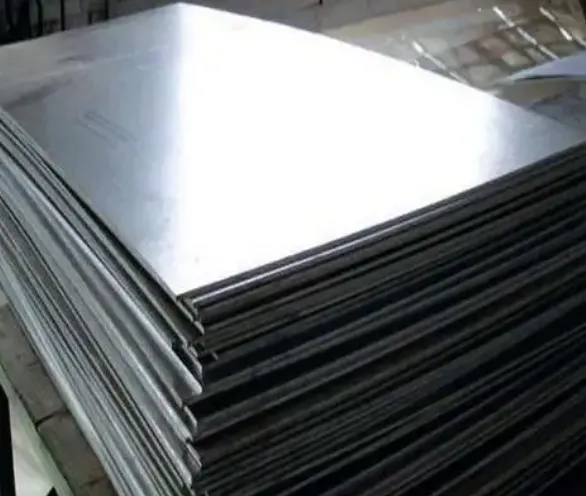

Annealed 316L is specified with a minimum tensile strength of 515 MPa, a 0.2% offset yield strength of about 205 MPa and a minimum elongation of 40% in 50 mm. That combination of moderate strength and high ductility means the alloy bends, rolls, deep-draws and stretches without cracking, which is why it appears in formed marine components as well as in pipe and plate.
Welding is straightforward with matching low-carbon filler metal using GTAW, GMAW, SMAW or SAW, and no post-weld heat treatment is required. In marine work the important details are cleanliness and finishing: weld spatter, embedded iron particles and heat tint must be removed, and welded or heat-affected areas should be pickled and passivated so the protective chromium oxide layer is restored uniformly across the joint.
316L versus 304L: Selection and Applications
304L is cheaper and entirely adequate in dry, indoor and mildly polluted conditions. 316L takes over wherever chloride exposure is significant: coastal and offshore structures, desalination plant piping, shipboard fittings, marine fasteners and pump components, and food or pharmaceutical plants that use chloride-bearing cleaning chemicals. The cost difference between the two grades is small compared with the cost of a corrosion failure in an inaccessible location, which is why marine specifications normally default to 316L even where the corrosion margin looks generous.
The main marine applications of 316L are:
Desalination plant and seawater cooling pipework and fittings
Shipboard piping, handrails, deck hardware, fasteners and heat exchanger tubes
Offshore platform structural and process components in splash and atmospheric zones
Fish processing and marine food handling equipment
Coastal and offshore architectural components requiring low maintenance
Pharmaceutical and food processing vessels and tanks using chloride-containing cleaning agents
Frequently Asked Questions
Q: What does 316L contain?
16-18% chromium, 10-14% nickel, 2-3% molybdenum and a maximum of 0.030% carbon. The molybdenum improves resistance to pitting and crevice corrosion, while the low carbon content protects the welded structure from intergranular attack.
Q: Why is 316L called marine grade?
Because the molybdenum addition raises its pitting resistance equivalent number to about 25, which is sufficient for marine atmosphere, splash zone and intermittent seawater contact where 304L would pit and stain.
Q: Can 316L be used in continuous seawater immersion?
It is used for intermittent and flowing seawater duty with clean, passivated surfaces. Hot, stagnant and chlorinated seawater is the limiting case, so higher-alloy grades are specified for those conditions.
Q: Do welded 316L components need heat treatment?
No. The 0.030% maximum carbon content prevents sensitisation in the heat-affected zone, so welded joints only need cleaning, pickling and passivation rather than a post-weld anneal.
Q: How strong is 316L?
Minimum tensile strength is 515 MPa and elongation is at least 40% in 50 mm in the annealed condition, with yield strength around 205 MPa. Higher strength can be obtained by cold working when the application allows it.
Q: When should 316L be replaced by 317L?
When chloride levels, acid concentration or temperature rise beyond what a PRE of about 25 tolerates, for example in sulfuric acid service or high-chloride process streams. 317L provides a PRE of about 31 for a modest cost premium.
