316L vs. 304L Heat Exchanger Tubes: Applications
Mar 16, 2026
Leave a message
For engineers and procurement managers sourcing stainless steel heat exchanger tubes, material selection directly affects corrosion resistance, service life, and operating efficiency. Among austenitic stainless steels, 304L and 316L are the two most commonly used grades in heat exchanger systems across industries such as chemical processing, power generation, food processing, and marine engineering.
Understanding the differences in corrosion resistance, heat transfer performance, and flow characteristics can help buyers choose the most cost-effective and reliable material.
What is the difference between 304L and 316L heat exchanger tubes?
Both 304L and 316L are low-carbon versions of standard austenitic stainless steels. The "L" designation indicates low carbon content (≤0.03%), which improves weldability and reduces the risk of intergranular corrosion after welding.The key difference is that 316L contains molybdenum, which significantly enhances corrosion resistance in chloride-containing environments.
| Property | 304L Stainless Steel Tube | 316L Stainless Steel Tube |
|---|---|---|
| UNS Number | S30403 | S31603 |
| Key Alloying Elements | 18% Cr, 8% Ni | 16% Cr, 10% Ni, 2–2.5% Mo |
| Carbon Content | ≤0.03% | ≤0.03% |
| Corrosion Resistance | Good in mild environments | Excellent in chloride and chemical environments |
| Pitting Resistance | Moderate | High |
| Typical Standards | ASTM A213 / ASTM A269 | ASTM A213 / ASTM A269 |
| Cost | Lower | Higher |
316L vs. 304L Heat Exchanger Tubes: Heat Transfer Performance
The difference in heat transfer performance between 304L and 316L is very small. In most applications, corrosion resistance,not thermal conductivity,determines the material choice.
| Property | 304L | 316L |
|---|---|---|
| Thermal Conductivity (W/m·K) | ~16.2 | ~15.0 |
| Specific Heat (J/kg·K) | 500 | 500 |
| Density (kg/m³) | 8000 | 8000 |
Flow Rate and Pressure Drop Considerations
For heat exchanger tube buyers, flow rate directly impacts heat transfer efficiency and pressure drop.
The volumetric flow rate in a tube can be calculated using:
Where:
Q = volumetric flow rate
A = tube cross-sectional area
v = fluid velocity
Q = A v
Example Calculation
For a 19 mm (3/4 inch) OD heat exchanger tube with an internal diameter of 16 mm:
| Parameter | Value |
|---|---|
| Internal Diameter | 16 mm |
| Cross Section Area | 2.01 × 10⁻⁴ m² |
| Fluid Velocity | 1.5 m/s |
| Flow Rate | 0.00030 m³/s |

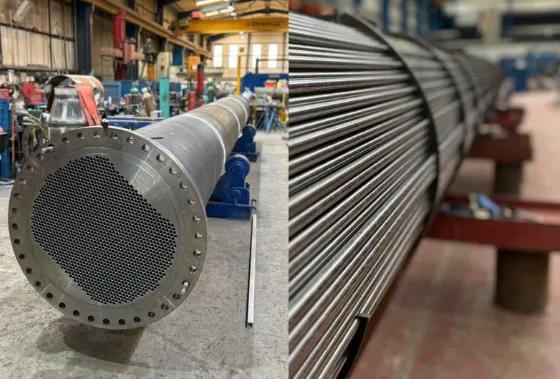

316L vs. 304L Heat Exchanger Tubes: Applications
316L stainless steel tubes are preferred for superior corrosion resistance against chlorides and high-temperature environments, ideal for marine, pharmaceutical, and chemical processing. 304L tubes are better for cost-effective, general-purpose applications like food, dairy, and mild heat exchanger environments due to good weldability and corrosion resistance.
Applications of 304L Heat Exchanger Tubes
304L tubes are widely used in general industrial heat transfer systems where the environment is not highly corrosive.
Food and beverage processing heat exchangers
HVAC condensers and evaporators
Freshwater cooling systems
Pharmaceutical heat exchangers
Oil and gas equipment with low chloride content
Applications of 316L Heat Exchanger Tubes
Chemical processing plants
Marine heat exchangers
Seawater desalination systems
Offshore oil & gas platforms
Pharmaceutical and biotech industries
Heat exchangers handling chloride-rich fluids
Which grade has a longer service life in heat exchangers?
In neutral or mild environments, both materials can provide long service life. However:
304L tubes typically perform well in freshwater cooling systems and general industrial applications.
316L tubes generally last longer in marine, chemical, and high-chloride environments.
In many industrial systems, selecting 316L instead of 304L can reduce maintenance costs and extend replacement intervals.
304L vs 316L Stainless Steel Heat Exchanger Tube:Price
Average Market Price (2026)
| Material | Price Range |
|---|---|
| 304L Stainless Steel Heat Exchanger Tube | $2,200 – $3,800 / ton |
| 316L Stainless Steel Heat Exchanger Tube | $3,000 – $6,500 / ton |
316L tubes are typically 20–40% more expensive than 304 tubes because they contain higher levels of nickel and molybdenum. However, in corrosive environments, the longer lifespan of 316L tubes often reduces maintenance and replacement costs.
SS 316L Heat Exchanger Tubes Supplier
**Compliance Standards:** Fully compliant with the ASTM A213, A249, A269, and A312 series standards, as well as the European EN 10216-5 TC1/TC2 standards. **System Certifications:** ISO 9001:2015, ISO 14001, and OHSAS 18001.
**Pressure Equipment:** For pressure vessel projects within Europe, we hold TUV PED 2014/68/EU and AD2000-W0 certifications.
**Dimensional Range:** We specialize in the production of high-precision tubing, with an Outer Diameter (OD) range covering 6mm to 762mm and a Wall Thickness (WT) range covering 0.5mm to 50mm.
**Special Shapes:** In addition to standard straight tubing, Gnee offers professional U-bending services, complemented by stress-relieving annealing treatments.
Quality Certifications
Reliable suppliers should provide:
Mill Test Certificates (MTC)
PMI testing
Hydrostatic testing
Eddy current inspection
