ASTM A312 TP304H ,TP316H, TP310H Seamless Pipe
Jan 29, 2026
Leave a message
Are you looking for high-temperature, corrosion-resistant seamless pipes for industrial applications?Our ASTM A312 TP304H, TP316H, and TP310H seamless pipes are engineered to deliver outstanding performance in high-temperature, corrosive, and pressure-intensive environments. Widely used in power plants, chemical processing, oil & gas, and petrochemical industries, these pipes ensure long service life, safety, and reliability.
🔹What Are TP304H, TP316H, and TP310H Pipes?
ASTM A312 specifies seamless and welded stainless steel pipes for high-temperature service.
| Grade | Key Feature | Typical Use |
|---|---|---|
| TP304H | High carbon austenitic steel, excellent for boiler and superheater tubes | Boilers, heat exchangers |
| TP316H | Higher molybdenum content for enhanced corrosion resistance | Chemical, pharmaceutical, marine |
| TP310H | High chromium and nickel for extreme heat resistance | Furnace tubes, kilns, high-temp ducts |
🔹Production Process of ASTM A312TP304H ,TP316H,TP310H Seamless Pipe
To ensure consistent performance under high-temperature conditions, our ASTM A312 H-grade seamless pipes are produced through a strictly controlled process:
Raw Material Inspection – Certified stainless steel billets with full chemical analysis
Hot Piercing – Formation of hollow pipe shell
Hot Rolling / Cold Drawing – Precise control of diameter and wall thickness
Solution Annealing – Improves high-temperature strength and corrosion resistance
Straightening & Cutting – Accurate dimensional control
Surface Treatment – Pickled or polished as required
Final Inspection & Testing
🔹ASTM A312 TP304H ,TP316H, TP310H Seamless Pipe Specifications
| Property | TP304H | TP316H | TP310H |
|---|---|---|---|
| Chromium (Cr) | 18–20% | 16–18% | 24–26% |
| Nickel (Ni) | 8–10% | 10–14% | 19–22% |
| Carbon (C) | 0.04–0.10% | 0.04–0.10% | 0.04–0.10% |
| Molybdenum (Mo) | - | 2–3% | - |
| Max Service Temp | 900°C | 950°C | 1100°C |
| Tensile Strength (MPa) | 520–750 | 520–750 | 520–700 |
| Yield Strength (MPa) | ≥205 | ≥205 | ≥205 |
🔹 TP304H vs TP316H vs TP310H
TP304H, TP316H, and TP310H are high-carbon (0.04%~0.10%) austenitic stainless steel grades designed for high-temperature applications such as superheaters and reheaters. TP304H offers standard high-temperature strength, TP316H includes molybdenum to enhance corrosion resistance (especially against chloride corrosion) and improve strength, while TP310H provides superior oxidation resistance (>1000°C).
🔹ASTM A312 TP304H ,TP316H, TP310H Seamless Pipe Pricing (Reference 2026)
| Grade | Size Range | Price per kg (USD) | Notes |
|---|---|---|---|
| TP304H | OD 25–100 mm, WT 2–10 mm | $4.20 – $5.50 | Depends on order quantity and finish |
| TP316H | OD 25–100 mm, WT 2–10 mm | $4.80 – $6.20 | Higher Mo content increases cost |
| TP310H | OD 25–100 mm, WT 2–10 mm | $5.50 – $7.50 | Designed for extreme heat applications |
🔹Ready to order your ASTM A312 TP304H, TP316H, or TP310H seamless pipes?
Custom diameters, wall thickness, and lengths available
Fast delivery and professional support
Our expert team will provide competitive pricing, technical support, and fast response, helping you select the perfect high-temperature, corrosion-resistant pipe for your project.
🔹 Packing, Shipping & Delivery Time
Standard sizes in stock: 7–10 days
Customized production: 20–35 days
Large project orders: Delivery schedule confirmed before order placement
We ensure on-time delivery to support your project timelines.

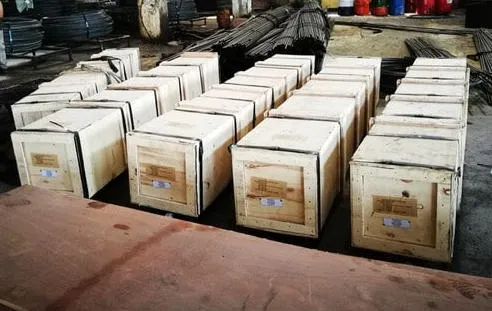

To protect the pipes from damage during long-distance transportation: plastic caps are fitted to both ends, each pipe is wrapped in plastic film, secured with steel straps, and packaged in wooden crates or steel pallets for export. Customized packaging is available upon request.

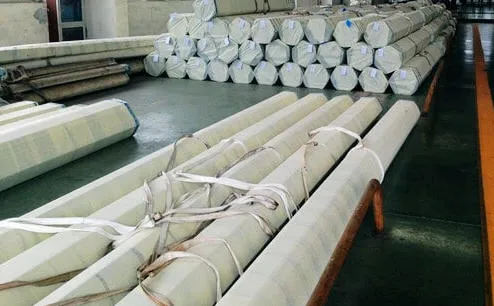

ASME SA312 Stainless Steel Tubes PE Fabric Bundles
FAQ
Q: Can these pipes be welded for high-temperature applications?
Yes, TP304H, TP316H, and TP310H can be welded with proper filler metals and heat control to maintain corrosion and heat resistance.
Q: Which grade should I choose for furnace tubes?
TP310H is recommended due to its higher chromium and nickel content, capable of withstanding temperatures above 1,100°C.
Q: Can you supply custom lengths?
Yes, lengths can be customized according to project requirements, from 1 m up to 12 m or cut-to-size.
Q: Are your pipes certified?
All pipes meet ASTM A312 / ASME SA312 standards, and are ISO, SGS, BV certified, ensuring traceability and quality.
