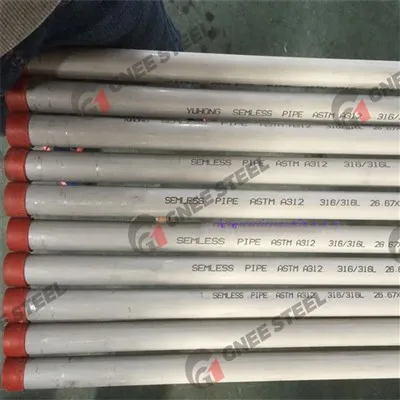

316 Stainless Steel Seamless Pipe
Product Description
316 stainless steel seamless pipe is an austenitic stainless steel made by hot rolling or cold rolling, with uniform wall thickness, smooth surface and strong pressure bearing capacity. Adding 2-3% molybdenum (Mo) significantly improves the corrosion resistance to chlorides, acids and high temperature environments, and is especially suitable for harsh scenes such as seawater and salt spray.
316 stainless steel cold-drawn pipe is non-magnetic and has excellent welding performance. It can be used for a long time in the range of -196°C to 800°C, and is suitable for high-pressure systems (such as oil pipelines).
Stainless Steel 316 seamless Tube
316 Stainless Steel Thick Wall Pipe Chemical Composition (%)
|
Element |
C (Max) |
Si (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Cr |
Ni |
Mo |
N (Max) |
|
316 |
0.08 |
1.00 |
2.00 |
0.045 |
0.030 |
16.5-18.5 |
10.0-14.0 |
2.0-3.0 |
0.10 |
UNS S31600 Round Pipe Mechanical Properties
|
Property |
Value |
|
Tensile Strength (MPa) |
≥515 |
|
Yield Strength (MPa) |
≥205 |
|
Elongation (%) |
≥40 |
|
Hardness (HB) |
≤217 |
|
Hardness (HRB) |
≤95 |
UNS S31600 Stainless Steel Cold Drawn Seamless Pipe Specification
|
Specification |
Outer Diameter (mm) |
Wall Thickness (mm) |
Length (m) |
|
ASTM A312 |
6 - 630 |
0.5 - 40 |
6 or as required |
|
ASTM A213 |
6 - 89 |
0.5 - 12 |
As required |
|
ASTM A269 |
6 - 114 |
0.5 - 12 |
As required |
|
EN 10216-5 |
6 - 250 |
0.5 - 25 |
As required |
316 Stainless Steel Pipe Vs. 304, 316L
Compared to 304 stainless steel: Higher molybdenum content improves its resistance to pitting and crevice corrosion, making it suitable for highly corrosive environments.
Compared to 316L stainless steel: Slightly higher carbon content (≤0.08% vs ≤0.03%), higher strength, but heat treatment is required after welding to avoid sensitization.
Advantages Of Choosing GNEE
Value-add services:
1. Stainless Steel Pipe Polishing
2. Stainless Steel Pipe Beveling
3. Stainless Steel Pipe Honing & Turning
4. Heatreating & Annealing
5. Positive Material Identification (PMI)
GNEE can perform PMI testing in house for most stainless steel grades, or we can work with independent labs to complete PMI in order to meet customer specifications.
6. UT Testing
316 Stainless Steel Seamless Pipe Manufacturers
Best quality 316 stainless steel cold finished pipe packaging
