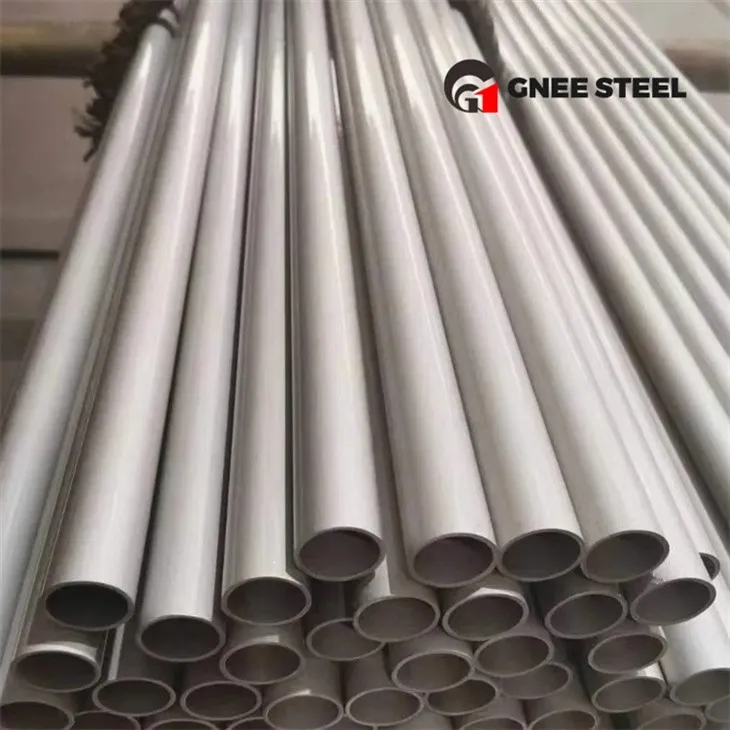

ASTM A213 TP304 Heat Exchanger Tubes
Material Grade:TP304 (UNS S30400)
Manufacturing Process:Seamless (Cold-Finished or Hot-Finished)
Condition (Heat Treatment):Solution Annealed (Min. 1040°C / 1900°F), Water Quenched
Surface Finish:Annealed and Pickled (A&P) or Bright Annealed (BA)
Standard Tolerances :Per ASTM A213
Non-Destructive Testing :100% Hydrostatic Test or Nondestructive Electric Test (ET/UT)
Supplementary Requirements:S1 (Intergranular Corrosion Test - ASTM A262 Practice E)
Marking:Heat No., Grade, Size, ASTM Standard, Manufacturer Name
ASTM A213 TP304 Boiler Tube Advantages
When purchasing ASTM A213 TP304 Heat Exchanger Tubes, customers mainly focus on material reliability, heat transfer performance, dimensional accuracy, surface quality, inspection documentation, and supply capability. For heat exchanger manufacturers, petrochemical plants, power generation projects, food processing equipment, and industrial heating systems, tube quality directly affects equipment efficiency, service life, and maintenance costs.

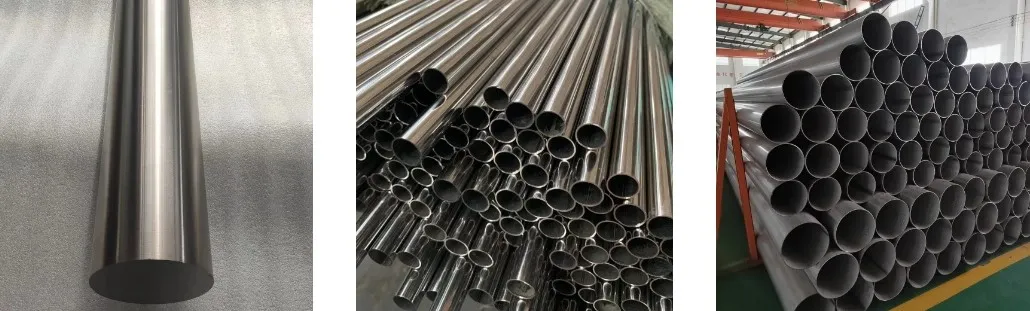

The ASTM A213 TP304 heat exchanger tubes supplied by GNEE are manufactured using a hot extrusion process with a seamless internal structure and no weld seams, providing higher pressure resistance (maximum tube diameter up to 24 inches). The inner surface roughness is low (Ra ≤0.05 mm), which helps reduce fluid resistance and improve heat transfer efficiency, making them especially suitable for precision instruments and high-purity media transportation.

In addition, ASTM A213 TP304 stainless steel boiler tubes can withstand extreme temperature ranges from -196°C to 800°C while maintaining stable mechanical properties at high temperatures, meeting the long-term operating requirements of boilers, superheaters, and other high-temperature equipment.
GNEE supplies ASME SA213 / ASTM A213 TP304 seamless stainless steel heat exchanger tubes with typical outside diameters ranging from 6.0 mm to 610 mm and wall thicknesses from 0.5 mm to 25 mm. We support customized solutions including U-bend tubes, straight tubes, and precision tubes for various conventional heat exchanger applications. In terms of processing and delivery, GNEE provides cut-to-length, end machining, beveling, special length production, and customized packaging services according to customer equipment design requirements.



Specification
Chemical Composition (wt %)
| Element | C | Mn | P | S | Si | Cr | Ni | Fe |
| Max | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | - | - | - |
| Range | - | - | - | - | - | 18.0–20.0 | 8.0–11.0 | Balance |
Mechanical Properties (Annealed Condition)
| Property | Value (Metric) |
| Tensile Strength (min) | 515 MPa |
| Yield Strength, 0.2% offset (min) | 205 MPa |
| Elongation in 2 in / 50 mm (min) | 35 % |
| Reduction of Area (min) | 55 % |
| Hardness - Brinell (max) | 192 HBW |
| Hardness - Vickers (max) | 200 HV |
| Hardness - Rockwell B (max) | 90 HRB |
Heat Treatment
| Parameter | Requirement |
| Process | Solution Annealing |
| Temperature (min) | 1900 °F (1040 °C) |
| Cooling Method | Water quench or other rapid cool |
| Optional | Pickling after annealing (if specified) |
ASTM A213 Heat Exchanger Tubes Dimensions & Tolerances
Size Range
| Parameter | Range |
| Outside Diameter | 1/8 in – 5 in (3.2 – 127 mm) |
| Wall Thickness (min) | 0.015 – 0.500 in (0.38 – 12.7 mm) |
| Standard Length | 6.0 m (20 ft) typical; up to 12 m (40 ft) |
Dimensional Tolerances (per ASTM A213 )
| OD Range (in) | OD Tolerance (in) | Wall Tolerance |
| ≤ 1.000 | ±0.002 | +20% / −0% (min wall) |
| > 1.000 – 1.500 | ±0.003 | +20% / −0% (min wall) |
| > 1.500 – 2.500 | ±0.004 | +20% / −0% (min wall) |
| > 2.500 – 5.000 | ±0.005 | +20% / −0% (min wall) |
For average wall (if specified): ±10% of specified wall for OD > 50 mm and wall > 5.6 mm.
Length Tolerance
| OD | Length Tolerance |
| < 50.8 mm (2 in) | +3 mm, 0 |
| ≥ 50.8 mm (2 in) | +5 mm, 0 |
ASTM A213 TP304 Heat Exchanger Tubes Applications
| Industry | Application |
| Power Generation | Boiler tubes, superheaters, economizers |
| Petrochemical | Heat exchangers, condensers, reboilers |
| Food & Beverage | Sanitary heat exchangers, pasteurizers |
| Pharmaceutical | Sterile process heat exchangers |
| Marine | Condenser tubes (fresh water service) |
| General Industrial | Evaporators, coolers, condensers |
If you need specific details, let me know:
• Are you looking for dimensional tolerances or testing requirements (like flattening or flaring)?
• Do you need an equivalent grade like TP304L or TP304H?
Quality Inspection
To ensure consistent performance, GNEE implements rigorous quality control measures, including 100% eddy current testing, hydrostatic testing, chemical composition analysis, tensile testing, hardness testing, and dimensional and surface inspections. Each shipment is accompanied by an EN 10204 3.1 Material Test Certificate (MTC)-covering heat number traceability, chemical composition, mechanical properties, and inspection results-to assist customers in meeting international project requirements.

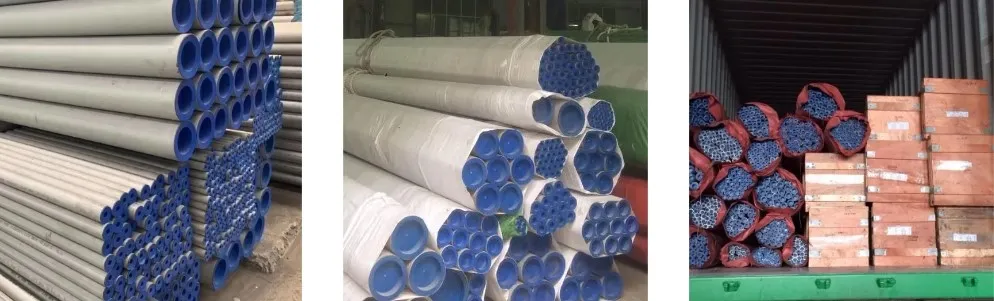

Packaging and Marking:
The products shall be packaged in bundles or plywood crates, wrapped in plastic, and provided with appropriate protective measures to ensure seaworthy transport, or packaged in accordance with specific requirements.
Markings shall indicate whether the tubing is hot-worked or cold-worked, and shall include-but not be limited to-the following information: standard, grade, dimensions, heat number, and batch number.


FAQ
What is the difference between ASTM A213 TP304 and ASTM A312 TP304?
Answer: The main differences lie in their application areas and manufacturing standards. ASTM A213 is designed specifically for boiler, superheater, and heat exchanger tubing, imposing stricter requirements on wall thickness tolerances (usually based on minimum wall thickness), dimensional accuracy, and surface quality; whereas ASTM A312 is primarily used for general fluid transport piping.
What is the maximum service temperature for A213 TP304?
Answer: In an oxidizing atmosphere, the maximum continuous service temperature for TP304 is typically around 816°C (1500°F), while intermittent service can reach 870°C (1600°F). However, prolonged exposure within the 427°C–816°C range carries a risk of carbide precipitation, which can lead to intergranular corrosion.
What are the common delivery conditions and surface finishes for A213 TP304 heat exchanger tubes?
Answer: A213 TP304 steel tubes must undergo solution annealing and rapid cooling. Common surface finishes include pickled surfaces, BA (Bright Annealed) surfaces, and precision polishing of both internal and external surfaces tailored for heat exchanger applications.
What are the standard dimensions and tolerances (such as BWG) for A213 TP304 heat exchanger tubes?
Answer: Heat exchanger tube specifications are typically designated by outside diameter (OD) and wall thickness in BWG (Birmingham Wire Gauge). Common ODs include 1/2 inch (12.7 mm), 3/4 inch (19.05 mm), and 1 inch (25.4 mm). Common wall thicknesses include 14 BWG (2.11 mm), 16 BWG (1.65 mm), and 18 BWG (1.24 mm). Wall thickness tolerances are controlled in accordance with the ASTM A1016 / A1016M standard.
How should one choose between TP304, TP304L, and TP304H heat exchanger tubes?
Answer:
TP304: A standard, general-purpose grade suitable for moderate-temperature service and conventional corrosive environments.
TP304L (Low Carbon, C ≤ 0.03%): Suitable for highly corrosive environments where welding is required but post-weld heat treatment is not feasible; offers superior resistance to intergranular corrosion.
TP304H (High Carbon, C: 0.04%–0.10%): Specifically designed for high-temperature service above 525°C; offers higher creep strength and rupture strength.
Can A213 TP304 heat exchanger tubes be fabricated into U-bends?
Answer: Yes. GNEE and other professional suppliers can provide U-bend heat exchanger tubes (U-tubes). In accordance with ASTM A688 / A213 standards, the bent sections of U-tubes typically require stress-relief annealing or solution annealing, followed by additional hydrostatic testing or liquid penetrant testing.
