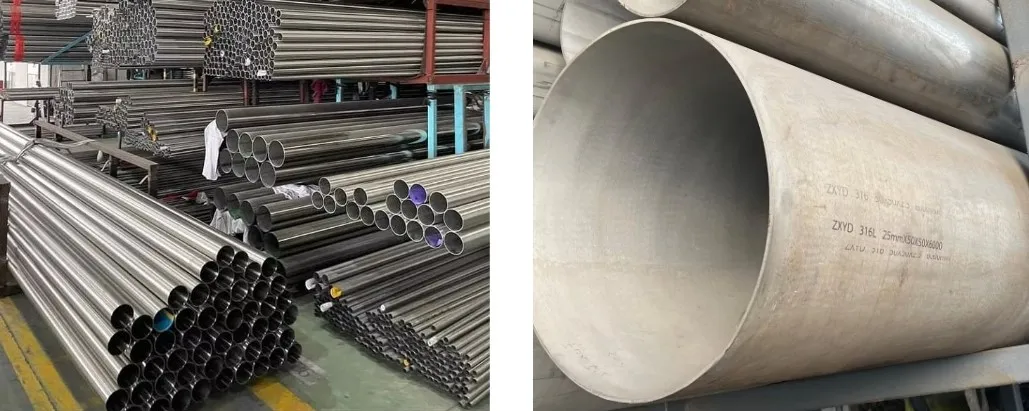

ASTM A269 Stainless Steel Heat Exchanger Tubes

ASTM A269 Stainless Steel Heat Exchanger Tubes

Standard:ASTM A269 / ASTM A269M
Product Type:Seamless Tube / Welded Tube
Material Grade:TP304, TP304L, TP316, TP316L, TP321, TP310S,
Outer Diameter :(OD)6 mm – 630 mm (0.236" – 24.8")
Wall Thickness :(WT) 0.5 mm – 40 mm (0.020" – 1.575")
Length:5.8 m, 6 m, 11.8 m, 12 m or Customized Length
Heat Treatment:Solution Annealing / Bright Annealing
Surface Finish:Pickled, Annealed & Pickled, BA (Bright Annealed), Polished, EP (Electropolished)
Certification:EN 10204 3.1 Material Test Certificate, PMI Report
Packing Method: Plastic Caps, PE Film Protection, Waterproof Paper, Steel Frame or Export Wooden Case
HS Code:730441 / 730640 (Depending on Seamless or Welded Type)
Send Inquiry
Chat Now

Supplier of ASTM A269 Stainless Steel Heat Exchanger Tubes

ASTM A269 stainless steel heat exchanger tubes are designed for general corrosion resistance and low-to-medium temperature heat transfer applications. They are widely used in heat exchangers, condensers, cooling systems, chemical processing equipment, food processing, pharmaceuticals, and the energy sector. Compared to standard stainless steel tubing, ASTM A269 tubes are subject to stricter controls regarding dimensional accuracy, surface quality, mechanical properties, and inspection requirements, making them ideal for systems requiring consistent heat transfer efficiency and a long service life.



Key factors for customers sourcing ASTM A269 heat exchanger tubes include corrosion resistance, heat transfer performance, straightness, surface finish, weld quality, dimensional tolerances, and material traceability.



GNEE supplies ASTM A269 stainless steel heat exchanger tubes in both seamless and welded forms. Common grades include TP304, TP304L, TP316, TP316L, TP321. Dimensions are customizable, with outside diameters ranging from 6 mm to 630 mm and wall thicknesses from 0.5 mm to 40 mm. For precision heat exchanger tubes, tighter tolerance controls and internal surface roughness levels of Ra ≤0.6 μm can be achieved upon request. Each shipment is accompanied by an EN 10204 3.1 Material Test Certificate (MTC), heat number identification, and complete quality records.

ASTM A269 TP304 heat exchanger tubes
ASTM A269 TP304 heat exchanger tubes
ASTM A269 TP304L SS SMLS Tube
ASTM A269 TP304L SS SMLS Tube
ASTM A269 TP310S heat exchanger tubes
ASTM A269 TP310S heat exchanger tubes
ASTM A269 TP316L Seamless stainless steel Tube
ASTM A269 TP316L Seamless stainless steel Tube
ASTM A269 TP321 heat exchanger tubes
ASTM A269 TP321 heat exchanger tubes
ASTM A269 TP316 heat exchanger tubes
ASTM A269 TP316 heat exchanger tubes

If you are sourcing or specifying these tubes, let me know:
• What specific grade and wall thickness/outer diameter do you need?
• Is this for a new heat exchanger design or a replacement/repair?

Contact now

ASTM A269 condenser tubes Specification

Chemical Composition (wt%)

Element TP304 TP304L TP316 TP316L
C ≤ 0.080 ≤ 0.035 ≤ 0.080 ≤ 0.030
Cr 18.0 – 20.0 18.0 – 20.0 16.0 – 18.0 16.0 – 18.0
Ni 8.0 – 11.0 8.0 – 13.0 10.0 – 14.0 10.0 – 15.0
Mo - - 2.00 – 3.00 2.00 – 3.00
Mn ≤ 2.00 ≤ 2.00 ≤ 2.00 ≤ 2.00
Si ≤ 0.75 ≤ 0.75 ≤ 0.75 ≤ 0.75
P ≤ 0.045 ≤ 0.045 ≤ 0.045 ≤ 0.045
S ≤ 0.030 ≤ 0.030 ≤ 0.030 ≤ 0.030
N ≤ 0.10 ≤ 0.10 ≤ 0.10 ≤ 0.10
Fe Balance Balance Balance Balance



ASTM A269 Heat ExchangerTubes Dimensions & Tolerances

OD Tolerance

OD Range (in) OD Range (mm) OD Tolerance
≤ 0.500 ≤ 12.7 ± 0.13 mm (± 0.005")
0.501 – 1.499 12.8 – 38.0 ± 0.13 mm (± 0.005")
1.500 – 3.499 38.1 – 88.9 ± 0.25 mm (± 0.010")
3.500 – 5.499 89.0 – 139.7 ± 0.38 mm (± 0.015")
5.500 – 7.999 140.0 – 203.2 ± 0.76 mm (± 0.030")
8.000 – 11.999 203.3 – 304.8 ± 1.02 mm (± 0.040")
12.000 – 14.000 304.8 – 355.6 ± 1.27 mm (± 0.050")

Wall Thickness Tolerance

Condition Tolerance
OD < 12.7 mm ± 15%
OD ≥ 12.7 mm ± 10%
Welded, t/D > 5% ± 12.5% (min) / ± 17.5% (max)
Seamless, t/D > 5% ± 12.5% (min) / ± 15.0% (max)
Seamless, t/D ≤ 5% ± 12.5% (min) / ± 22.5% (max)

Length Tolerance

OD (mm) Length Tolerance
< 38.1 +3.2 / 0 mm
≥ 38.1 +4.8 / 0 mm

Straightness

OD (mm) Max Deviation
< 12.7 1.0 mm per 300 mm (0.040"/ft)
≥ 12.7 6.35 mm per 1500 mm (1/8" per 5 ft)

Roundness (Ovality)

Parameter Tolerance
OD ovality ≤ 5% of nominal OD
Wall ovality ≤ 10% of nominal wall



ASTM A269 Tubing Pressure Rating

Collapse Pressure (PSI) OD (Inch) Working Pressure (PSI) 25% of Burst Ave. Wall inches Theoretical Burst Pressure (PSI)
4,416 0.250 3,571 0.020 14,286
3,029 0.375 2,239 0.020 8,955
8,639 0.625 10,043 0.109 40,172
2,156 0.750 1,513 0.028 6,052
7,100 0.875 7,087 0.120 28,346
5,742 1.250 5,117 0.134 20,468
1,367 1.500 918 0.035 3,671
1,434 2.000 966 0.049 3,864



ASTM A269 Welded Tube Heat Treatment

Material HeatTreatment Temperure º F(º C)
A269 316L Solution 1900(1040)
A269 304 Solution 1900 (1040)
A269 304L Solution 1900 (1040)
A269 316 Solution 1900(1040)



ASTM A269 vs. A213 vs.A249  Heat Exchanger Standards

Feature ASTM A269 (General Service) ASTM A213 (Seamless Heat Exchanger) ASTM A249 (Welded Heat Exchanger)
Primary Scope General corrosion-resistant, low/high temp tubing Seamless boiler, superheater, and heat exchanger tubes Welded boilers, superheaters, heat exchangers, and condensers
Method Seamless or Welded Seamless only Welded only
Severity of Service General / Less severe operating conditions High pressure / Elevated temperature Pressure and heat-transfer leak-tightness

If you are selecting tubing for a specific project, let me know:
• What fluid, temperature, and pressure the system operates under?
• Whether the specification requires a seamless or welded tube?

Contact now

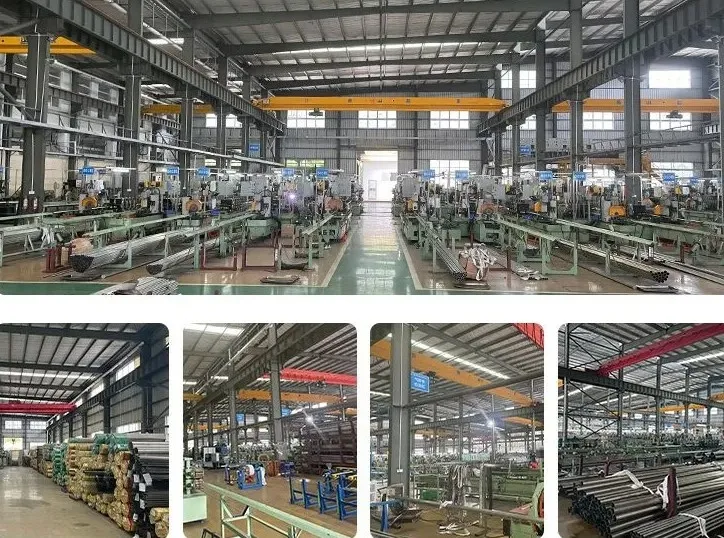

ASME SA 269 Seamless and Welded Tube Manufacturer

ASTM A269 requires a broader range of mechanical tests than A312 pipe. In addition to chemical analysis, A269 tubing must pass flaring, flanging (welded tubes), hardness, reverse flattening (welded tubes only), and either hydrostatic or non-destructive electric testing.



Flaring Test (Seamless Pipe)
One pipe is selected from each lot, and one end is tested. The pipe end is flared over a mandrel until the specified increase in outside diameter is achieved without the appearance of cracks or ruptures. This test verifies the ductility and integrity of the pipe wall.

Flanging Test (Welded Pipe)
One pipe is selected from each lot, and one end is tested. A flange is formed perpendicular to the pipe axis. The flange must be free of cracks, and both the weld zone and the base metal must exhibit sufficient ductility.

Hardness Test
Brinell or Rockwell hardness tests are performed on specimens from two pipes in each lot. For standard 300-series grades (304, 316, 321, 347), the maximum hardness is 192 HB / 90 HRB. Due to higher alloy content and nitrogen strengthening, super-austenitic grades (S31254, N08367) are permitted a maximum hardness of 220–256 HB / 96–100 HRB. Hardness testing is not required for pipes with an inside diameter of less than 1/4 inch (6.4 mm) or a wall thickness of less than 0.020 inch (0.51 mm).

For each pipe (whether seamless or welded), either a hydrostatic test or a nondestructive test (eddy current testing) may be performed, unless the purchaser specifies a particular test method. The hydrostatic test pressure is calculated using the formula P = 2St/D, where the fiber stress S must not exceed the allowable value specified in the A450/A450M standard.

Flaring Test (Seamless Pipe)
Flaring Test (Seamless Pipe)
​​Flattening Test
Flattening Test
Hardness Test
Hardness Test

Hydrostatic test

Hydrostatic test

Heat treatment

Heat treatment

Eddy current testing

Eddy current testing

 PACKAGING AND SHIPPING

ASTM A269 Stainless Steel Heat Exchanger Tubes are packed with strict export protection, including plastic caps on both ends, PE film wrapping, waterproof paper and steel frame or seaworthy wooden cases. Each bundle is labeled with grade, size, length, heat number and quantity to prevent damage and ensure full traceability during international transportation.

 PACKAGING AND SHIPPING
