ASTM A269 TP316L Seamless Bright Annealed Instrument Tubing
Shape：round
Technique：Cold Rolled
Surface Treatment：Sanded /Mirror/Hairline Brushed
Thickness：0.3-30mm
out Diameter：8-219mm
Length：5.8/6m or Custom
Stock：in Stock
Sample：Available
Transport Package：Standard Sea-Worthy Packing
ASTM A269 TP316L Seamless Instrument Tubing Supplier
GNEE is a renowned manufacturer, exporter, distributor, stockist, and supplier of stainless steel bright annealed tubes. Our products comply with national and international raw material quality standards.
ASTM A269 TP316L seamless bright annealed instrument tubes we supply are high-precision seamless pipes made from low-carbon stainless steel (C≤0.03%) of the American-standard TP316L grade. Processed through cold drawing and bright annealing (BA) techniques, these tubes feature smooth inner and outer walls and exhibit excellent corrosion resistance, making them particularly suitable for fields with stringent cleanliness requirements, such as high-purity gases, medical devices, and electronic instruments.
TP316L seamless bright annealed tubes comply with standards including ASTM A269 and ASME SA-312. Common specifications include outer diameters of 1/8''–4'' (metric 3–219 mm) and wall thicknesses of 0.035''–0.2'' (metric 0.5–5 mm), with inner wall roughness as fine as Ra≤0.05μm. These tubes are widely used in industries such as chemicals, semiconductors, and food and beverages for transporting corrosive media or high-purity fluids.
Specification
| Grade | 316 |
|---|---|
| Specifications | ASTM A269 / ASME SA269 |
| O.D. | Supplier of Welded/ ERW from 10 to 114.3 millimeter O.D. Seamless: 6 to 114.3 millimeter O.D. |
| Form | "U" Shape, Square, Pan Cake Coils, Coiled, Rectangular, Round, Hydraulic Tube. |
| End | Screwed, Beveled, Threaded, Plain |
| Length | Single Random, Double Random, Cut to length |
| Schedule Thickness Ranges | SCH XS, SCH 40, SCH 80S, SCH 5, SCH 80, SCH XXS, SCH 160, SCH10, All Schedules |
| Type | Welded | CDW | ERW | DOM | Seamless | Fabricated | CEW |
| Surface Finish | 2B, No.1, No.4, No.8 Mirror Finish |
| Sizes | 5.0 milimeter - 1219.2 milimeter |
Chemical Structure of ASTM A269 316 Tube
| GRADES | UNS | C | Mn | P | S | Si | Cr | Ni |
| ASME SA269 316 | S31600 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 |
ASTM A269 Type 316 Tubing Mechanical Properties Table
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min.º F(º C) | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| TP316 | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
ASTM A269 Standard Size Chart (Inches)
Available in lengths of 6 meters (20ft) or continuous coils.
| OD (Inch) | WT (Inch) | WT (mm) | Max Working Pressure (Estimate)* |
| 1/16" | 0.010" | 0.25 | 5000+ psi |
| 1/8" | 0.028" | 0.71 | 8500 psi |
| 1/4" | 0.035" | 0.89 | 5100 psi |
| 1/4" | 0.049" | 1.24 | 7500 psi |
| 3/8" | 0.035" | 0.89 | 3300 psi |
| 1/2" | 0.049" | 1.24 | 3500 psi |
| 1/2" | 0.065" | 1.65 | 4700 psi |
| 3/4" | 0.065" | 1.65 | 3000 psi |
ASTM A269 Gr TP316 Seamless Tube Price List
| Product | Price |
|---|---|
| ASTM A269 TP316 6MM Stainless Steel Hollow Condenser SUS Pipe | $2,250.00 - $2,570.00/ Metric Ton |
| ASTM A269 TP316/L SMLS U-BAND Tube for Heat Exchanger | $3.00/ Kilogram |
| ASTM A269 SS316 Pipes, 1/16" to 2" OD | $1.00 - $14.90/ Meter |
| ASTM A269 TP316l Small Diameter Stainless Steel Boiler Pipe | $4.65 - $5.75/ Meter |
316L BA tubing support bending?
Yes. Our ASTM A269 TP316L BA tubing is fully annealed with an elongation >35% and hardness <90 HRB, making it perfect for high-precision bending without cracking or kinking.
inspection
Flange and flare testing, reverse flattening testing, roughness testing, hydrostatic/pneumatic testing, eddy current testing (NDT), surface finish verification, dimensional inspection, material certification.
Stainless Steel 316 Tube Factory
Value-Added Services:
* **Beveling:** Provides precise pipe end beveling for field welding.
* **Threading:** Offers NPT or BSP threaded connections.
* **Cutting:** Uses band saws or laser cutting with length tolerances controlled within ±1mm.
* **Inspection:** Supports PMI spectral testing, ultrasonic testing (UT), eddy current testing (ET), and third-party inspection.

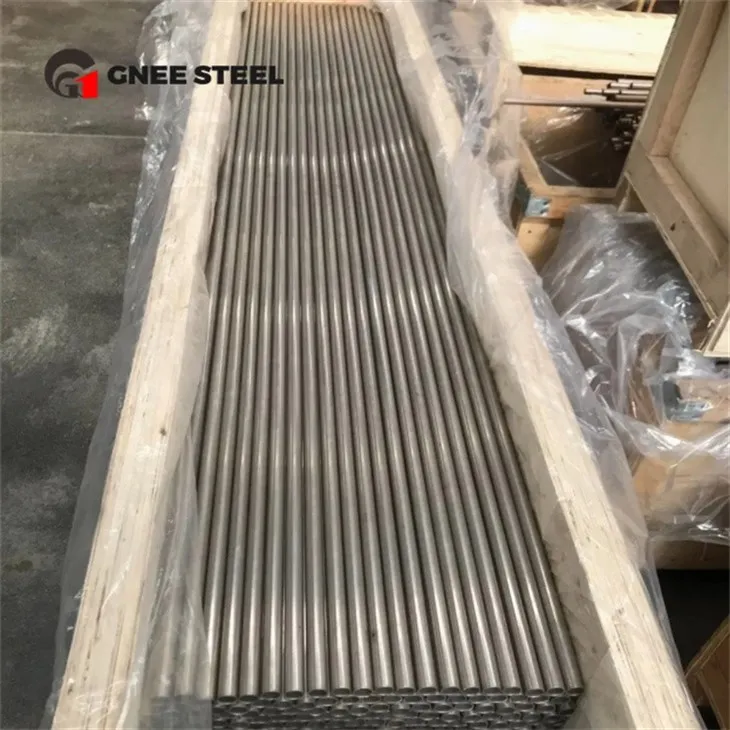

Packaging and Marking
Packaging shall be in bundles or laminated wooden crates, wrapped in plastic, and appropriate protective measures shall be taken to ensure seaworthiness for transport or as required.
Marking shall comply with the provisions of A1016/A1016M specifications and shall include whether the pipes are hot-worked or cold-worked, including but not limited to: standard, grade, size, furnace number, and batch number.
