Duplex 2205 Seamless Stainless Steel Pipe
Type：Seamless
Material：Stainless Steel
Standard：ASTM/AISI/GB/JIS/DIN/En
Shape：Round.Square.Rectangle
Transport Package：Wooden Box
What is Duplex 2205 Seamless Stainless Steel Pipe?
Duplex 2205 stainless steel pipe (UNS S32205, EN 1.4462) is a high-performance seamless stainless steel pipe with austenite + ferrite dual-phase structure. It is precisely formed by cold drawing/hot rolling without weld defects. It combines the toughness of austenitic steel and the high strength of ferritic steel. It is particularly good at dealing with high chloride ion (Cl⁻), high pressure, and alternating load scenarios. It is widely used in harsh fields such as marine engineering, chemical industry, and energy, and implements international standards such as ASTM A790 and EN 10216-5.

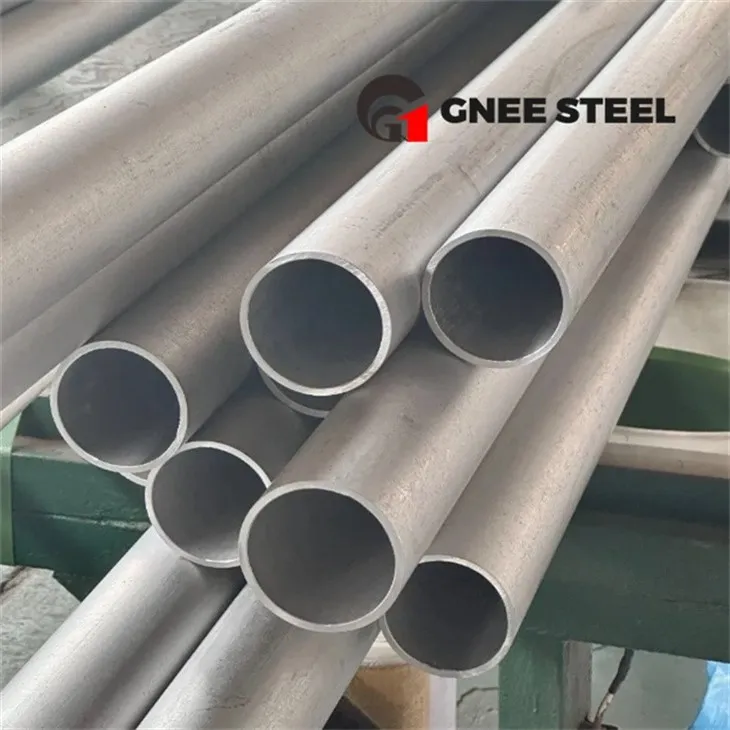

Duplex 2205 Stainless steel round tube
Advantages of Duplex 2205 stainless steel cold finished pipe
What is the difference between duplex 2205 and 316L stainless steel pipes?
Core differences: Strength: 2205 yield strength 450 MPa (316L only 205 MPa), wall thickness can be reduced by 30% in high pressure scenarios; Corrosion resistance: 2205 is resistant to Cl⁻ up to 10,000ppm (316L is 5,000ppm), especially suitable for high Cl⁻ environments such as seawater and brine.
Can duplex 2205 seamless pipes be welded? Does it need heat treatment?
It can be welded, and ER2209 welding wire is recommended, with heat input ≤1.5kJ/mm. No post-weld heat treatment is required, but the interlayer temperature needs to be controlled to <150℃ to avoid imbalance of duplex structure.
Reasons to choose GNEE:
GNEE has ISO9001-2000 quality management system and ISO14001 environmental protection system. It has formed a business mainly based on carbon steel and stainless steel pipes, covering pipes, profiles, plates and other products. It is exported to more than 60 countries and regions including Russia, Canada, India, Brazil, Southeast Asia, etc.
If you would like to know more about our company or our products, please feel free to contact us.
2205 Duplex Stainless Seamless Steel Pipe Specification
Chemical Composition of Duplex 2205 Seamless steel Pipe
|
C |
N |
P |
Si |
Mn |
Mo |
Fe |
Cr |
S |
Ni |
|
1.0 |
0.03 |
0.02 |
2.0 |
3.0 - 3.5 |
22.0 - 23.0 |
0.03 |
4.5 - 6.5 |
0.14 - 0.2 |
Bal |
Mechanical Properties of Duplex 2205 Seamless Pipe
|
Pipe Density |
Pipe Melting Point |
Yield Strength (0.2% Offset) |
2205 Duplex SS Pipe Tensile Strength |
Elongation |
|
7.8 g/cm3 |
1350 °C (2460 °F) |
Psi - 80000, MPa - 550 |
Psi - 116000, MPa - 800 |
15 |
Stainless Steel 2205 Seamless Pipe Exporters
GNEE PACKAGING AND SHIPPING
GNEE participated in Vietnam exhibition
