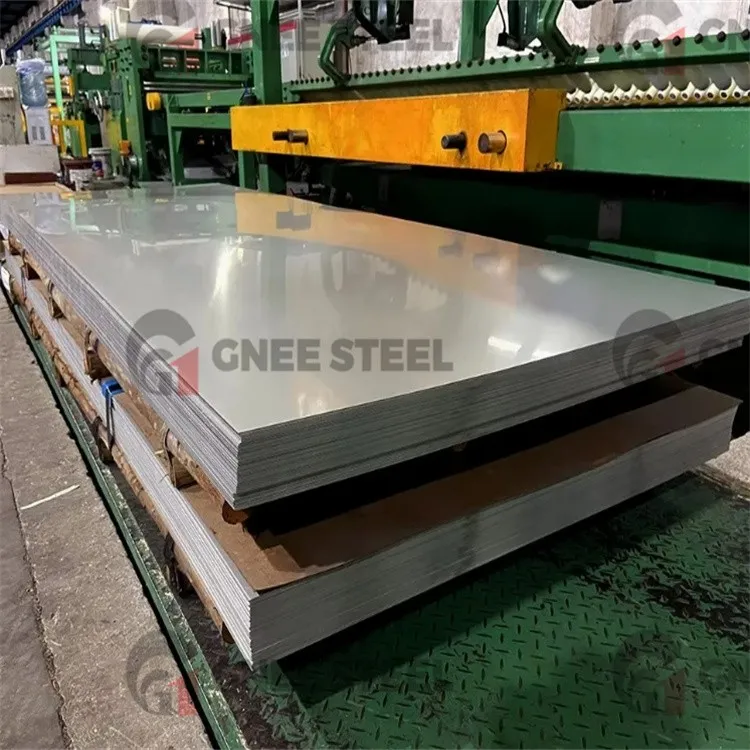

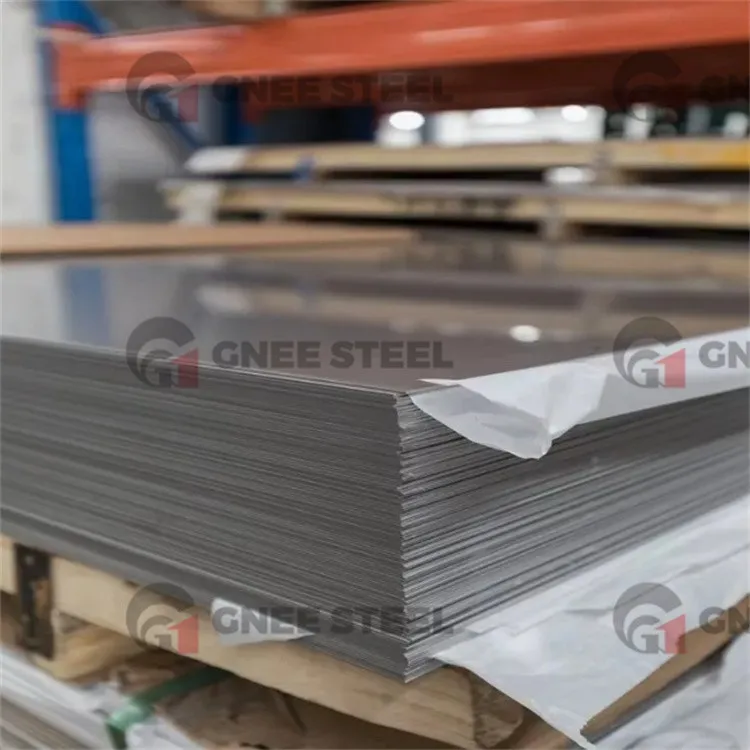

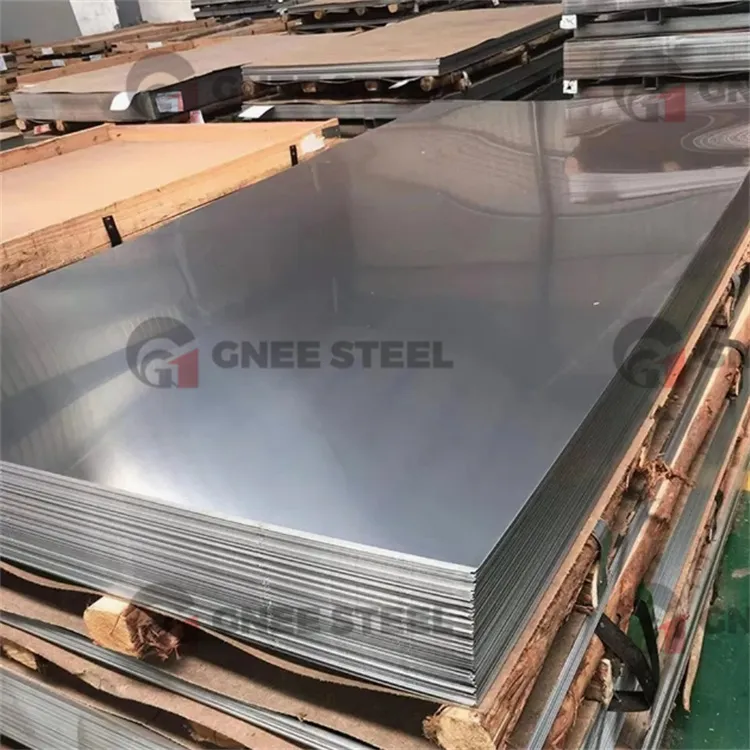

316 Stainless Steel Sheets

316 Stainless Steel Sheets

SUS316 stainless steel plate is widely used in marine, chemical, medical and food processing fields due to its corrosion resistance, high temperature resistance and excellent mechanical properties. It has a density of 7.8g/cm³, a melting point of 1375~1450℃, and a tensile strength of 500-700MPa.
Send Inquiry
Chat Now

Product Description



AISI 316 stainless steel plate contains Cr16.5%-18.5%, Ni8%-13%, high strength and corrosion resistance, can be processed and hot-formed, can be welded, and is used in pharmaceutical, food, chemical and other industries and high-pressure containers, refrigeration equipment, etc. Reference standards ASTM A-240, ASME SA -240.

316 stainless steel cold-rolled plate has excellent work hardening (non-magnetic); excellent high temperature strength, high temperature resistance can reach 1200-1300 degrees. It is non-magnetic in solid solution state; the appearance of cold-rolled products has good gloss, and the price is higher than 304 stainless steel plate.

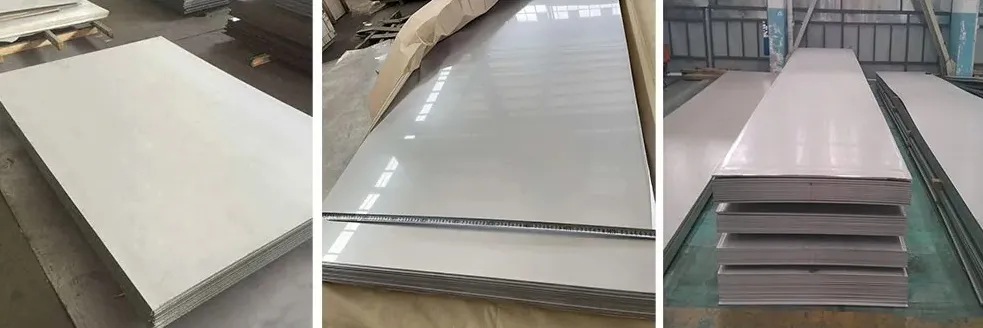

AISI 316 stainless steel plate



AISI 316 stainless steel plate



316 Stainless Steel Sheet Specifications



Material Grade

316 (UNS S31600), 316L (UNS S31603)

Thickness Range

0.5mm–100mm (0.02"–4")

Width

1000mm, 1219mm, 1500mm (Standard) / Custom widths up to 2000mm

Length

2438mm, 3048mm (Standard) / Custom lengths up to 6000mm

Surface Finish

- No.1 (Hot-rolled, annealed)
- 2B (Cold-rolled, bright annealed)
- BA (Mirror-like finish)
- HL (Hairline brushed)
- Embossed/Etched (Custom patterns)

Standards

- ASTM: A240, A480
- EN: 1.4401 (316), 1.4404 (316L)
- JIS: SUS316, SUS316L

Density

8.0 g/cm³

Hardness

≤217 HB (Annealed condition)

Tolerance

- Thickness: ±5% (ASTM A480)
- Width/Length: ±2 mm (Customizable)



What Is The Difference Between 316L And 316 Stainless Steel?



316L is an ultra-low carbon stainless steel with a carbon content of less than 0.03% and high molybdenum and nickel content; while 316 stainless steel has a carbon content of about 0.08% and a high chromium content. 316L has better resistance to carbide precipitation and can be used in the range of 800-1575 degrees; 316 stainless steel is more suitable for intermittent use below 1600 degrees or continuous use below 1700 degrees, but avoid the range of 800-1575 degrees.



316 Stainless Steel Hot-Rolled Plate Supplier



GNEE factory has an annual production capacity of more than 80,000 tons and supports small batch trial orders (1-5 tons).It has passed ISO 9001/14001/45001, FDA, ISO 13485, and classification society certification (DNV, Lloyd's). Spot stock 7-15 days, custom orders 4-6 weeks.

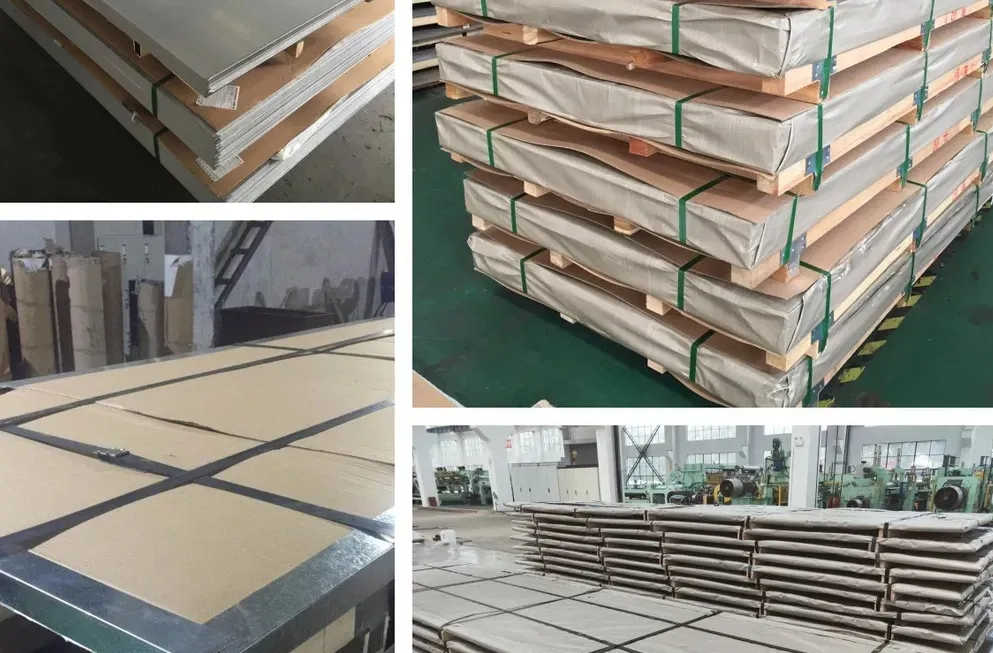

316 Stainless Steel Sheet for sale



316 Stainless Steel Sheet for sale

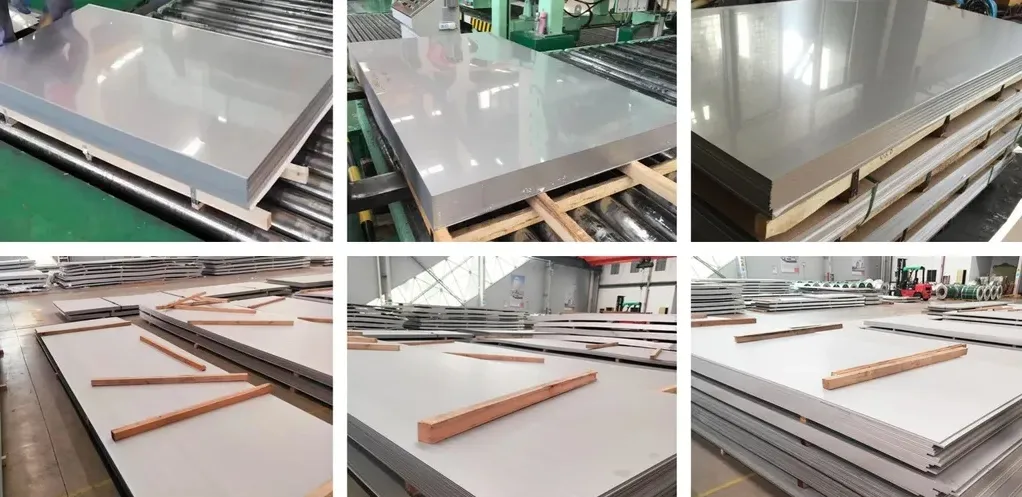

316 / 316L Stainless Steel Sheet Supplier



316 316L Stainless Steel Sheet Supplier
