439 2D Surface Stainless Steel Coil for welded pipe

what is 439 2D Surface Stainless Steel Coil?

439 2D Surface Stainless Steel Coil is a titanium-stabilized, low-carbon ferritic stainless steel cold-rolled coil. It is developed by reducing the carbon content and adding titanium based on standard 430 stainless steel.



Through the process of cold rolling, annealing, and pickling without subsequent skin-pass rolling, the finished product exhibits a uniform matte texture and a consistently rough surface. It is typically used as a base material for subsequent deep processing, such as brushing, polishing, and tube manufacturing. The 2D finish is particularly well-suited for welded pipe production, as it enhances weld seam adhesion and improves lubricant retention during processing. Furthermore, it delivers excellent deep drawing and bending performance, meeting the processing requirements for pipe manufacturing and component stamping.

439 Stainless Steel Coil Manufacturing Process



We can provide 439 cold-rolled stainless steel coils with a thickness of 0.1mm to 3.0mm and a width of 10mm to 1550mm. They can also be slit into narrow strips upon request to fit different size requirements for welded pipe production.



What is the difference between 439 stainless steel coil and 304 ?

The corrosion resistance of 439 stainless steel coil outperforms that of 430 and 200 series stainless steel, and is comparable to 304 stainless steel in terms of strength and corrosion resistance. Its pitting resistance in chloride environments is even superior to that of 304, and it can withstand intermittent high temperatures up to 850°C for long-term use.



439 stainless steel coil specifications

Product Name	439 stainless steel coil
Grades	439 /EN 1.4510 /UNS S43035
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard as customer's requirements
Thickness	0.02mm-6.0mm
Width	1.0mm-1500mm
Edge	Slit/Mill
Quantity Tolerance	±10%
Paper Core Internal Diameter	Ø500mm paper core, special internal diameter core and without paper core on customer request
Surface Finish	NO.1/2B/2D/BA/HL/Brushed/6K/8K Mirror,etc
Packaging	Wooden Pallet/Wooden Case
Payment Terms	30% TT deposit and 70% balance before shipment, 100% LC at sight
Delivery Time	5-7 working days
MOQ	200Kgs
Shipping Port	Shanghai/Ningbo port



UNS S43035 Chemical Composition (wt%, Maximum unless range is specified)

Standard	C	Si	Mn	P ≤	S ≤	Cr	Ni	Ti	N
ASTM	0.03	≤1.00	≤1.00	0.04	0.03	17-19	≤0.50	0.2+4(C+N)-1.10	≤0.04
DIN	0.05	≤1.00	0.00	0.04	0.015	16-18	-	4(C+N)-0.80	-



Mechanical Properties (at Room Temperature)

Grade	Condition	Yield Strength 0.2% Offset (MPa)	Tensile Strength (MPa)	Elongation in 50mm (%)	Hardness (Rockwell B)	Cold Bend (Angle)
439	Annealed	≥ 205	≥ 415	≥ 22	≤ 89	180°



What are the most common applications for 439 2D coils?

They are primarily used in the production of welded pipes for automotive exhaust systems, mufflers, and exhaust manifolds. They are also used in the manufacture of welded pipes for water treatment equipment, building decorative structures, and high-temperature components for home appliances (heat exchangers for water heaters, inner drums for washing machines), among other applications.



Is 439 stainless steel magnetic?

Yes. Like all 400-series ferritic stainless steels, 439 is strongly attracted to magnets. This is a property of its crystal structure and does not indicate poor quality or lack of corrosion resistance.



439 Stainless Steel Coil price per kg

The price for 439 stainless steel coil typically ranges between $1.95 and $4.21 per kilogram, depending on the order volume, thickness, and surface finish. Smaller or customized retail quantities often command higher per-kg premiums, whereas bulk wholesale orders of 3+ tonnes trend toward the lower end.

Click to get the price of 439 stainless steel coil



439 2D Surface Stainless Steel Coil Supplier

Our annealing furnace employs full hydrogen protection, ensuring a uniform matte finish and micro-roughness on the 2D surface. Equipped with a 20-roll Sendzimir mill, it achieves extremely high thickness tolerances, ensuring smooth material flow on automated welding lines and preventing weld failures due to uneven thickness.

439 Stainless Steel 2D Surface Coil in Stock

Grade	Actual Thickness (mm)	Width (mm)	Weight (tons)	Class	Nominal Thickness (mm)	Coil No.	Status	Actual Width (mm)
439/2D	1.123	1250	8.749	M1	1.2	25C18060D	Full Coil	1255
439/2D	1.115	1250	8.527	M1	1.2	25C18050D	Full Coil	1256
439/2D	1.115	1250	8.570	M1	1.2	25C18050C	Full Coil	1256
439/2D	1.123	1250	8.968	M1	1.2	25C18060C	Full Coil	1255
439/2D	1.123	1250	8.750	M1	1.2	26102870C	Full Coil	1252
439/2D	1.123	1250	8.848	M1	1.2	26102870D	Full Coil	1252
439/2D	0.921	1250	7.482	M1	1.0	26114610D	Full Coil	1260
439/2D	0.921	1250	7.522	M1	1.0	26114610C	Full Coil	1260
439/2D	0.921	1250	7.488	M1	1.0	26114610E	Full Coil	1260
439/2D	0.921	1250	8.909	M1	1.0	26114720C	Full Coil	1251
439/2D	0.921	1250	8.715	M1	1.0	26114720D	Full Coil	1251
439M/2D	1.924	1250	8.450	M1	2.0	26419740C	Full Coil	1256



Click to get a free sample

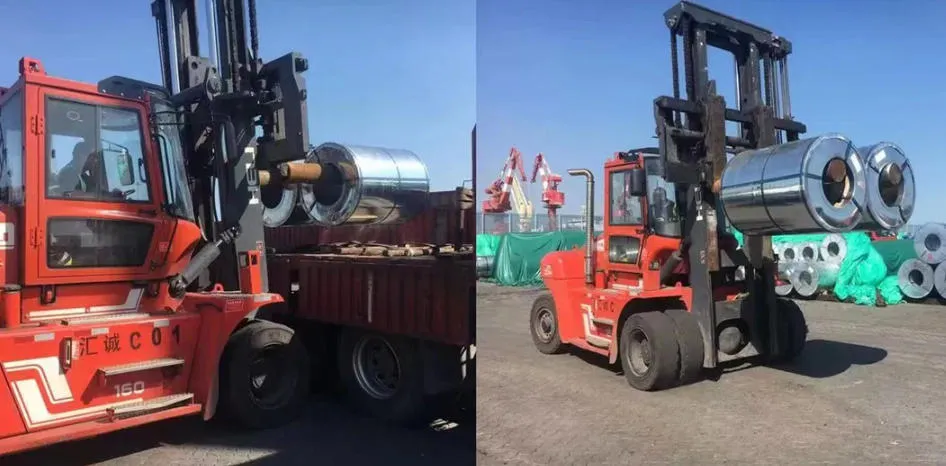

Lead Time & Delivery:

In-Stock Inventory: We maintain a long-term stock of base material for the popular 439 2D specifications (0.5mm - 2.5mm). In-stock products can be shipped within 3-7 days.

Customized Production: Leveraging a strong supply chain, the production cycle for customized specifications is typically controlled within 25-45 days.

We are located in major ports (such as Shanghai and Ningbo), providing efficient land transportation services directly from the factory to the container terminal, and offering one-stop ocean freight forwarding solutions.





Professional Export Packaging

Addressing the susceptibility of 2D matte finishes to moisture and the tendency of 400 series coils to develop surface rust, we implement a "five-layer protection" standard for ocean shipping:

VCI vapor phase rust inhibitor wrapping

Waterproof plastic film covering

Metal protective shell: A galvanized iron or stainless steel protective layer is added to the outer perimeter of the coil to prevent mechanical impact.

All-around metal corner guards: Special reinforcement of metal corner guards on the inner and outer edges of the coil.

Fumigated wooden pallets (IPPC) or iron pallets: Two packaging options are provided: "Eye to Side" or "Eye to Sky," ensuring stability and preventing collapse during navigation and loading/unloading.

Automotive Exhaust System Project
Destination: Rayong Province, Thailand
Specifications: 439 2D, Thickness 1.2mm / 1.5mm, Width 1219mm
End Application: Muffler housing and internal partition for a well-known automotive brand.
