ASTM A268 Stainless Steel Pipe for high temperature applications

ASTM A268 Stainless Steel Pipe for high temperature applications

Name:ASTM A268 Stainless Steel Seamless pipe
Standard: ASTM A268/A268M-2022
Grade: TP405, TP410, TP429, TP430, TP443, TP446-1, TP446-2, TP409
Type:Seamless Pipe
Wall Thickness;0.2-40mm
Technique:Hot Rolled/Cold Drawn
Shape:Round/Customized
Process:Polished/Solution Treatment
End:Plain End/Bevel End
Test:BV, SGS Is Available
Stock:Size Can Customized
Send Inquiry
Chat Now

what is ASTM A268 Stainless Steel pipe ?

ASTM A268/A268M-10 standard covers various ferritic and martensitic stainless steel tubes (including both seamless and welded types) intended for general corrosion-resistant and high-temperature service; it specifies technical requirements, test methods, inspection rules, as well as requirements for marking, packaging, transportation, and storage.


The standard encompasses a range of commonly used grades, such as TP409 (general corrosion resistance and exhaust systems), TP439 (high-temperature oxidation resistance and mufflers), TP444/TP446 (resistance to high-temperature scaling and cyclic oxidation, withstanding temperatures up to 1050°C–1100°C), and the high-strength martensitic grade TP410; these materials are frequently used to manufacture piping, valves, vessels, and other equipment for the transport and storage of corrosive media.

ASTM A268 TP409 Heat-Resistant Stainless Steel Tube
ASTM A268 TP409 Heat-Resistant Stainless Steel Tube
ASTM A268 TP410 Stainless Steel SMLS Tube
ASTM A268 TP410 Stainless Steel SMLS Tube
ASTM A268 TP466-1 Stainless Steel Tube
ASTM A268 TP466-1 Stainless Steel Tube



We can reliably supply the full range of ASTM A268 seamless and welded stainless steel tubes, with outside diameters ranging from 6.0 mm to 610.0 mm and wall thicknesses from 0.5 mm to 25.0 mm. Available surface finishes include pickled, 2B cold-rolled, bright annealed (BA), and brushed finishes with surface roughness Ra ≤ 0.8 μm. Each shipment is supplied with an EN 10204 3.1 Material Test Certificate (MTC), and third-party inspections by SGS, BV, or TÜV (EN 10204 3.2) are available upon request.



The reference ex-works price for TP409 seamless tubes is approximately USD 3.0–6.0/kg, depending on specifications and surface finish, while TP410 tubes are typically around USD 2.10–3.20/kg. We support FCL/LCL sea freight shipments and customized processing services, including cutting, beveling, and tube bending, providing one-stop procurement solutions for high-temperature applications such as automotive exhaust systems, industrial furnaces, heat exchangers, and flue gas heat recovery equipment.

Get a Quote Now

ASME SA268 Seamless Tubing Specifcation

1. Covered Grades & Cross-References

Grade UNS No. EN / DIN JIS Structure Key Stabilizer
TP409 S40900 1.4512 SUS 409 Ferritic Ti
TP409L S40908 1.4512 SUS 409L Ferritic (low C) Ti
TP410 S41000 1.4006 SUS 410 Martensitic - (heat-treatable)
TP430 S43000 1.4016 SUS 430 Ferritic -
TP439 S43035 1.4510 SUS 439 Ferritic Al + Ti
TP444 S44400 1.4509 SUS 444 Ferritic Nb
TP446-1 S44600 1.4762 SUS 446 Ferritic (high Cr) -
TP446-2 S44600 1.4762 SUS 446 Ferritic (high Cr, higher C) -
XM-27 S44700 1.4801 - Ferritic (very high Cr) -
XM-33 S44800 1.4877 - Ferritic (very high Cr) -



 Chemical Composition (wt %)

Element TP409 TP409L TP410 TP430 TP439 TP444 TP446-1 TP446-2
C, max 0.08 0.030 0.15 0.12 0.07 0.025 0.03 0.20
Si, max 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
Mn, max 1.00 1.00 1.00 1.00 1.00 1.00 1.50 1.50
P, max 0.040 0.040 0.040 0.040 0.040 0.040 0.040 0.040
S, max 0.030 0.030 0.030 0.030 0.030 0.030 0.030 0.030
Ni, max 0.50 0.50 0.50 0.50 0.50 1.00 0.50 0.50
Cr 10.5–11.7 10.5–11.7 11.5–13.5 16.0–18.0 17.0–19.0 17.5–19.5 23.0–25.0 23.0–27.0
Ti 6×C min; 0.75 max 6×C min; 0.75 max - - 0.20+4(C+N) min; 1.10 max - - -
Al - - - - 0.15 - - -
Nb - - - - - 6×C min; 1.00 max - -
Mo - - - - - 0.50 max - -



Mechanical Properties (Annealed / Solution-Annealed Condition)

Property TP409 TP409L TP410 TP430 TP439 TP444 TP446-1 TP446-2
Tensile, min (MPa [ksi]) 380 [55] 380 [55] 515 [75] 415 [60] 415 [60] 515 [75] 515 [75] 550 [80]
Yield 0.2 %, min (MPa [ksi]) 170 [25] 170 [25] 205 [30] 170 [25] 205 [30] 205 [30] 205 [30] 240 [35]
Elongation, min (%) 20 20 20 20 20 20 20 20
Hardness, max (HBW) 207 207 217 207 207 207 217 217
Hardness, max (HRB) 95 95 100 95 95 95 100 100



High-Temperature Performance

Grade Max Continuous Service Temp
TP409 / TP409L ~600 °C
TP410 ~700 °C (1 292 °F)
TP430 ~816 °C (1 500 °F)
TP439 ~870 °C (1 600 °F)
TP444 ~870 °C (1 600 °F)
TP446-1 ~1 080 °C (1 976 °F)
TP446-2 ~1 080 °C (1 976 °F)
XM-27 ~1 100 °C
XM-33 ~1 100 °C



Dimensional Range & Tolerances

Parameter Range
OD 6.4 – 203.2 mm (¼″ – 8″)
Wall thickness 0.4 – 8.0 mm (light wall < 1.2 mm avg)
Length 3 000 – 12 000 mm (up to 25 m on request)
OD tolerance (≤ 12.7 mm) ±0.13 mm
OD tolerance (12.7 – 203.2 mm) ±0.25 – ±0.76 mm
Wall tolerance ±10 – 15 % (per OD band)



Grade Selection Guide for High-Temperature Applications

Application Recommended Grade Rationale
Automotive exhaust (OEM) TP409 / TP409L Lowest cost; adequate to 600 °C
Aftermarket / performance exhaust TP439 / TP444 Better scale spalling resistance, 870 °C
Industrial furnace internals TP446-1 / TP446-2 Outstanding oxidation to 1 080 °C
Heat exchangers (flue gas) TP439 / TP444 Balance of oxidation + formability
High-strength structural at temp TP410 Only heat-treatable A268 grade; 700 °C
Extreme oxidation (kiln, annealing) XM-27 / XM-33 25–29 % Cr; 1 100 °C continuous

To help narrow down the right pipe specification, could you share:
• What is your target operating temperature and environment (e.g., sulfurous, steam, high oxidation)?
• Do you need seamless or welded pipe?
• What outer diameter (OD) and wall thickness (schedule) do you require?

Contact now

Quality Assurance

We implement rigorous quality control for ASTM A268 steel pipes. Our comprehensive process includes spectral analysis of chemical composition, ultrasonic testing (UT), eddy current testing, and hydrostatic testing to ensure tensile strength and ductility fully meet standards. Mechanical properties under high-temperature conditions are verified by third-party laboratories, eliminating any risk of brittleness.

Dimensional inspection
Dimensional inspection

Hydrostatic testing
Hydrostatic testing
Eddy current testing
Eddy current testing
product-655-470
SS 409 Tube PMI
product-759-639
SS 410 Tube PMI
product-523-372
SS 446 Tube PMI

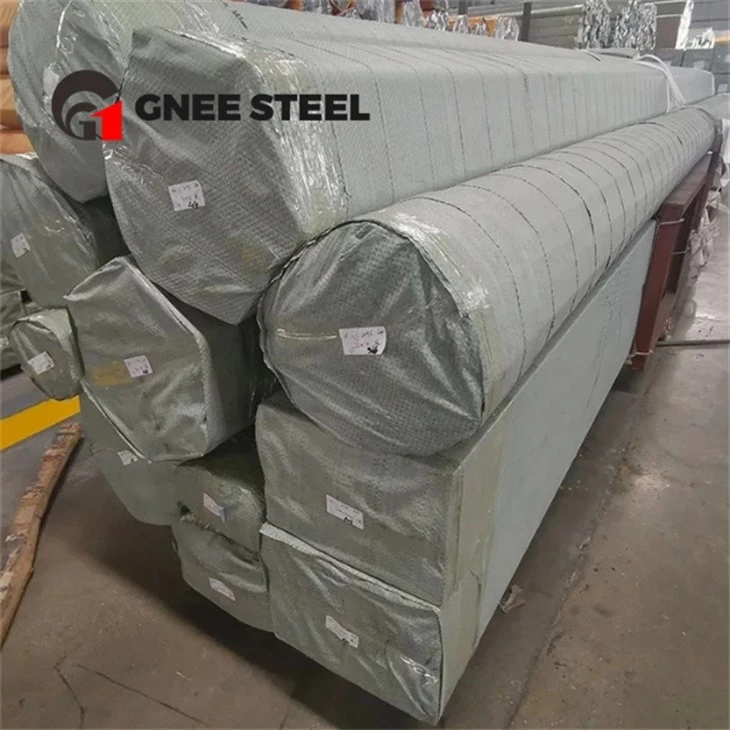

Packaging and Delivery

For packaging, we employ a reinforced, moisture-proof, and anti-rust solution designed for maritime transport; pipes are packed in wooden crates and sealed with anti-rust paper and stretch wrap to effectively block salt spray and moisture. We maintain regular stock for standard specifications to ensure shipment within as little as 7–15 days. For special grades or custom diameters, we provide detailed production schedules, ensuring a delivery delay rate of less than 1%.

Wooden crate packaging
Wooden crate packaging

Hexagonal bundling
Hexagonal bundling

FAQ

What is the maximum operating temperature for TP446 steel pipe?
TP446 is one of the grades with the best high-temperature resistance within the ASTM A268 standard; due to its high chromium content (23–27%), it can operate continuously in air at temperatures up to approximately 1100°C. However, it should be noted that its mechanical strength (creep resistance) drops significantly at extremely high temperatures.



Does ASTM A268 steel pipe experience "475°C embrittlement" at high temperatures?
Yes, ferritic stainless steels undergo embrittlement during prolonged operation in the 400°C–550°C range. Mitigation strategies include avoiding long-term operation in this temperature range, conducting detailed thermal analysis during design, selecting grades with better stability, and minimizing frequent start-stop cycles.



Does the weld area become brittle when welding ASTM A268 high-temperature pipe?
Yes. Toughness decreases because grain growth easily occurs in the heat-affected zone (HAZ). Key considerations: Welding heat input must be strictly controlled, and necessary post-weld heat treatment (PWHT) must be performed according to the specific grade to restore ductility in the weld zone.



Can ASTM A268 steel pipe be used for high-temperature piping in pressure vessels?
You must refer to the ASME BPVC standards. Certain A268 grades are listed in the ASME SA-268 specification and may be used within specific temperature and pressure limits. If the application involves boilers or pressure vessels, you must verify whether the grade is included in the ASME "Allowable Stress Tables."



How do I determine whether A268 or A312 (austenitic) is suitable for my operating conditions?
Choose A268 if: The operating environment contains sulfides, there are significant temperature fluctuations (requiring a low coefficient of thermal expansion), cost-efficiency is a priority (it is nickel-free), or the equipment does not need to withstand extremely high mechanical stress. Choose A312 (304/316/310S) if the operating conditions require extremely high creep strength, excellent weldability, or the retention of good toughness at extreme temperatures.
