ASTM A270 TP321 Stainless Precision Steel Pipe
Technique：Cold Drawn
Material：Stainless Steel
Surface Treatment：Polished
Section Shape：Round
Sample：Free
Package：Seaworthy Package
Delivery Date：1-15 Days
Certificate：ISO9001
Transport Package：Seaworthy Package
Specification：Customized
What is ASTM A270 TP321 Stainless precision steel pipe?
ASTM A270 TP321 is a titanium stabilized austenitic stainless steel precision steel pipe that meets the ASTM A270 sanitary pipe standard. It has an outer diameter tolerance of ±0.03mm and an inner wall roughness of Ra≤0.8μm. It is designed for high-temperature sterilization, semiconductor high-temperature processes, food baking and other scenes with extremely high requirements for temperature resistance, cleanliness and welding reliability. It solves the problems of intergranular corrosion and dimensional deviation of traditional stainless steel pipes at high temperatures.

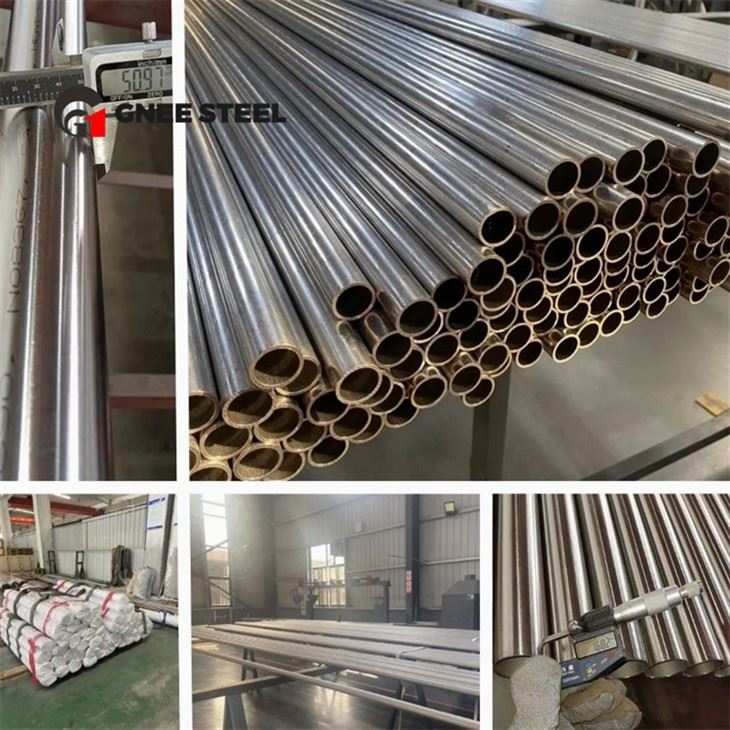

ASTM A270 TP321 Polished Stainless Steel Pipe
Advantages of ASTM A270 TP321 Ultra-Clean Pipe
What are the main differences between TP321 and TP304 stainless steel sanitary pipes?
TP321 contains titanium (Ti≥0.4%), is resistant to high-temperature intergranular corrosion, and is suitable for 400-850℃; TP304 does not contain titanium, is prone to long-term high-temperature intergranular corrosion, and has a temperature resistance of ≤650℃.
TP321 does not require annealing after welding, while TP304 requires solution treatment, which increases construction efficiency by 30%.
What is the maximum operating temperature of TP321 stainless steel seamless pipe?
The long-term operating temperature is ≤850℃ (oxidation weight gain is controllable), and the short-term peak temperature can reach 900℃, which is better than 304 (≤650℃) and 316L (≤750℃).
How to verify the titanium content of TP321?
Require the supplier to provide a spectral analysis report, focusing on whether the Ti element is ≥0.4%, or check the UNS number as S32100 (TP321 corresponds to UNS number).
Reasons to choose GNEE:
GNEE is a supplier with ASTM A270 certification, titanium content test report, high temperature performance certificate and cold drawing precision processing capabilities, providing reliable guarantee for high temperature clean production.
If any question, please contact with us freely by E-mail or Telephone.
321 Sanitary Stainless Steel Tube Specification
| Standard | ASTM, GB, JIS, DIN, EN, AISI |
| Material Grade | TP304 TP304L TP316 TP316L TP321 |
| Outer Diameter | Seamless Pipe: 4mm-812.80mm |
| Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm), | |
| Thickness | Seamless Pipe: 0.5mm - 60mm |
| Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm) | |
| Length | 5.8-6.1 m or as customers' request |
| Tolerance | Acording to the Standard. |
| Surface | 180G, 320G, 400G Satin / Hairline |
| 400G Mirror finish | |
| Certificate | ISO9001-2008,ASME, PED |
| Delivery Time | 30-60Days, Depends on quantity |
Stainless Steel 321 Seamless Pipe Exporters
GNEE PACKAGING AND SHIPPING
GNEE participated in Vietnam exhibition
Hot Tags: astm a270 tp321 stainless precision steel pipe, China astm a270 tp321 stainless precision steel pipe manufacturers, suppliers, factory, 316 316L Stainless Steel Capillary Pipe, stainless steel seamless pipe hydrostatic testing, 304 304L Capillary Stainless Steel Pipe, stainless steel seamless pipe for common use, ASTM A269 TP316L SS Seamless Pipe, stainless steel seamless pipe bending testing
