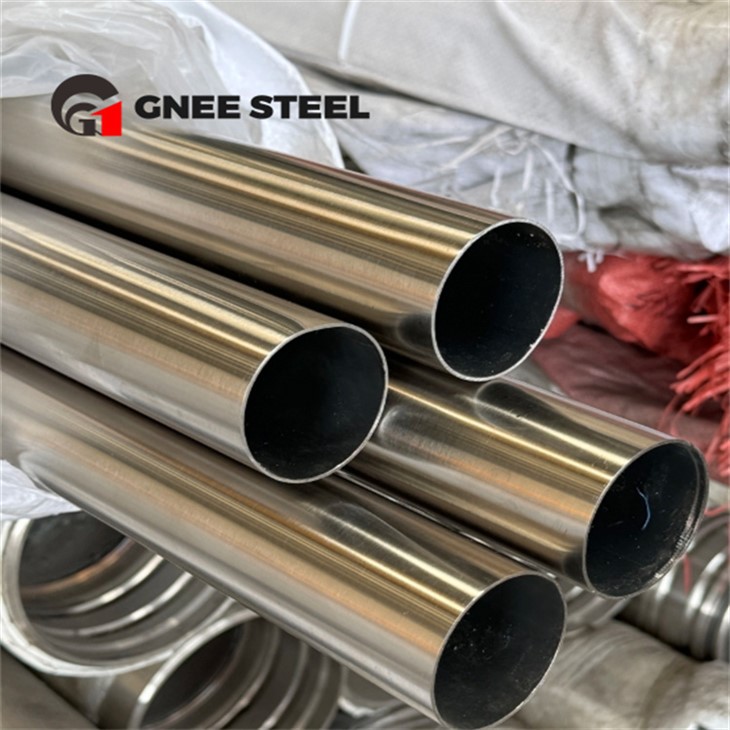

Stainless Steel 316L Electropolished Polished Pipes
Technique：Cold Rolled
Material：Stainless Steel
Surface Treatment：Polished
Section Shape:Round
Length:6m or as Required
Standard:GB, ASTM, AISI, JIS, DIN, En, GOST
Grade:300 Series,
Transport Package:Plastic Wrapping, Bundling, Wooden Case
Stainless Steel 316L Electropolished Polished Pipes Introduction
316L stainless steel electropolished tube (UNS S31603) is an ultra-low carbon austenitic stainless steel tube. The surface finish is improved to Ra≤0.2μm through the electro-polishing (EP) process. It is especially suitable for high-demand industries such as food, pharmaceuticals, and semiconductors.
316L Electropolished (EP) Tubing
Advantages of 316L stainless steel Mechanical polishing tube
316L ultra-low carbon high-molybdenum stainless steel tube has excellent corrosion resistance and can withstand harsh environments such as acid/alkali/seawater; the electropolishing process achieves a mirror surface of Ra≤0.2μm, which meets the requirements of the food/pharmaceutical industry.
316L high-cleanliness tube; high temperature resistance up to 1575℃, still maintains high strength at high temperatures; easy to cold/hot process forming, excellent welding performance, the corrosion resistance of the weld is consistent with that of the parent material; has both high tensile strength (≥485MPa) and fatigue resistance, suitable for high-pressure fluid transportation scenarios.
Why Choose GNEE
GNEE achieves high-precision dimensions (tolerance ±0.05mm) and mirror finish (Ra≤0.2μm), and supports the production of micro capillaries (inner diameter 0.5-6mm).
100% non-destructive testing: ultrasonic flaw detection (UT) + eddy current testing (ET) to ensure there are no defects such as cracks and inclusions.
Third-party certification: ASME BPVC, ISO 9001, FDA, 3A health standards, and EN 10204 3.1/3.2 test reports are provided.
316L Mirror polished stainless steel pipee pecifications
| Standard Specification | ASTM A312 / ASTM SA312 Electropolished Stainless Steel Tubing |
| ANSI Specification | ANSI/ASME B36.10M, ANSI/ASME B36.19M |
| Pipe End Abbreviations | Treaded Both Ends, Bevel small end, Treaded On End, Beveled One End, Beveled end, Plain Both Ends, Bevel large end, Bevel one end, Plain One End, Bevel both ends |
| Available Shapes and Types | Hydraulic, Square, Rectangle, Round, Hex, Honed |
| Manufacturing Type | Seamless, Fabricated, CDW, 100% X Ray Welded, Welded, ERW |
| Surface Finish | No.1, 2B, No.4, No.8 Mirror Finish |
| Various Technical Delivery Conditions Types | Cold Drawn, Annealed and Pickled, Polished, Bright Annealed |
| Schedule | SCH 80, SCH 5, SCH10, SCH 160, SCH XXS, SCH 40, SCH 80S, SCH XS, |
Electropolished Tube Surface Finish
| Surface Finish | Exterbal Surface(OD) | Internal Surface(ID) | |||
| Roughness Average(RA) | Roughness Average(RA) | ||||
| μ inch | μm | μ inch | μm | ||
| EP | Electro Polish | 32 | 0.8 | 15,10,7,5 | 0.38,0.25,0.20;0.13 |
316L Electropolished Tube Factory
Customer visit
Packaging of stainless steel 316L Seamless Pipe
