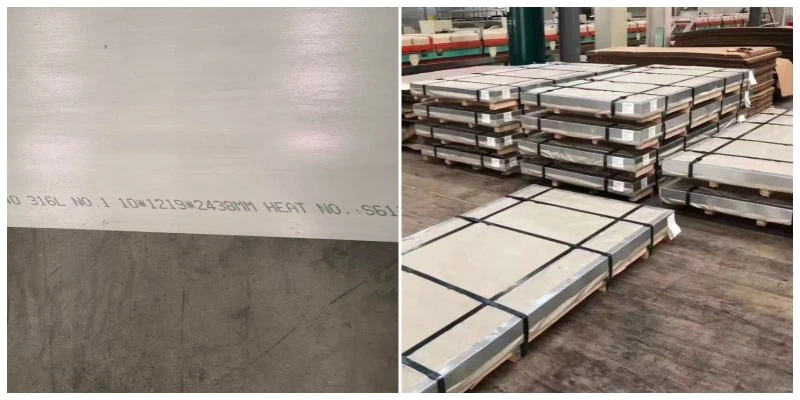

ASTM A240 316L Hot Rolled Plate

ASTM A240 316L Hot Rolled Plate

Product Name:316L Hot Rolled Stainless Steel Plate
Grade:316L/S31603/1.4404
Standard:ASTM A240 / ASME SA240
Product Form:Hot Rolled Plate
Thickness:3–100 mm, customized sizes available
Width:1,000–3,000 mm
Length:2,000–12,000 mm
Surface Finish:No.1 / Hot Rolled, pickled and annealed
Heat Treatment:Solution annealing, typically followed by rapid cooling
Certification:EN 10204 3.1 MTC available
Packaging:Waterproof paper/film, steel strapping, export-grade wooden pallets or cases

buy 316L stainless steel sheet online



If you are looking for high-strength stainless steel plates capable of adapting to acid-alkali chemical environments and high-salinity marine spray conditions, GNEE can supply ASTM A240 316L Hot-Rolled Steel Plates containing 2%–3% molybdenum and a carbon content not exceeding 0.03%, providing exceptional resistance to pitting and intergranular corrosion. The thickness range covers 3.0–100mm, with width specifications including 1000–3000mm. The products support cut-to-length processing as requested and come with EN 10204 3.1 material test certificates, satisfying the stringent requirements for corrosion resistance and structural strength in demanding applications such as reactors and marine components.



The ASTM A240 316L hot-rolled steel plate we supply is a low-carbon austenitic stainless steel plate compliant with American ASTM standards. The "L" in the designation represents low carbon content (below 0.03%), which not only enhances welding performance but also reduces the risk of post-weld intergranular corrosion. Processed at high temperatures above 1100°C, the steel plate features better toughness, a more uniform grain structure, and suitability for the economical production of large-sized plates without requiring post-weld annealing. It is suitable for medium-to-high temperature applications and pressure systems, fully complying with ASME design codes as well as ASTM A240 and ASME SA240 standards.



types of SS 316L Sheet Plate



UNS S31603 Stainless Steel Hot-Rolled Plate
UNS S31603 Stainless Steel Hot-Rolled Plate
SS 316L 1D Stainless Steel Plate
 SS 316L 1D Stainless Steel Plate
ASTM A240 316L Hot Rolled Plate
ASTM A240 316L Hot Rolled Plate

If you require specific assistance, please let me know:
What thickness and dimensions do you need for the plate?
In what industry or environment will the plate be used?
I can assist by providing relevant tolerance standards, weight calculations, or purchasing information.

Contact now

Specification

Item Specification
Standard ASTM A240 / ASME SA240
Grade 316L (UNS S31603 / EN 1.4404)
Finish No.1 (Hot Rolled, Annealed & Pickled)
Thickness Range 3.0 mm – 100 mm
Width Range 1000 mm – 3000 mm
Length Range 2000 mm – 12000 mm (custom lengths available)
Tolerances As per ASTM A480 / EN 10029
Surface Treatment Hot rolled, annealed, pickled
Certification ASTM A240, ASME SA240, EN 10204 3.1 / 3.2



Stainless Steel UNS S31600 Sheet Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 316 0.08 max 2 max 1.0 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 11.00 – 14.00 67.845 min


ASME SA240 316 Plates Mechanical Properties

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
SS 316 8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %



In which industries is 316L hot-rolled plate used?

Chemical and pharmaceutical: Reaction vessels, pressure vessels, and heat exchangers.
Marine engineering: Platform components, marine fittings, and seawater desalination equipment.
Pulp and paper: Bleaching tanks and processing equipment.
Environmental protection: Desulfurization and denitrification equipment (flue gas treatment).



sS 316L pickled plate price per kg

For standard batches or retail cut-to-size pieces, the price of pickled SS 316L steel plate typically ranges from $2.50 to $6.00 per pound (approximately $5.50 to $13.20 per kilogram), whereas wholesale orders range from $1,000 to $2,800 per tonne ($1.00 to $2.80 per kilogram).
China FOB price: $1.00 – $2.80 per kilogram;
Retail/cut-to-size plate: $5.50 – $13.20 per kilogram ($2.50 – $6.00 per pound).
If you can provide the required thickness, dimensions, and total quantity, I can calculate a more precise price estimate for the material.

Contact now

Case



GNEE recently supplied over 53 tons of  ASTM A240 316L NO.1 surface finish steel sheet  to a petrochemical plant in Southeast Asia, where high chloride exposure demanded reliable anti-corrosion performance. The project achieved 100% weld integrity and reduced maintenance frequency by 30%.

ASTM A240 316L NO.1 Surface Finish Steel Sheet



Delivery

GNEE maintains ample stock of standard ASTM A240 316L hot-rolled plates, with standard specifications ready for shipment and export packaging within 7–15 days. Production for non-standard thicknesses, cut-to-length sizes, or special surface finishes can be arranged based on order volume; actual delivery times are subject to final order confirmation.



Quality Inspection

ASTM A240 316L hot-rolled plates are inspected in accordance with ASTM A240/A480 standards. Tests for chemical composition, tensile strength, yield strength, elongation, and hardness are conducted on a per-heat basis, alongside checks for thickness, width, flatness, and surface quality; EN 10204 3.1 MTC certification is available.

316 PMI
316 PMI
Quality Inspection
Quality Inspection
Quality Inspection
Quality Inspection


Best quality product packaging

ASTM A240 316L hot-rolled plates are secured using anti-rust paper, PVC film, and steel strapping, and are protected by an outer layer of wooden cases or pallets. The weight of each package is controlled at 2–3 tonnes to ensure protection against moisture, rust, and impact damage during maritime loading, unloading, and transport.

ASTM A240 Grade 316L Plate
ASME SA240 316L Stainless Plate

FAQ

What specific requirements does ASTM A240 cover?
Answer: ASTM A240 is the standard specification for chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and general applications. For 316L, it mandates specific parameters such as chemical composition (e.g., carbon content ≤0.03%), tensile strength (≥485 MPa), yield strength (≥170 MPa), and hardness.



What are the equivalent materials for 316L stainless steel?
UNS Number: S31603.
China GB: 022Cr17Ni12Mo2 (or the older grade 00Cr17Ni14Mo2).
EU EN: 1.4404.
Japan JIS: SUS316L.



What exactly is the difference between 316 and 316L?
Answer: The primary difference is carbon content. 316L ("L" stands for Low Carbon) has a maximum carbon content of 0.03%, whereas 316 has a maximum of 0.08%. If your part requires welding, you must choose 316L. The low carbon content prevents "sensitization" in the heat-affected zone during welding, thereby avoiding intergranular corrosion. If welding is not involved and you require slightly higher strength, 316 is a suitable choice.



How does 316L compare to 304L hot-rolled plate?
The key factor is the addition of molybdenum (2–3%). This gives 316L superior resistance to pitting and crevice corrosion in environments containing chloride ions (such as seawater, salt spray, or chemical plants). If your equipment is located in a coastal area or comes into contact with chemical media, 316L is the safer choice.
