ASTM A240 904L Stainless Steel Hot-Rolled Plate
Type: Steel Plate
Standards: ASTM, AISI, GB, JIS, DIN, BS
Certification: ISO, RoHS, IBR
Surface Finish: No.1, Pickling
Process: Hot Rolled
Stock: In Stock
Thickness: 0.1–5 mm
Width: 1000–1500 mm
Thickness Tolerance: ±5%
Transport Package: Standard Export Packaging
Specification: Customizable
Origin: China
HS Code: 7219
Wholesale ASTM A240 Grade 904L Stainless Steel Plate | Customized Sizes & Rapid Delivery
GNEE is a globally leading stainless steel supplier specializing in the export of high-performance alloy materials. With more than 18 years of international trade experience, our products are exported to over 60 countries worldwide. We are highly familiar with the customs standards and technical requirements of South America, Southeast Asia, and Europe.
GNEE maintains more than 2,000 tons of stainless steel inventory in stock. Our hot rolling production line can provide medium and thick plates ranging from 3 mm to 100 mm and even thicker, ensuring extremely short delivery times for bulk procurement orders.
Our 904L hot-rolled plates undergo full Solution Annealing & Pickling treatment, resulting in a uniform silver-white No.1 surface finish and ensuring that all welding-sensitive microstructures have been completely eliminated before delivery. Under high pressure or severe temperature fluctuations, the material can effectively resist Stress Corrosion Cracking (SCC). Compared with cold-rolled plates, hot-rolled 904L plates are more suitable for manufacturing large pressure vessels, storage tanks, and heavy industrial components, as they can withstand higher workloads and thermal cycling stresses.
Each 904L medium and thick plate can undergo Ultrasonic Testing (UT, ASTM A435/A578) to ensure there are no internal pores or cracks within the material. Every batch of ASTM A240 904L plates is supplied with a Material Test Certificate (MTC) in compliance with EN 10204 3.1 standards, and supports third-party inspections by SGS, BV, and other organizations.
904L Material Test Certificate
Specification
|
Product Name |
Stainless Steel Plate / Stainless Steel Sheet |
|
Material |
2205 2507 904L etc. |
|
Finish(Surface) |
No.1/2B/NO.3/NO.4/BA/Brushed/HL/Mirror/Embossed etc. |
|
Technique |
Cold Rolled / Hot Rolled |
|
Thickness |
0.3mm-8mm(cold rolled) 3-120mm (hot rolled) |
|
Length |
1000mm-6000mm or customized |
|
Width |
1000mm-2000mm or customized |
|
Tips |
The sizes or thicknesses of stainless steel sheets can be customized, if you need additional information, please don't hesitate to contact us at any time. |
904L sheets Dimensional Tolerances (According to ASTM A480)
| Parameter | Tolerance Standard | Typical Execution |
| Thickness Tolerance | ASTM A480M | According to nominal thickness (e.g., ± 0.30mm for 10mm plate) |
| Width Tolerance | ASTM A480M | + 5mm / - 0mm (Slit edge) |
| Length Tolerance | ASTM A480M | + 10mm / - 0mm |
| Flatness Tolerance | ASTM A480M | ≤ 3mm – 5mm per meter (Higher precision available) |
Applications
Petrochemical Industry: Hydrocracking units, scrubbing towers, and acid treatment systems in refineries.
Fertilizer Industry: Heat exchangers and reaction vessels in phosphoric acid and sulfuric acid production lines.
Marine Engineering: Flue Gas Desulfurization (FGD) systems in coastal power plants, and offshore platform components.
Pharmaceutical Industry: Centrifuges and storage tanks involving highly corrosive chemical reagents.
904L vs. 2205 Duplex Stainless Steel: Price
The price of 904L stainless steel is typically higher than that of 2205 duplex stainless steel, with its cost generally ranging from 1.5 to 2 times that of the latter; this is primarily attributed to its significantly higher nickel (> 23%) and molybdenum content. Although 2205 offers greater strength and superior cost-effectiveness in chloride-containing environments, 904L remains the more ideal choice in highly acidic environments.
Our Export Case

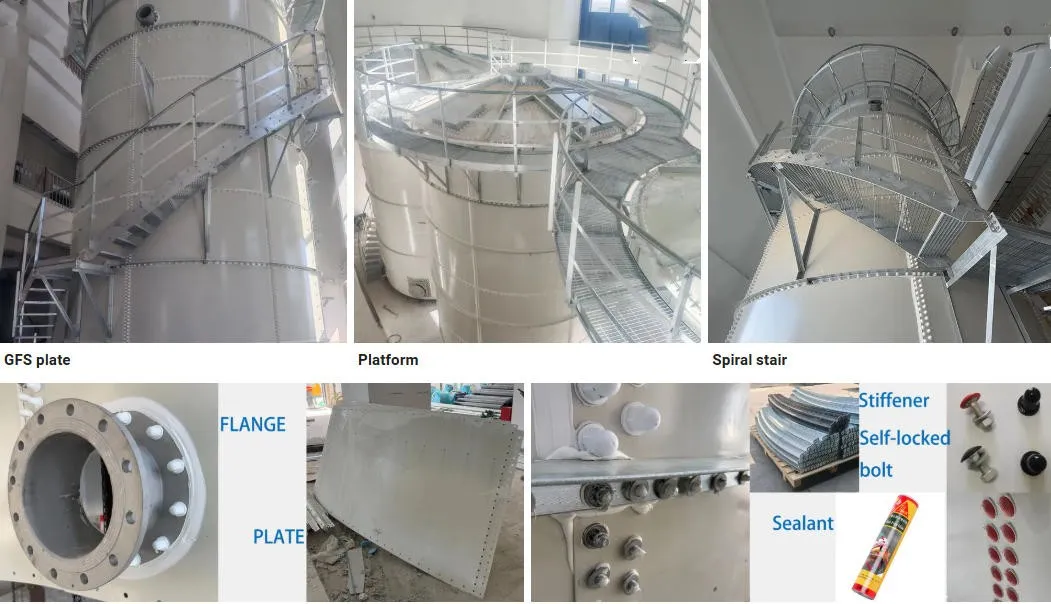

Application: Flue Gas Desulfurization (FGD) Scrubber Tower in a Power Plant
Project Background:
A large overseas coal-fired power plant carried out an ultra-low emission upgrade. The inlet area of the flue gas desulfurization (FGD) scrubber tower was exposed to severe corrosion caused by high temperatures, high chloride ion concentrations, and acidic flue gas.
Material Challenge:
The flue gas condensate was highly acidic and contained a large amount of chlorides, making the system extremely susceptible to Stress Corrosion Cracking (SCC).
GNEE Solution:
Supplied 904L hot-rolled pickled plates (No.1 surface finish, thickness range: 6 mm–10 mm).
Advantages:
The hot-rolled plates, combined with dedicated 904L welding consumables, ensured consistent joint efficiency and corrosion resistance during the on-site welding of large tower structures.
Customer Feedback:
"The 904L plates supplied by GNEE featured excellent flatness, and all Ultrasonic Testing (UT) results passed inspection, which greatly reduced the difficulty of rolling and fabricating our large tower tanks."
Click to Get 904L Technical Guidance

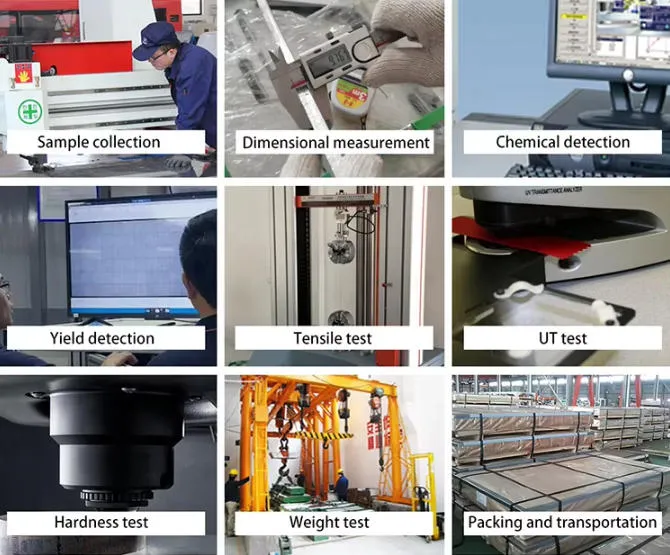

Quality Inspection

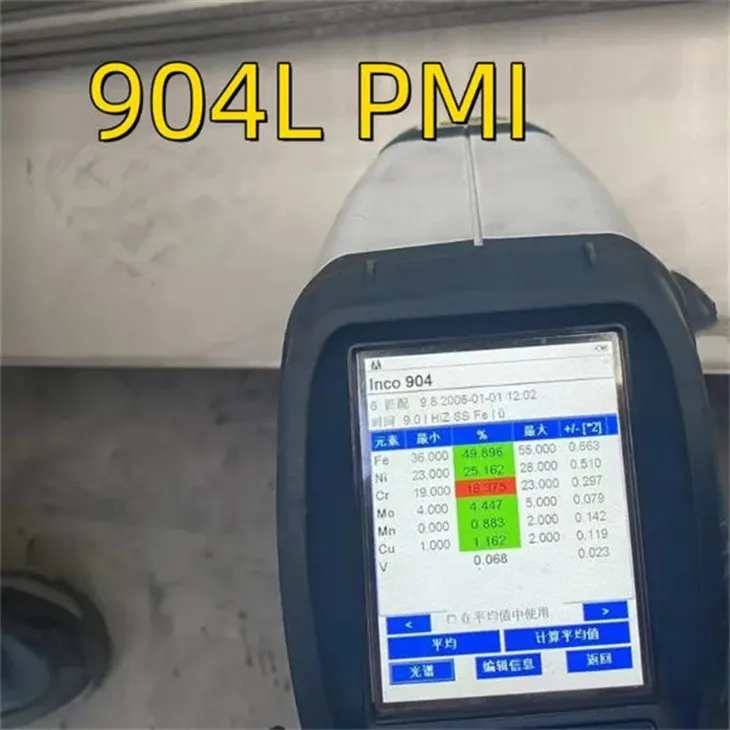

Chemical Analysis: 100% Piece-by-Piece PMI Testing-Each plate is verified on-site using a handheld spectrometer.
Tensile & Hardness Testing: We test for yield strength, tensile strength, elongation, and Brinell/Rockwell hardness to ensure full compliance with ASTM A240 standards.
Flatness & Dimensional Measurement: Precision measuring instruments are used to verify thickness tolerances (ensuring they fall within half of the standard tolerance range) and surface flatness.
Third-Party Inspection Support: We facilitate on-site inspections by international agencies-such as SGS, TUV, BV, and Lloyd's-for witnessed sampling, loading supervision, and the issuance of independent inspection reports.

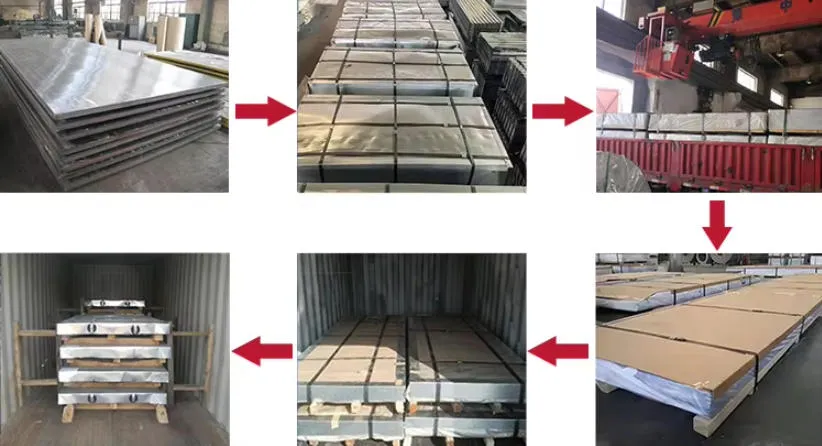

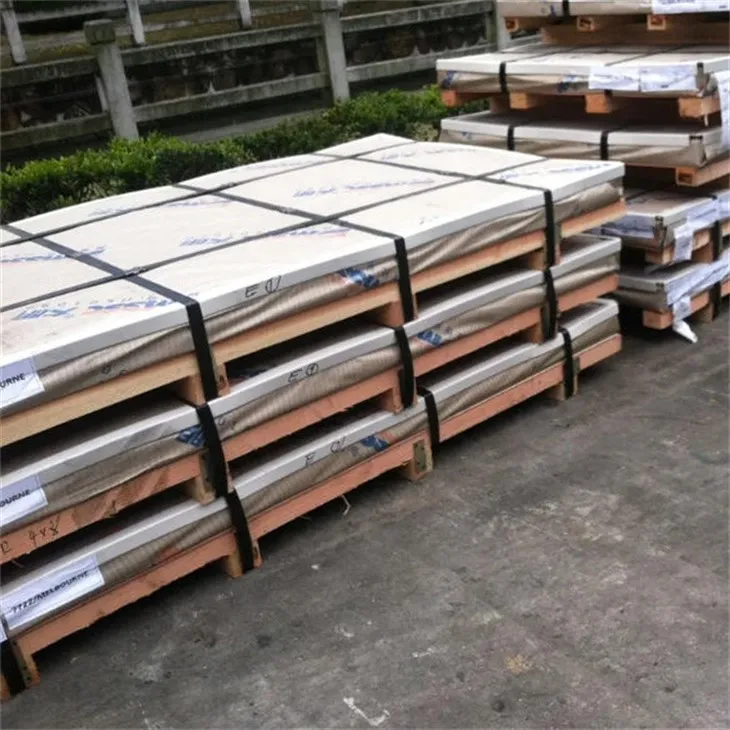

Packaging Solutions
Moisture-Proof Wrapping: Plates are fully wrapped in neutral moisture-proof paper or waterproof plastic film to prevent corrosion from salt spray and humidity during sea transport.
Edge Protection: L-shaped metal edge guards are installed around the perimeter of the plates to prevent damage during hoisting and forklift operations.
Steel or Reinforced Wooden Pallets: For medium-to-thick plates, we utilize welded steel frame pallets or heavy-duty wooden pallets (fumigated in accordance with ISPM 15 standards); these pallets offer a load-bearing capacity of 5–10 tons, ensuring the plates remain free of deformation during long-distance transit.
Clear Traceability Markings
Dual Labeling: Each package is affixed with bilingual labels (in both English and Chinese) containing key details: Heat Number, Dimensions, Weight, and Material Grade.
