ASTM A240 SS 253MA No.1 Plate
Standard：ASTM A240 / A240M
Surface Finish：No.1 (Hot Rolled, Annealed, and Pickled/Descaled)
Product Form：Flat Rolled Plate
Edge Condition：Mill Edge or Slit/Cut Edge
Thickness：3.0 mm – 100 mm
Width：1000mm, 1219mm, 1500mm, 2000mm, 2500mm
Length：2000mm – 12000mm (or Custom Cut)
Delivery time: 7-15 days
Payment: FOB/CIF/CFR
Transportation packaging: waterproof paper and steel belt packaging.
253MA stainless steel plate manufacturer
GNEE offers 253MA (UNS S30815) high-temperature resistant stainless steel medium-thick plates conforming to ASTM A240/A240M standards. These plates are specifically designed for manufacturing industrial furnace components, high-temperature heat exchangers, and internal components that withstand extreme high temperatures, strong oxidation, and carburizing environments ranging from 950°C to 1150°C.
Our 253MA hot-rolled stainless steel plates contain rare earth elements (Ce), which form a dense protective film on the steel surface. The creep strength at 900°C is 2.3 times that of 310S. Even during frequent heating and cooling thermal cycles, the oxide scale will not flake off like that of 310S, greatly protecting your furnace workpieces from contamination.
We supply solution-annealed and pickled sheet metal, with standard thicknesses ranging from 6mm to 50mm, widths up to 2000mm, and lengths customized to customer requirements. Dimensional tolerances are strictly controlled within ±0.03mm, and surface roughness Ra ≤1.6 microns (No.1 grade). All sheet metal is leveled using a heavy-duty straightener and undergoes comprehensive inspection. We also provide matching welding wire and professional welding guidance.

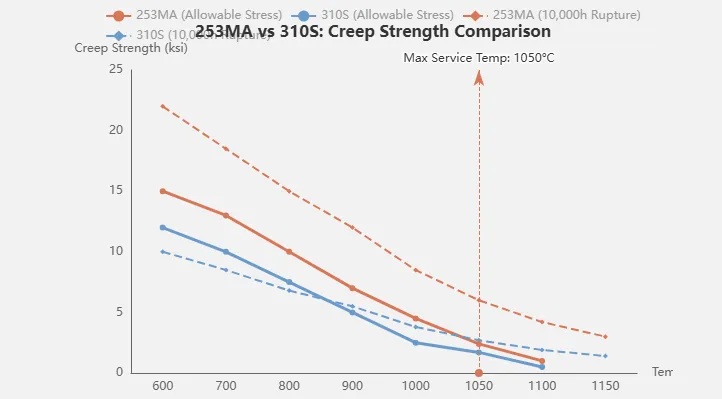

253MA vs 310S stainless steel sheet: creep strength
253MA stainless steel (UNS S30815) offers significantly higher creep strength than 310S stainless steel (UNS S31008), often more than twice as strong at temperatures above 870°C (1600°F). While 310S is a solid choice for continuous high heat, 253MA's micro-alloying with rare earths and nitrogen gives it superior structural integrity and higher allowable design stresses in extreme, fluctuating, or cyclic thermal environments up to 1150°C.
ASTM A240 253MA stainless steel plate Specification
| Commodity | ASTM A240 SS 253MA HR Stainless Steel Plate | |||
| Thickness | 0.3mm--16mm(cold rolled) 3mm--280mm(hot rolled) | |||
| Width | 1000mm--2200mm | |||
| Length | 1000mm-6000mm, as customers' request | |||
| Surface | NO.1 | |||
| manufacture | Hot Rolled | |||
| Edge Condition： | Mill Edge or Slit/Cut Edge | |||
| Delivery Time | Within 15 working days, according to customers' quantities | |||
| Productivity | 500 MT/Month | |||
| Payment | T/T,L/C | |||
| MOQ | 1 MT | |||
| Application | Pharmaceutical Industry,Pulp and Paper,Seawater and Brackish Water etc. | |||
| Note | We can also do other materials | |||
ASTM A240 253MA plate Chemical Composition (%)
The unique addition of Rare Earth Metals (Cerium) and Nitrogen gives 253MA its superior heat resistance.
| C | Mn | Si | P | S | Cr | Ni | N | Ce | |
| min. | 0.05 | - | 1.10 | - | - | 20.0 | 10.0 | 0.14 | 0.03 |
| max. | 0.10 | 0.80 | 2.00 | 0.040 | 0.030 | 22.0 | 12.0 | 0.20 | 0.08 |
ASTM A240 SS 253MA No.1 plate Mechanical Properties (at Room Temperature)
| Property | Value (Metric) | Value (Imperial) |
| Tensile Strength (Rm) | ≥ 600 MPa | ≥ 87 ksi |
| Yield Strength (Rp0.2) | ≥ 310 MPa | ≥ 45 ksi |
| Elongation (A5) | ≥ 40% | ≥ 40% |
| Hardness (Brinell) | ≤ 217 HBW | ≤ 217 HBW |
| Hardness (Rockwell B) | ≤ 95 HRB | ≤ 95 HRB |
UNS S30815 plate Physical Properties (Typical Values)
| Property | Value |
| Density | 7.8 g/cm³ |
| Melting Range | 1370 – 1430 °C |
| Modulus of Elasticity | 200 (at 20°C) GPa |
| Thermal Conductivity | 15 (at 100°C) W/(m·K) |
| Electrical Resistivity | 0.85 Ω·mm²/m |
| Scaling Temp (Air) | 1150 °C |
253MA plate price per kg
The price of 253MA (UNS S30815) stainless steel sheet is usually between $2.60 and $2.90 per kilogram (US$2,600 to US$2,900 per ton). High-temperature resistant and high-strength 253MA steel sheet is often used in harsh environments with temperatures up to 1150°C. The price of small batches or special orders is usually around US$8 to US$15 per kilogram.
If you are interested in our products and services, please feel free to contact me at any time ,our team will be ready to provide you with support and assistance!
buy 253MA stainless steel plate online
Stainless Steel 253MASheet Value Added Services

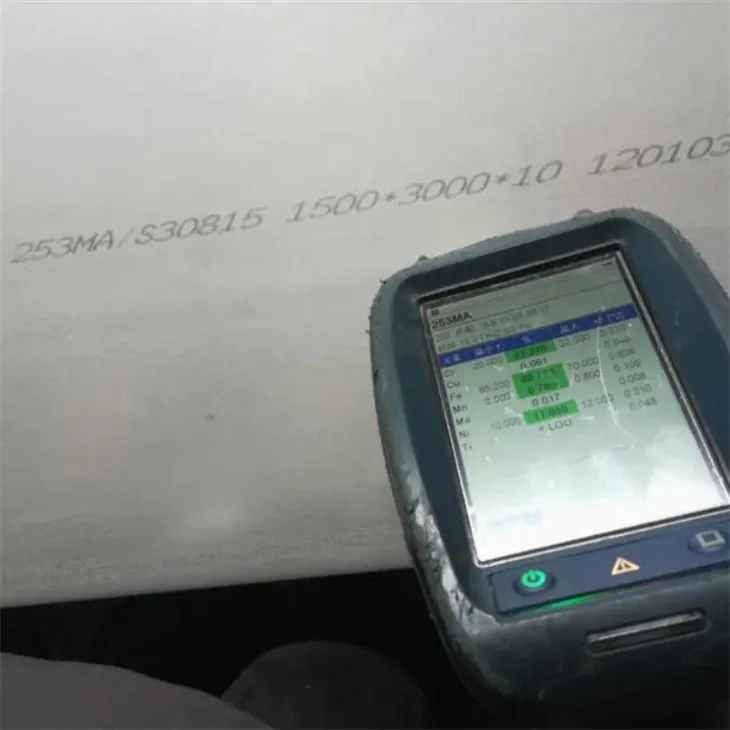

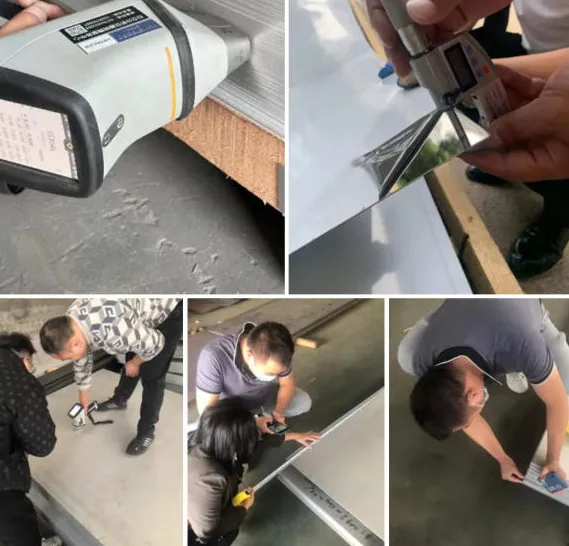

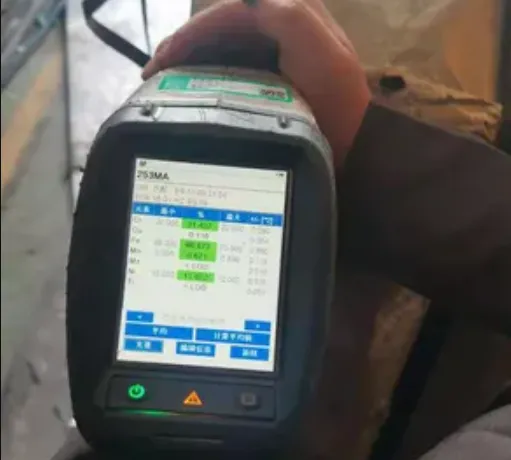

Quality Assurance: 100% PMI testing, ultrasonic flaw detection, and mechanical property testing. Advanced annealing and leveling equipment ensure consistent flatness and precision.
Thickness Tolerance: Strictly checked according to ASTM A480 standard using a thickness gauge.
Flatness: Since the surface is hot-rolled, it needs to be inspected for severe waviness.
Ultrasonic Testing (UT): If the sheet is thick (e.g., >20mm), customers often request flaw detection according to ASTM A435 or A578 to check for internal delamination or inclusions.
Stainless Steel 235MA Sheet Manufacturers
Factory Capacity: Over 50,000 square meters of production area, equipped with CNC cutting, slitting, and polishing production lines, with an annual export volume exceeding 30,000 tons, fully compliant with ISO 9001, SGS, and BV certifications.
GNEE PACKAGING AND SHIPPING
Bottom Pallets/Skids: Use reinforced wooden or steel pallets. For long boards, multi-point support must be used to prevent permanent bending during lifting.
Waterproof Protection: Although stainless steel is corrosion-resistant, the No.1 surface of 253MA may develop white spots or water stains if exposed to moisture during sea transport. It is typically fully wrapped with waterproof woven fabric or Kraft paper.
Securation: Use steel straps for longitudinal and transverse reinforcement, and install L-shaped metal edge protectors at the edges to prevent the steel straps from damaging the edges of the boards.
