ASTM A240 alloy 2507 duplex stainless steel sheet
May 08, 2026
Leave a message
GNEE maintains a large inventory of 2507 stainless steel plates for fast delivery, providing high-strength, highly corrosion-resistant, and reliable plate solutions for high-pressure heat exchangers, reactors, and equipment operating in severe corrosive environments.
We supply ASTM A240 UNS S32750 (2507) super duplex stainless steel plates with a precisely controlled 50/50 ferrite-austenite duplex microstructure. The material is manufactured through electric furnace + AOD refining, solution annealed at 1050–1100°C, followed by precision rolling and surface finishing. Especially in the fabrication of large pressure vessels or heat exchanger tube sheets, plate flatness directly affects the accuracy of subsequent cutting and welding processes.
Production Process of 2507 Super Duplex Stainless Steel Plates
Available specifications include:
Cold rolled: 0.5–6 mm
Hot rolled: 6–100 mm
Width: 1500–3000 mm
Fixed or customized lengths available
Dimensional tolerances are strictly controlled within ±0.1–±0.3 mm, with optional 2B, pickled, or polished surface finishes.
UNS S32750 stainless steel plates feature a PREN value ≥45, offering far superior resistance to pitting and crevice corrosion compared with 2205 and 316L. Their resistance to chloride stress corrosion cracking is 8–10 times greater than 316L, with no rust observed after 48-hour salt spray testing. The service life is more than three times longer than conventional austenitic stainless steel.
Before delivery, all SS 2507 plates undergo ultrasonic and eddy current inspection, with 100% qualified hydrostatic testing. The finished product qualification rate reaches ≥99.8%. EN 10204 3.2 certificates, SGS/TUV certifications, and complete material test reports are available upon request.
UNS S32750 super duplex plate sheet coil strip specifcation
| Commodity | super duplex 904L 2205 2507 stainless steel plates metal sheet |
| Grade | 904L 2205 2507 |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 0.2mm-150mm |
| Width | 1000,1219,1250,1500mm, or as your requirements |
| Length | 2000,2438,2500,3000,6000mm, or as your requirements |
| Surface | No.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film. |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery time | 5-7 days after confirming the order |
| MOQ | 1 Ton |
Super Duplex Uns S32750 Chemical Composition, %
| Cr | Ni | Mo | C | N | Mn | Si | Cu | P | S | Fe |
| 24–26 | 6–8 | 3–5 | ≤0.030 | 0.24–0.32 | ≤1.20 | ≤0.80 | ≤0.50 | ≤0.035 | ≤0.020 | Bal. |
UNS S32750 Material Mechanical Properties
|
Ultimate Tensile Strength, ksi Minimum |
0.2% Yield Strength, ksi Minimum |
% Elongation Min. |
Hardness |
|
116 |
80 |
15 |
310 |
What is the difference between 2507 and 2205 ?
2507 (UNS S32750, 1.4410) is a super duplex stainless steel, whereas 2205 (UNS S32205/S31803, 1.4462) is a standard duplex stainless steel; 2507 serves as a high-performance upgrade to 2205. 2507 possesses superior strength, with a yield strength (≥550 MPa) approximately 25% higher than that of 2205 (≥450 MPa), though its ductility and toughness are slightly lower.
What are the primary application areas for 2507 plates?
Marine Engineering: Seawater desalination equipment, subsea pipelines, and offshore platforms.
Chemical Industry: Reactors for the production of nitric acid, phosphoric acid, and organic acids.
Environmental Protection: Scrubber towers for Flue Gas Desulfurization (FGD) systems in power plants.
Oil & Gas: Pressure vessels designed for environments with high sulfur and chloride content.
What are the common delivery conditions for 2507 plates?
The most common condition is "Solution Annealed & Quenched." The typical surface finishes are No. 1 (Hot Rolled, Pickled) or 2B (Cold Rolled, Bright).
2507 Super Duplex Stainless Steel Plate Sheet Price Per ton
| Product Description | Price |
|---|---|
| Super Duplex Stainless Steel 2507 Plates in Stock for Sale | FOB Price: USD 108.00 / Piece |
| 4mm / 6mm Thick 2507 Duplex Stainless Steel Plate | USD 500.00 – 1,000.00 / Ton |
| ASTM 2507 / 2520 Duplex Stainless Steel Sheet & Plate (Decorative Use) | USD 2,400.00 – 2,700.00 / Ton |
| Super Duplex Stainless Steel SAF 2507 Sheet & Plate | FOB Price: USD 2,000.00 – 5,000.00 / Metric Ton |
| Duplex Stainless Steel 2507 Plate (No.1 Surface Finish) | FOB Price: USD 4,000.00 – 6,000.00 / Ton |
| 0.3mm Duplex Stainless Steel 2507 Sheet & Plate | FOB Price: USD 886.00 – 2,586.00 / Ton |
| Duplex Stainless Steel Plate 2507 / Super Duplex Stainless Steel Plate (2B / No.1 Finish) | FOB Price: USD 1,500.00 – 2,500.00 / Ton |
If you have specific project requirements, we welcome your orders. GNEE maintains a substantial inventory of best-selling products for you to choose from. Please contact our factory immediately. We offer competitive pricing and exceptional service.
Click to get the latest price for 2507 stainless steel plate

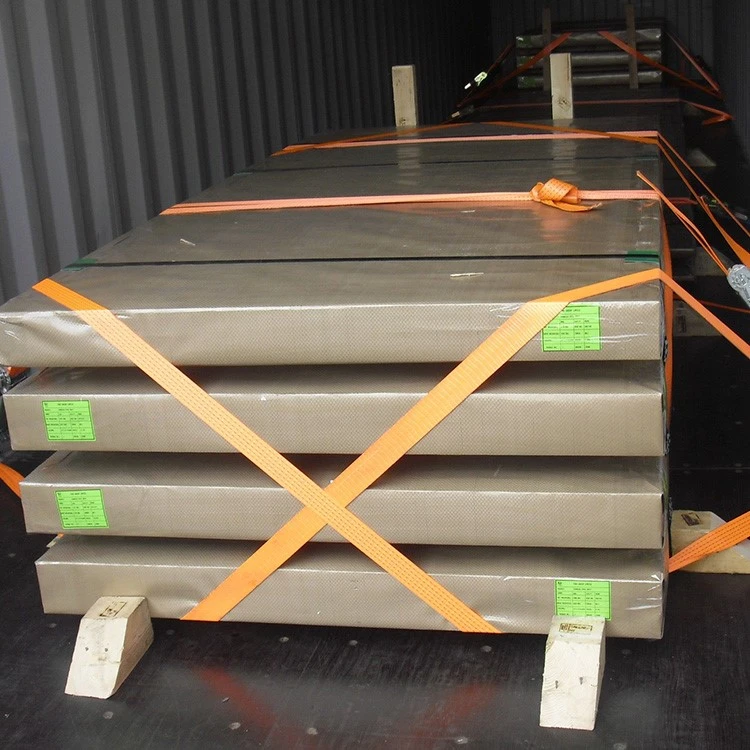

Packaging and Contamination Prevention
Contact with carbon steel is strictly prohibited during storage and transportation.
The use of heavy-duty wooden pallets is required, with waterproof paper or plastic film placed between the sheets for separation.
For sea transport, meticulous packaging measures must be implemented to prevent minor rust spots on the surface caused by sea salt.
