DIN EN 1.4401 X5CrNiMo17-12-2 Stainless Steel plate

What is X5CrNiMo17-12-2 stainless steel plate?

X5CrNiMo17-12-2 stainless steel plate is a molybdenum-bearing austenitic stainless steel conforming to the German standard (DIN 17440), commonly referred to as 1.4401. Due to the addition of molybdenum (2.0%–3.0%), its resistance to chloride corrosion and pitting is significantly superior to that of 304 (1.4301) stainless steel. This grade is widely utilized for sheet metal components requiring high corrosion resistance in the chemical, marine, and food industries.



GNEE supplies X5CrNiMo17-12-2 (EN 1.4401, equivalent to ASTM A240 316) stainless steel hot rolled plates, fully compliant with EN 10088-2 and ASTM A240 standards. The available specifications include thicknesses from 3.0–100 mm, widths from 1000–3000 mm, and lengths from 2000–12000 mm. Custom services such as cutting, slitting, and heat treatment are also available.



X5CrNiMo17-12-2 stainless steel plates contain C ≤ 0.07%, Cr 16.5–18.5%, Ni 10.0–13.0%, and Mo 2.00–2.50%, ensuring excellent resistance to pitting and crevice corrosion. Its PREN value is ≥ 32, significantly higher than that of 304 stainless steel.EN 1.4401 plates are delivered in the solution annealed (+AT) condition. Surface finishes include pickled (2D), sandblasted, or polished. Dimensional tolerance is controlled within ±0.5 mm.

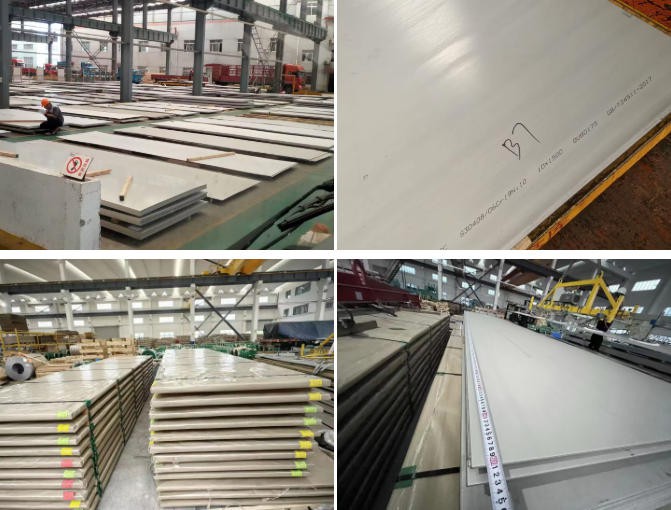

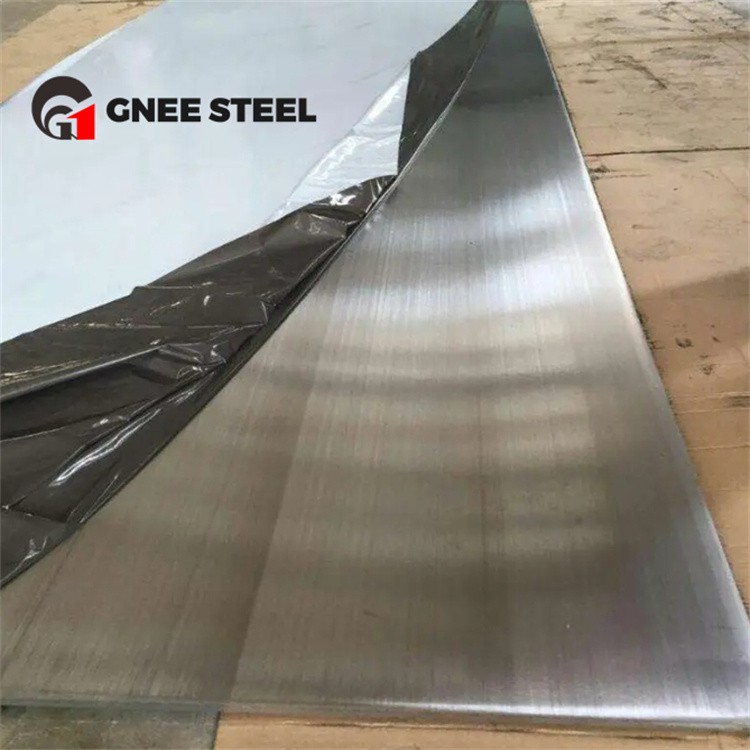

X5CrNiMo17-12-2 Stainless Steel plate

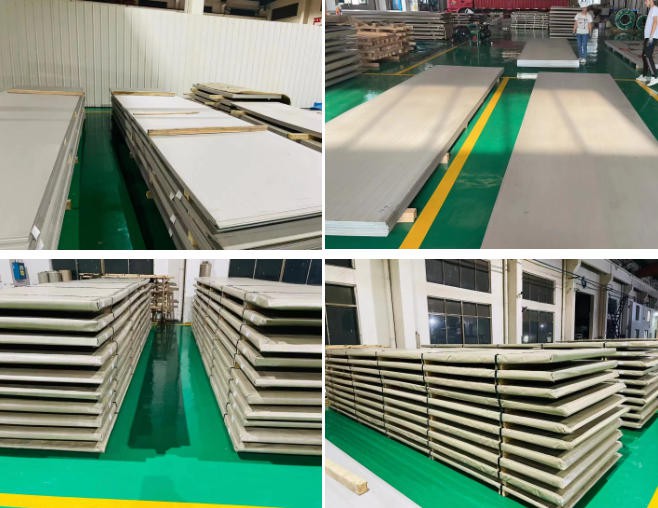

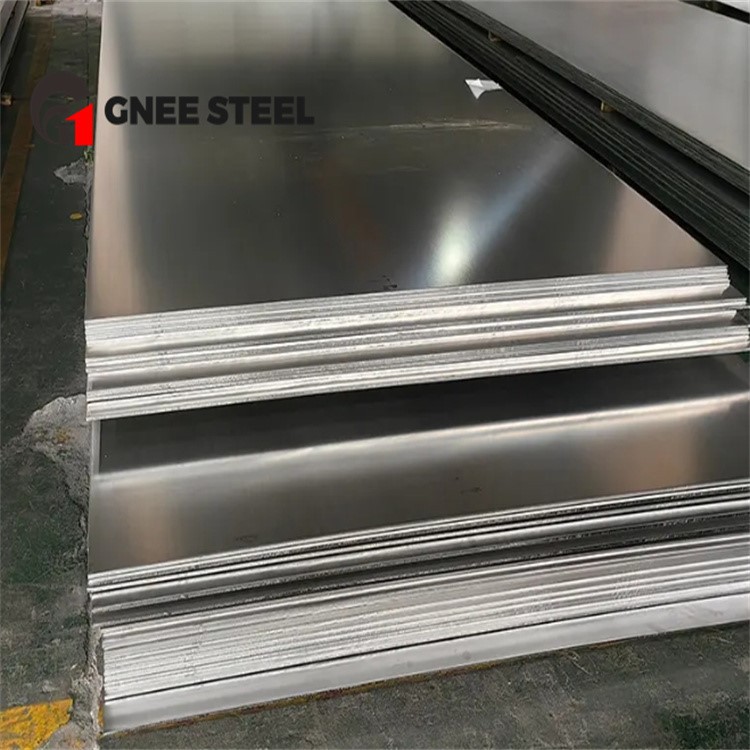

1.4401  Cold-Rolled Stainless Steel Sheet

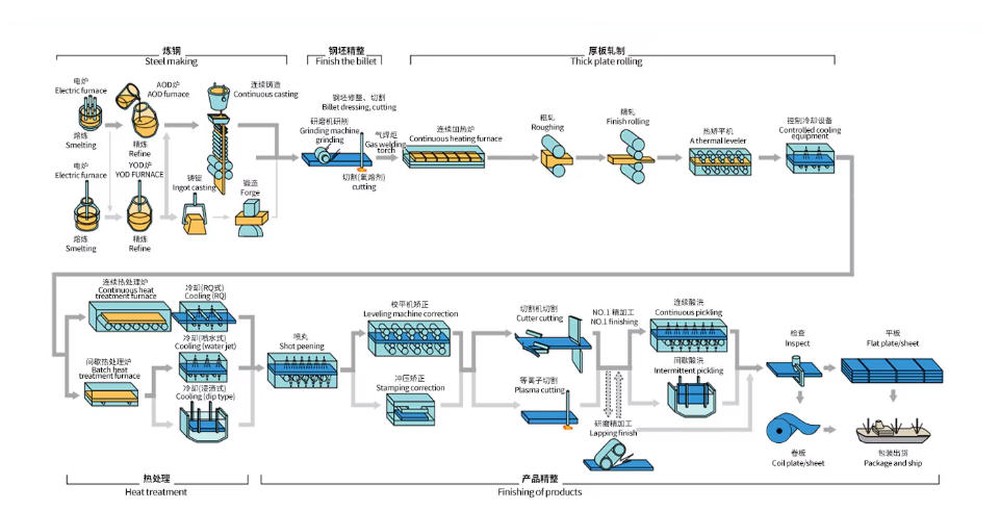

1.4401 Stainless steel plate production process

DIN EN 1.4401 Chemical Composition

Chemical Composition, %
Steel Grade (Steel Number)	Standard	C, max	Si, max	Mn, max	P, max	S, max	Cr	Ni	Mo	N, max
X5CrNiMo17-12-2 (1.4401)	EN 10088-2; EN 10088-3	0,07	1,00	2,00	0,045	0,030	16,5-18,5	10,0-13,0	2,00-2,50	0,10



Mechanical Properties of Stainless Steel 1.4401 plate

Thickness t (mm)	Heat Treatment / Condition	Tensile Strength σb (MPa)	Yield Point σs (MPa)	Elongation after Fracture δ (%)	Impact Absorbed Energy KV2 (J)
t ≤ 8 (Transverse)	Cold-rolled Strip (C) + Solution Annealing	530~680	≥240	≥40	-
t ≤ 13.5 (Transverse)	Hot-rolled Strip (H) + Solution Annealing	530~680	≥220	≥40	≥60
t ≤ 75 (Transverse)	Hot-rolled Medium & Heavy Plate (P) + Solution Annealing	520~670	≥220	≥45	≥60
t ≤ 13.5 (Longitudinal)	Hot-rolled Strip (H) + Solution Annealing	-	-	-	≥100
t ≤ 75 (Longitudinal)	Hot-rolled Medium & Heavy Plate (P) + Solution Annealing	-	-	-	≥100

For continuously hot-rolled products, a deviation of up to 20 MPa above the minimum yield strength is permissible during inquiry and ordering. (Note: Yield strength refers to Rp0.2.)

For thicknesses t < 3 mm, the standard specimen dimensions are 80 mm in length and 20 mm in width; standard specimens measuring 50 mm in length and 12.5 mm in width may also be used.



1.4401 Heat Treatment

		Hot forming		Solution annealing
Standard	Designation (Steel number)	Temperature, ℃	Type of cooling	Temperature, ℃	Type of cooling
DIN EN 10088-2	X5CrNiMo17-12-2 (1.4401)	1150 to 850	air	1030 to 1110	water, air
DIN EN 10088-3		1200 to 900		1020 to 1120



1.4401 Stainless Steel Welding:

Excellent weldability with common methods (TIG, MIG, Arc, Laser). Since it is not the "L" (Low Carbon) grade, intergranular corrosion may occur in the weld zone if used in very thick sections or high-temperature corrosive environments.



EN 1.4401 X5CrNiMo17-12-2 Stainless Steel Plate Supplier

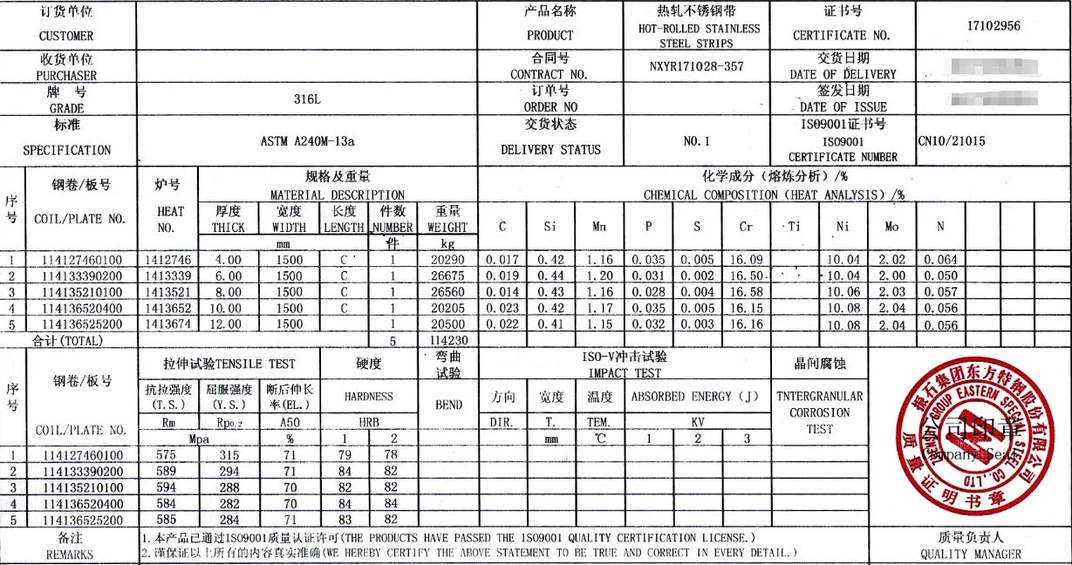

Our products undergo 100% Ultrasonic Testing (UT) to ensure they are free from internal defects. Each batch is accompanied by an EN 10204 3.1 Mill Test Certificate (MTC), a third-party inspection report from SGS or TUV, and traceable raw material certifications.



Packaging and Shipping

Packaging: Each plate or coil is wrapped in moisture-proof paper, lined with plastic film, and secured with steel strapping. The outer layer is protected by wooden pallets or wooden crates to ensure safety during international transit.
Labeling: Each package includes information regarding the heat number, grade, dimensions, and applicable standards.
Delivery Time: Typically within 7–15 business days after receipt of the advance payment.
