What is S32205 material equivalent?

What is S32205 material grade?

UNS S32205 (also known as 2205 duplex, F60, or 1.4462) is a nitrogen-enhanced, dual-phase stainless steel (50/50 austenite and ferrite) offering superior corrosion resistance and twice the strength of standard austenitic steels like 316. It is widely used in marine, chemical, and oil & gas industries, particularly for handling chloride-rich or acidic environments, offering high resistance to pitting and stress corrosion cracking.



What is equivalent to grade UNS S2205?

UNS S2205 (also known as 2205 duplex steel or 22%Cr duplex steel) is closest to UNS S31803, DIN 1.4462, and ASTM A182 F51/F60. It is commonly referred to as SAF 2205, duplex steel 2205, or alloy 2205. It is suitable for high-strength, high-corrosion-resistance applications, including offshore oil and gas, marine environments, and chemical processing.

2205/S32205 Stainless Steel Strips Standards Comparison Table
STS	USA	UNS	CHINA	EURONORM		RUSSIA	SWEDISH	JAPANESE
GRADE	AISI/ASTM	NO	GB	NO	NAME	GOST	SS	JIS
2205	2205	S32205	00Cr22Ni5Mo3N	1.4462	X2CrNiMoN22-5-3	02Ch22N5AM2	2377	SUS 329J3L



 UNS S32205 Duplex Stainless Steel  Chemical Compositions

Grade	Standard	C	Si	Mn	P	S	Cr	Ni	Mo
2205/UNS S32205	ASTM A240	≤0.03	≤1.00	≤2.00	≤0.040	≤0.030	21.00-24.00	4.50-6.50	2.5-3.5



UNS S32205 Duplex Stainless Mechanical Properties

Grade	EN Grade	Yield Strength Rp0.2(N/mm²)	Tensile Strength Rm(N/mm²)	NMness	Vickers NMness(HV)	Elongation A50%
2205/UNS S32205	1.4462	≥450	≥620	Annealed	≤300	≥25



What is the difference between S32205 and 316?

S32205 (Duplex 2205) is a high-performance duplex stainless steel with roughly double the yield strength and superior corrosion resistance (pitting/crevice) compared to 316/316L austenitic stainless steel. S32205 is ideal for harsh chloride/seawater environments, while 316 is suited for moderate, lower-cost applications.



What is the difference between S32750 and S32205?

S32750 (Super Duplex) and S32205 (Standard Duplex) differ primarily in alloy content and corrosion resistance, with S32750 offering superior performance in harsh environments. S32750 features higher Chromium (25%), Molybdenum (4%), and Nitrogen (0.3%) content, resulting in a higher Pitting Resistance Equivalent Number (PREN > 40) compared to S32205 (PREN < 40). S32750 provides better chloride resistance.



Possible Alternative Grades

Grade	Reasons for choosing the grade
904L	Better formability is needed, with similar corrosion resistance and lower strength.
UR52N+	High resistance to corrosion is required, e.g. resistance to higher temperature seawater.
6%Mo	Higher corrosion resistance is required, but with lower strength and better formability.
316L	The high corrosion resistance and strength of 2205 are not needed. 316L is lower cost.



We are a professional stocker of duplex stainless steel in China and a supplier of UNS S32205 duplex stainless steel. Please see GNEE Stainless Steel's UNS S32205 duplex stainless steel price list. For the latest price list of UNS S32205 duplex stainless steel and related materials, please call or email sales@gneestainless.com.

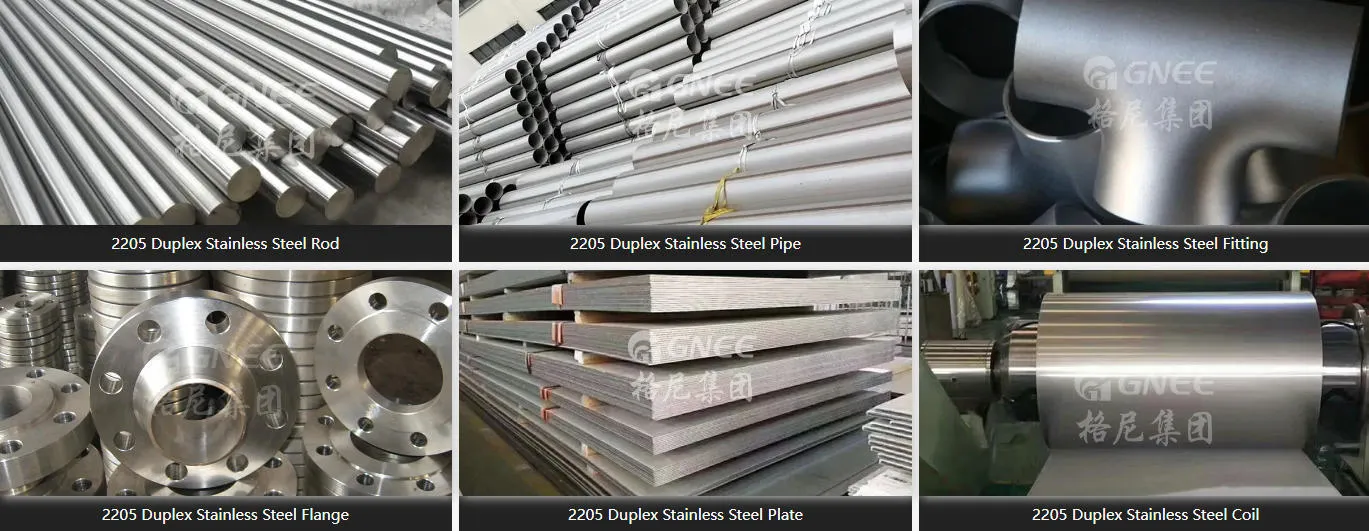

roduct Category	Manufacturing Type	Applicable Standards (ASTM/ASME)	Common Size Range
Pipes	Seamless / Welded	ASTM A790 / ASME SA790	1/2" to 24" (SCH 10S, 40S, 80S, 160, XXS)
Tubes	Seamless / Welded	ASTM A789 / ASME SA789	OD 6mm to 219mm; WT 0.5mm to 20mm
Plates / Sheets	Hot Rolled / Cold Rolled	ASTM A240 / ASME SA240	Thickness: 0.3mm to 100mm
Round Bars	Hot Rolled / Forged / Cold Drawn	ASTM A276 / ASTM A479	Diameter: 5mm to 500mm
Pipe Fittings	Butt-Weld (Seamless/Welded)	ASTM A815 / ASME SA815	1/2" to 48" (Elbow, Tee, Reducer, Cap)
Forgings & Flanges	Forged / Machined	ASTM A182 / ASME SA182	Class 150 to 2500; Sizes up to 60"
Fasteners	Machined / Threaded	ASTM A1082 / ASTM F593	Bolts, Nuts, Studs (M6 to M100)
Wire / Coils	Cold Drawn	ASTM A580	Diameter: 0.1mm to 20mm



We are also a major supplier of UNS S32205 duplex stainless steel to countries and regions including Malaysia, India, Vietnam, Indonesia, Saudi Arabia, Singapore, Kuwait, Qatar, Thailand, UAE, UK, Oman, Bahrain, Philippines, and South Africa.
