What material is 1.4301 X5CrNi18-10?
Apr 01, 2026
Leave a message
What material is 1.4301 X5CrNi18-10?
1.4301 (X5CrNi18-10) is a widely used austenitic stainless steel equivalent to AISI 304 (often referred to as "18/10" or "18/8" stainless steel)-that features good corrosion resistance as well as excellent formability and weldability. Containing approximately 18% chromium and 10% nickel by weight, it is an ideal material for manufacturing kitchen utensils, chemical equipment, and food processing machinery.
What material is equivalent to X5CrNi18-10?
X5CrNi18-10 (material number 1.4301) is most commonly equivalent to AISI 304 (USA) and SUS304 (Japan). It is a versatile, 18/8 austenitic stainless steel known for excellent corrosion resistance and weldability. Other global equivalents include 06Cr19Ni10 (China) and UNS S30400 (ASTM).
|
European Union |
US |
ISO |
China |
Japan |
|||||
|
Standard |
Steel Name (Material Number) |
Standard |
Grade (UNS) |
Standard |
Grade |
Standard |
Grade |
Standard |
Grade |
|
EN 10088-2; EN 10088-3; |
X5CrNi18-10 (1.4301) |
AISI; |
AISI 304 (UNS S30400) |
ISO 15510 |
X5CrNi18-10 |
GB/T 20878; |
06Cr19Ni10; |
JIS G4304 |
SUS304 |
chemical composition of stainless steel AISI 304 / 1.4301
|
C |
Si |
Mn |
P |
S |
N |
Cr |
Cu |
Mo |
Ni |
Ti |
|---|---|---|---|---|---|---|---|---|---|---|
|
≤ 0,07 |
≤ 1,00 |
≤ 2,00 |
≤ 0,045 |
≤ 0,03 |
≤ 0,10 |
17,5 - 19,5 |
- |
- |
8,0 - 10,5 |
- |
X5CrNi18-10 | 1.4301: Mechanical properties (transverse)
|
Standard |
Steel Name (Material Number) |
Diameter (d) or Thickness (t) in mm |
0.2% proof strength (N/mm2) |
Tensile strength (N/mm2) |
Elongation (%) |
Impact energy (J) |
|
EN10088-3 |
X5CrNi18-10 (1.4301) |
d≤10 |
400 |
600-950 |
25 |
– |
|
10<t≤16 |
400 |
600-950 |
25 |
– |
||
|
16<t≤40 |
190 |
600-850 |
30 |
100 |
||
|
40<t≤63 |
190 |
580-850 |
30 |
100 |
||
|
63<t≤160 |
190 |
500-700 |
45 |
100 |
||
|
160<t≤250 |
190 |
500-700 |
35 |
60 |
X5CrNi18-10 vs 304
X5CrNi18-10 (material number 1.4301) and AISI 304 are essentially equivalent, widely used austenitic stainless steels often referred to as "18/8" or "18/10" (18% chromium, 8-10% nickel). They share identical corrosion resistance, weldability, and structural applications, with X5CrNi18-10 representing the European DIN/EN designation.
What are the properties of X5CrNi1810 material?
X5CrNi1810 (material number 1.4301, equivalent to AISI 304) is a highly versatile, austenitic stainless steel known for excellent corrosion resistance, good formability, and weldability. Key properties include a density of 7.9 g/cm³, tensile strength of 500-700 MPa, and high ductility. It is widely used in food processing, chemical, and architectural industries.
Is X5CrNi18-10 magnetic?
The material 1.4301, X5CrNi18-10, AISI 304 and UNS S30400 has good weldability and good formability. In the solution annealed condition the material is non-magnetic.
What is the price of X5CrNi18-10 material?
The wholesale price for raw X5CrNi18-10 stainless steel (also known as 1.4301 or AISI 304) typically ranges from $1,000 to $2,300 per ton; however, specific prices vary depending on the product form (sheet or bar), thickness, and surface finish. Retail prices for common tubing and sheet products range from approximately €0.90 to over €45 per unit or per meter, depending on the specific product specifications.
GNEE (GNEE Steel Group) provides a comprehensive range of 1.4301 products tailored for industrial, architectural, and mechanical applications.
Available Products: 1.4301 / X5CrNi18-10 (Grade 304)
| Product Category | Type / Form | Standards & Specs | Dimension / Size Range | Surface Finish Options |

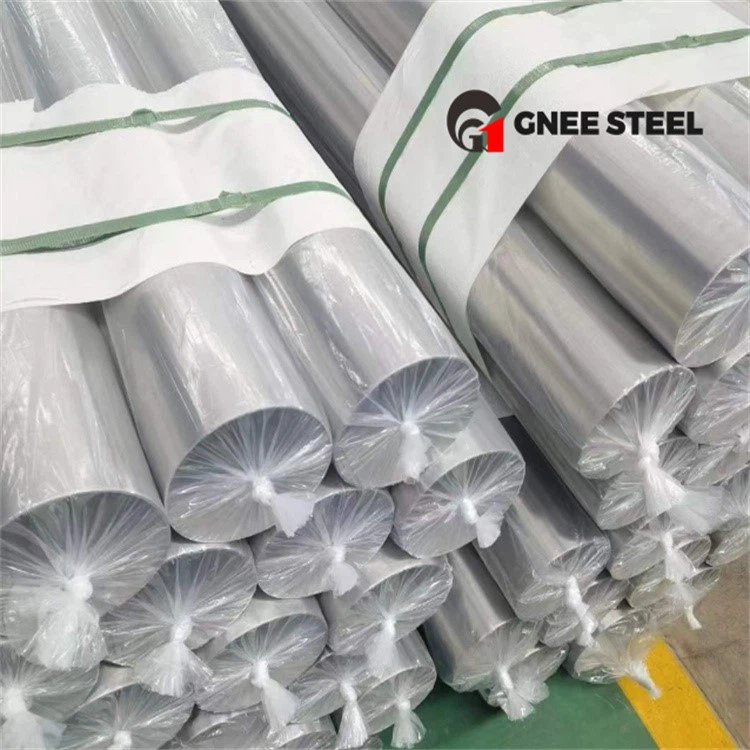

| Stainless Steel Pipes & Tubes | Seamless, Welded (ERW, EFW), Sanitary, Decorative | ASTM A312, A213, A269, EN 10216-5, EN 10217-7 |
OD: 6mm - 630mm WT: 0.5mm - 40mm |
Annealed & Pickled, Polished (180#, 320#, 400#, 600#), Mirror, Satin |

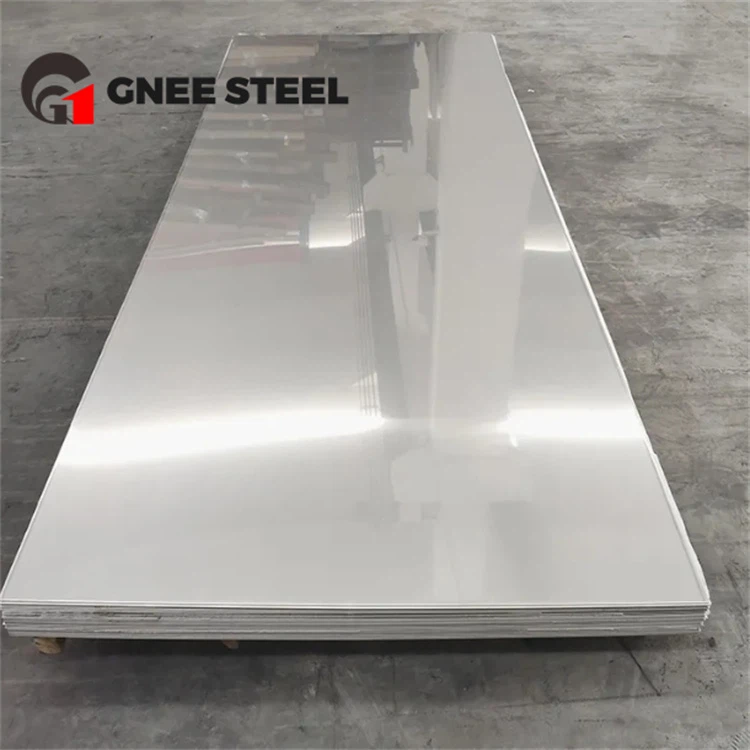

| Stainless Steel Sheets & Plates | Hot Rolled (HR), Cold Rolled (CR), Decorative | ASTM A240, EN 10088-2 |
Thickness: 0.3mm - 100mm Width:1000/1219/1500/2000mm |
2B, BA, No.1, No.4, HL (Hairline), Mirror, Etched, Embossed |

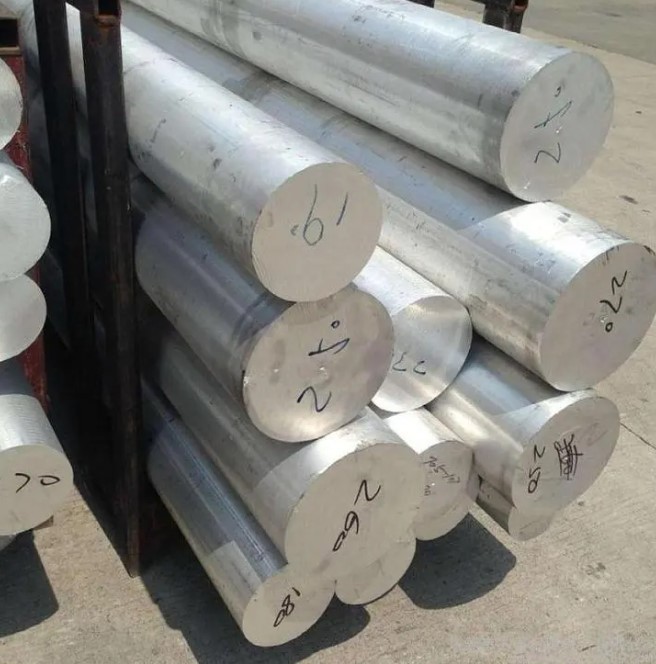

| Stainless Steel Bars & Rods | Round, Square, Hexagonal, Flat | ASTM A276, A484, EN 10088-3 |
Diameter: 2mm - 500mm Flat: 10x3mm - 200x20mm |
Bright, Peeled, Polished, Black (Hot Rolled) |
| Stainless Steel Coils & Strips | Precision Strips, Narrow Strips, Wide Coils | ASTM A240, EN 10088-2 |
Thickness: 0.1mm - 5.0mm Width: 10mm - 1500mm |
2B, BA, TR (Hard rolled), Polished |
| Pipe Fittings | Elbows, Tees, Reducers, Caps, Stub Ends | ASME B16.9, EN 10253 | DN15 - DN1200 (1/2" - 48") | Sand Blasted, Pickled, Polished |
| Flanges | Weld Neck (WN), Slip-On (SO), Blind, Threaded | ASME B16.5, EN 1092-1, JIS | Class 150 - 2500 <br>PN6 - PN100 | Raised Face (RF), Flat Face (FF), RTJ |

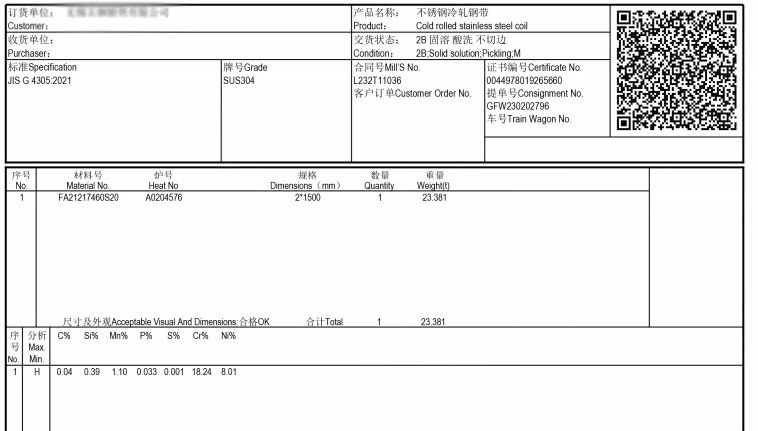

GNEE possesses extensive experience in international shipping, with a service network spanning over 70 countries worldwide. We utilize professional packaging-including wooden crates, iron frames, or pallets-that complies with maritime transport standards. All products are accompanied by a Material Test Certificate (MTC) in accordance with the EN 10204 3.1 standard.
