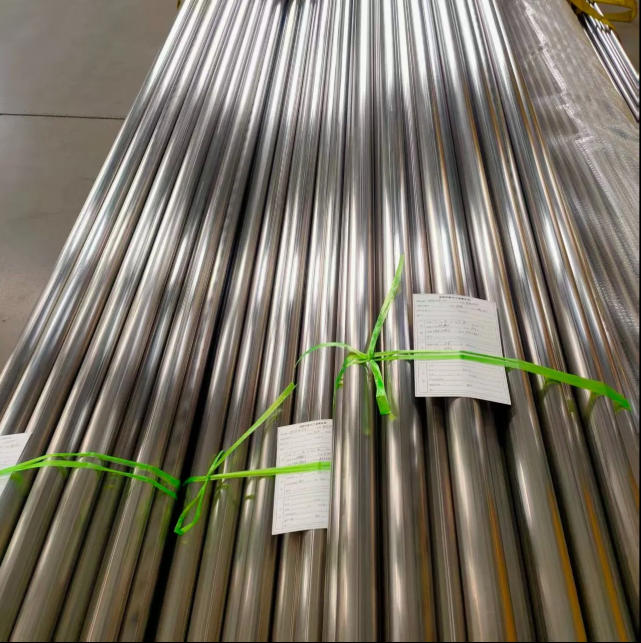

EN 10216-5 1.4571 Stainless Steel Seamless Tube

EN 10216-5 is a European standard that specifies the technical delivery conditions for seamless steel tubes intended for pressure purposes, specifically covering stainless steel tubes manufactured from austenitic and duplex steels. Grade 1.4571 corresponds to the stainless steel X6CrNiMoTi17-12-2 (AISI 316Ti); this is an austenitic stainless steel containing titanium, where the addition of titanium is intended to prevent carbide precipitation during welding processes.

EN 10216-5 1.4571 stainless steel tubes supplied by GNEE are manufactured in various delivery conditions, including hot-finished, cold-finished and heat-treated, and bright annealed (CFA) states; their inspection levels are classified into TC1 (General Grade) and TC2 (Pressure Equipment Grade). The tensile strength of 1.4571 stainless steel round tubes typically ranges between 500–730 MPa (in the cold-finished state) and 490–690 MPa (in the hot-finished state), with a yield strength of approximately 210–245 MPa.

Strict regulations regarding dimensional tolerances are enforced; the outer diameter range for 1.4571 stainless steel seamless tubes spans from 6 mm to 711 mm, with wall thicknesses ranging from 0.8 mm to 30 mm. These tubes are suitable for operation within a temperature range of -70°C to 650°C, thereby ensuring their applicability in fields such as pressure vessels, chemical equipment, hydraulic systems, and solar energy installations.





EN 10216-5 1.4571 Stainless Steel Seamless Tube Specification

Product Name	TP316Ti Acid-resistant Stainless Steel Seamless Pipe DN200 219x6 mm
Grade	AISI 316Ti (UNS S31635)/ 10X17H13M2T / 1.4571 /06Cr17Ni12Mo2Ti (S31668)				Standard	ASTM A312,ASTM A213,ASTM A269 EN 10216-5,DIN 17456; GB/T 14976,GB13296,GB/T 15011; GOST 9940-81,GOST 9941-2022
Specification	Outer Diameter:6 mm-630 mm(1/8 inch-24 inch)
	Wall Thickness: 0.89mm-80mm (SCH 10S, SCH 40S, SCH 80S, SCH 160, SCH XXS)
	Length:Random length 5~7m;Fixed length 6m /6.096m /6.1m/12m;As customer's actual request
Pipe End	Plain End (PE) ;Beveled End (BE)				Surface	Acid Pickling; Polishing; Bright Annealing; Sand Blasting; Shot Blasting / Shot Peening



Chemical Composition of TP316Ti 1.4571 10X17H13M2T Stainlesss Steel  Tube

Grade	C (max)	Mn (max)	P (max)	S (max)	Si (max)	Cr	Ni	Mo	Ti
TP316Ti	0.080	2.00	0.045	0.030	0.75	16.0~18.0	10.0~14.00	2.0~3.0	5*(C+N)~0.70 N≤0.10
1.4571	0.080	2.00	0.040	0.015	1.00	16.5~18.5	10.5~13.5	2.0~2.5	5*C~0.70
10X17H13M2T	0.100	2.00	0.035	0.020	0.80	16.0~18.0	12.0~14.0	2.0~3.0	5*C~0.70





Mechanical Properties of TP316Ti 1.4571 10X17H13M2T Stainlesss Steel Seamless Tube

Grade	Tensile strength min (Mpa)			Yield strength min (Mpa)		Elongation A5 %		Hardness (HRB)
TP316Ti	515					35		90
1.4571	500~730			210		30		90
10X17H13M2T	529			-		35		90



Size Range of EN 10216-5 Tubes

Outside Diameter (OD)	1/8", 3/8", 3/4", 2" 3/16", 5/16", 5/8", 1/4", 1-1/2", 1/2", 1", 1/16", 1-1/4" 3 mm to 50 mm
Wall Thickness	0.035", 0.014", 0.049", 0.065", 0.120", 0.083", 0.095", 0.109", 0.028" 0.5 mm to 5.0 mm.



EN 10216-5 tolerances chart

Tolerances accordance to EN ISO 1127

Outer diameter (OD)	Wall thickness of Seamless Tube
D1 = +/- 1,50%, minimum +/- 0,75 mm	T1 = +/- 15,0%, minimum +/- 0,60 mm
D2 = +/- 1,00%, minimum +/- 0,50 mm	T1 = +/- 12,5%, minimum +/- 0,40 mm
D3 = +/- 0,75%, minimum +/- 0,30 mm	T1 = +/- 10,0%, minimum +/- 0,20 mm
D4 = +/- 0,50%, minimum +/- 0,10 mm	T1 = +/- 7,0%, minimum +/- 0,15 mm



Below is the material sheet for the 1.4571 stainless steel we exported to European countries; please verify the Ti content.



Quality Inspection and Delivery Schedule

Testing	Tensile Strength;Reverse bending test;Flattening test;Flare test;Flange test;Dimensional;Hydrostatic Test;Pneumatic Test;Hardness;Eddy Current test;Intergranular Corrosion				Value Added Services	Customize Length Cutting; Bending; Polishing (180#,240#,320#,400#,600#); Shot Blasting / Shot Peening; Laser Drilling; Degreasing; Print Colour Code
Pipe's Markings	GH-STEEL SML ASTM A312 TP 316Ti 38*2 MM HEAT/LOT NO: NDT				Delivery Time	For ready stock :7 days ;For MTO: 30 days

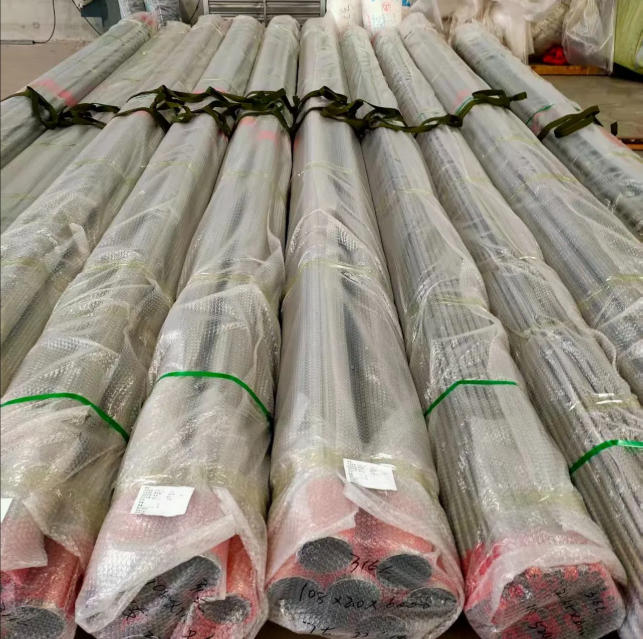

Packaged using waterproof paper and steel strapping, meeting standard export requirements for sea freight and suitable for various modes of transport; packaging can also be customized according to client specifications.
Packaging
Standard Export Packaging for Stainless Steel Plates
1. Polished surface finish; 2. Strapped bundling;
3. Wooden crate packaging; Wooden pallet packaging.
