Are you looking for large-size ASME SA240 304L plate for industrial or fabrication projects in the UAE?In this case study, we share how our ASME SA240 304L stainless steel plate, supplied in wide widths from 2000 mm up to 6000 mm, helped a UAE-based engineering contractor successfully complete a demanding fabrication project requiring high corrosion resistance, excellent flatness, and strict ASME compliance.
Customer Background
Project Location: United Arab Emirates (UAE)
Industry: Industrial fabrication / infrastructure & equipment manufacturing
Product Required: ASME SA240 304L stainless steel plate
Key Demand: Large-format plates for cutting and forming, minimizing welding joints
The customer was sourcing reliable ASME SA240 304L plate suppliers capable of delivering extra-wide stainless steel plates while maintaining consistent mechanical properties and surface quality.
Project Challenges
The client in the UAE faced the following challenges:
1. The need for large-sized 304L stainless steel plates (2000-6000 mm wide) to minimize welding seams.
2. The product would be exposed to a humid coastal environment, requiring extremely high corrosion resistance.
3. Strict requirements for inspection and documentation in accordance with ASME SA240 standards.
4. A tight project timeline and strict requirements for flatness and thickness tolerances.
Previously purchased steel plates had issues with uneven flatness and inconsistent surface finish, leading to increased manufacturing costs.
Our Solution: ASME SA240 304L Stainless Steel Plate
We supplied ASME SA240 304L plate tailored to the project's exact needs.
| Item | Details |
|---|---|
| Standard | ASME SA240 / ASTM A240 |
| Grade | 304L Stainless Steel Plate |
| Width | 2000 mm – 6000 mm |
| Thickness | 3 mm – 50 mm (custom available) |
| Length | Custom cutting as required |
| Surface Finish | 2B / No.1 / Pickled |
| Certification | MTC EN 10204 3.1 |
Results and Performance
The 304L stainless steel hot-rolled plates were delivered on time and met tolerance requirements. Manufacturing efficiency was improved by reducing welding joints by over 25%, and no surface cracking or deformation occurred during cutting and forming. The finished equipment passed customer and third-party inspections without requiring rework.
"The flatness and consistency of the ASME SA240 304L steel plates significantly improved our manufacturing efficiency. The large width helped us reduce welding and inspection costs."- Project Manager, UAE
ASME SA240 304L Plate Pricing Reference (UAE Market)
| Plate Width | Thickness Range | Price Range (USD/MT) |
|---|---|---|
| 2000–3000 mm | 3–12 mm | 2,800 – 3,300 |
| 3000–4000 mm | 6–20 mm | 3,000 – 3,600 |
| 4000–6000 mm | 8–50 mm | Contact for quote |
Prices vary depending on thickness, surface finish, quantity, and delivery terms.

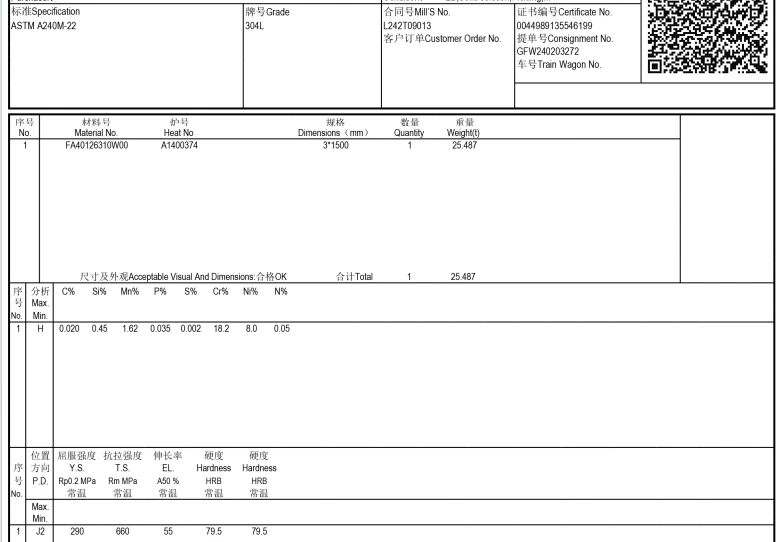

ASME SA240 304L Plate Material Certificate
FAQ
Q1: What Is ASME SA240 304L Plate Used For?
ASME SA240 304L plate is commonly used in pressure vessels, industrial fabrication, tanks, and structural applications requiring corrosion resistance and excellent weldability.
Q2: Can ASME SA240 304L Plate Be Supplied In Extra-Wide Sizes?
Yes. We supply Large-Width ASME SA240 304L Stainless Steel Plates From 2000 Mm Up To 6000 Mm, ideal for reducing welds.
Q3: Is ASME SA240 The Same As ASTM A240?
Yes. ASME SA240 is the ASME-adopted version of ASTM A240, widely accepted in pressure and industrial projects.
Q4: Do You Provide Inspection And Certification?
Yes. Each ASME SA240 304L plate is supplied with Mill Test Certificate (MTC 3.1) and full traceability.
