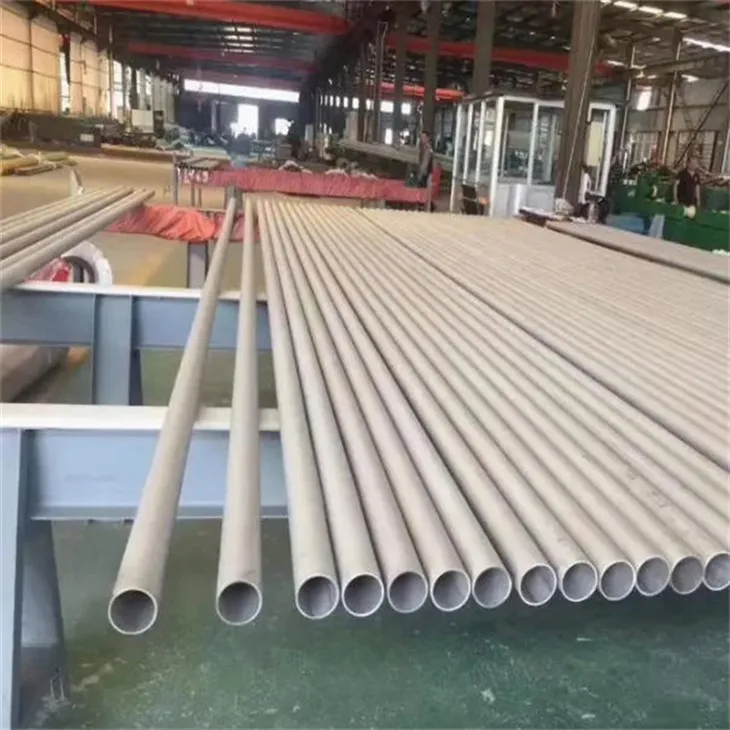

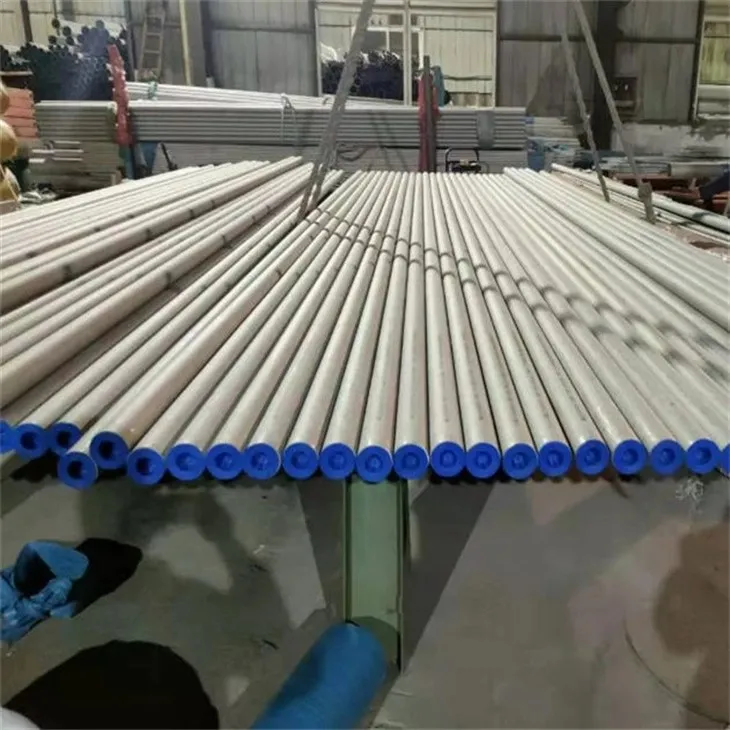

ASTM A268 Grade TP430 Stainless Steel Seamless Tube
Shape:Round
Technique:Cold Rolled
Surface Treatment:Pickling
Lenght:3~12m or as Required
MOQ:500kgs
Surface:Annealing, Pickling, Polishing, Bright, Sand Blas
Delivery Times:15 Days
Thickness:Sch5s~Sch160,Xxs
Transport Package:Standard Export Sea-Worthy Packing
Specification:1/2"~64"
Production Capacity:1000 Tons / Month
TP430 heat exchanger tubes supplier
GNEE can supply TP430 (UNS S43000) ferritic stainless steel seamless tubes in accordance with ASTM A268 / ASME SA268 standards. These tubes are widely used in heat exchangers, condensers, automotive exhaust systems, and piping systems exposed to freshwater and atmospheric corrosion.
The TP430 seamless tubes we provide are designed with low carbon and low nitrogen content (C ≤ 0.08%, N ≤ 0.05%). The standard outer diameter range is from Φ6 mm to Φ114.3 mm, with wall thicknesses covering SCH 5S to SCH 80S. Tubes can be supplied in the annealed condition, ensuring a tensile strength of ≥ 450 MPa and good ductility (elongation ≥ 20%), which prevents cracking during processing such as flaring, bending, and welding.
ASTM A268 TP430 seamless tubes have a thermal conductivity approximately 1.3–1.5 times that of 304 stainless steel, making them particularly suitable for heat exchanger applications to improve heat transfer efficiency. As they contain no nickel, their cost is significantly lower than austenitic grades such as 304 and 316L in non-strong oxidizing acids and various organic acid environments.
We guarantee that the chemical composition and mechanical properties of each batch fully comply with the relevant standards and provide an EN 10204 3.1 mill test certificate. Upon request, additional inspection reports such as hydrostatic testing, eddy current testing (ET), or ultrasonic testing (UT) can also be provided to ensure reliable performance under pressure and corrosive service conditions.
TP430 pipe mill test certificate EN 10204 3.1
ASTM A268 Stainless Steel Tubing Specification
| Material Grade | TP430 (UNS S43000) |
| Type | Ferritic Stainless Steel |
| Manufacturing Process | Seamless (Cold Drawn or Hot Rolled) |
| Standard | ASTM A268 / ASME SA268 |
| Application | Heat exchangers, condensers, chemical processing, and heater tubes |
| Outside Diameter (OD) | 6.35 mm – 152.4 mm (1/4" to 6") |
| Wall Thickness (WT) | 0.5 mm – 20 mm |
| Length | Single Random, Double Random, or Fixed Length (Max 12m) |
| OD Tolerance | According to ASTM A268 / A1016 |
TP430 stainless steel tube chemical composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| TP430 | min. max. |
- 0.12 |
- 1.00 |
- 1.00 |
- 0.040 |
- 0.030 |
16.0 18.0 |
- | - 0.75 |
- |
TP430 Stainless Steel mechanical properties
The steel shall conform to the following tensile properties: tensile strength, yield strength, and elongation.
| Grade | Tensile Strength, Min, Ksi [MPa] | Yield Strength, Min, Ksi [MPa] | ELONGATION. MIN, % |
|---|---|---|---|
| TP430 | 60 [415] | 35 [240] | 20 |
ASTM A268 Stainless Steel Tubing Sizes Tolerance
Variations in outside diameter, wall thickness, and length from those specified shall not exceed the amounts prescribed below.
| Outside Diameter, In.[Mm] | OD Tolerance, In.[Mm] | Wall Thickness, % | Thin Wall Tubes |
|---|---|---|---|
| Up To1⁄2, [12.7], Excl | ±0.005 [0.13] | ±15 | |
|
1⁄2 To 11⁄2 [12.7 To 38.1], Excl/Td>
|
±0.005 [0.13] | ±10< | Less Than 0.065 In. [1.6 Mm] Nominal |
| 11⁄2 To 31⁄2 [38.1 To 88.9], Excl | ±0.010 [0.25] | ±10 | Less Than 0.095 In. [2.4 Mm] Nominal |
| 31⁄2 To 51⁄2 [88.9 To 139.7], Excl | ±0.015 [0.38] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
| 51⁄2 To 8 [139.7 To 203.2], Incl | ±0.030 [0.76] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
TP430 pipe Heat Treatment (Annealing)
TP430 must be annealed at a temperature of 1450°F (790°C) or higher, followed by cooling in air or a furnace to ensure maximum corrosion resistance and softness.
TP430 vs 304 Stainless Steel tube
If you're considering whether to choose 304 or 430 stainless steel pipe, 304 grade stainless steel (austenitic) is usually the preferred choice due to its excellent corrosion resistance and weldability caused by its 18/8 nickel-chromium alloy composition. However, 430 grade stainless steel (ferritic) is more affordable, magnetic, and suitable for mild, dry environments, but it does not contain nickel and has poorer corrosion resistance.
ASTM A268 TP430 seamless tube price per kg
The price of ASTM A268 TP430 seamless stainless steel pipe typically ranges from $3.50 to $6.50 per kilogram. Prices can vary significantly depending on factors such as outer diameter, wall thickness, quantity, and origin, with FOB prices sometimes reaching as high as $3,185 to $6,375 per ton.
inspection
The tubes shall have a hardness number that will not exceed the prescribed Brinell and Rockwell hardness values, TP410, TP430 and TP439 max Rockwell hardness 90, Test report required certification conform to Specification A1016/A1016M.
Several mechanical tests shall be conducted, namely:
Tension test;
Flaring test (for seamless tubes);
Flange test (for welded tubes);
Hardness test;
Reverse flattening test;
Intergranular corrosion test; and
Hydrostatic or nondestructive electric test.
430 Heat Exchanger Tube Factory
Gnee has a large warehouse and a certain amount of stock of commonly used specifications of TP430/430, shortening the delivery time to 3-7 days. With strong cooperation background with steel mills (TISCO, Baosteel, ZPSS), it can provide highly competitive ex-factory prices.

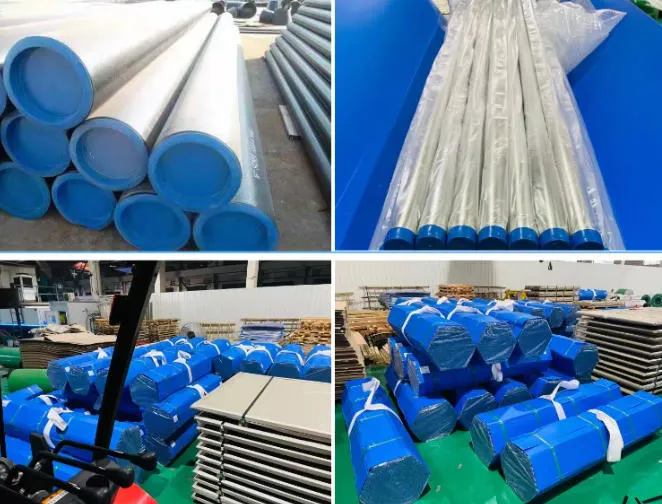

high quality packaging
Packaging: Hexagonal bundling, each bundle wrapped in a waterproof woven plastic bag.
Protection: Plastic caps on the pipe ends to prevent dust and moisture from entering the inner wall.
Wooden Crates: Export-grade fumigated wooden crates are available for ultra-thin pipes or orders with high export requirements.
Shipping Methods: Sea freight (FCL/LCL), air freight, land freight, and China-Europe Railway Express.
