ASTM A276 UNS S31803 Duplex Round Bar
Certification: ISO, AISI, ASTM, GB, EN, DIN, JIS
Shape: Round
Technique: Cold Rolled
Thickness: 2mm-300mm
Width:1000mm-2000mm
Length:as Your Requirements
Diameter Tolerance:H9, H11, H13, K9, K11, K13 etc
Sample:Free-Sample
Surface:Lack, Peeled, Polishing, Bright, Sand Blast,
Transport Package: Wooden Package
What is ASTM A276 UNS S31803 duplex round bar ?
ASTM A276 is the standard for stainless steel and heat-resistant steel bars specified by the American Society for Testing and Materials (ASTM). UNS S31803 is a duplex stainless steel, which is a ferrite-austenite duplex stainless steel (also known as duplex steel). It has high strength, good corrosion resistance and resistance to stress corrosion cracking, and is suitable for harsh environments.
ASTM A276 UNS S31803 stainless steel bar applications
Chemical and petrochemical: reactors, heat exchangers, piping systems
Marine engineering: desalination equipment, offshore platform structures, ship accessories
Energy industry: nuclear power plant components, desulfurization equipment

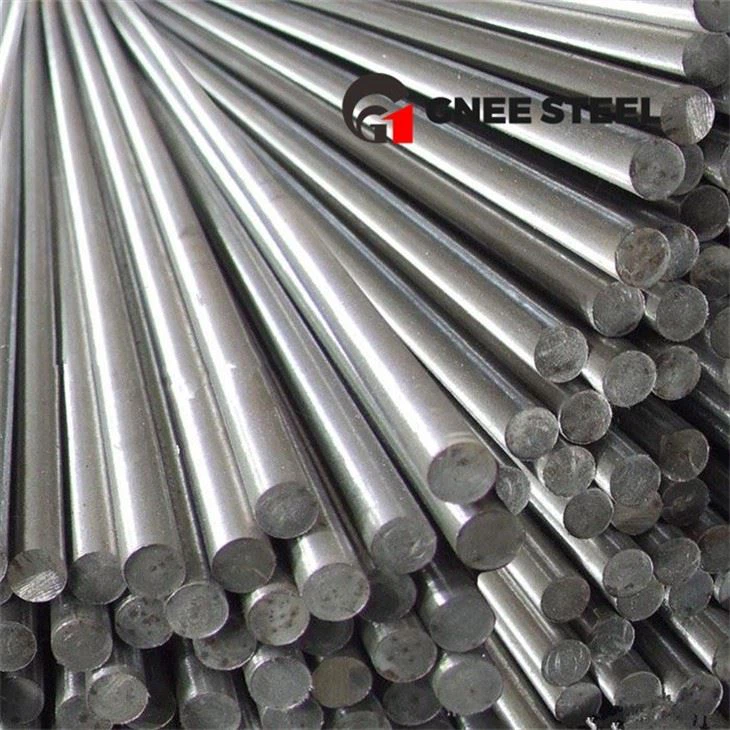

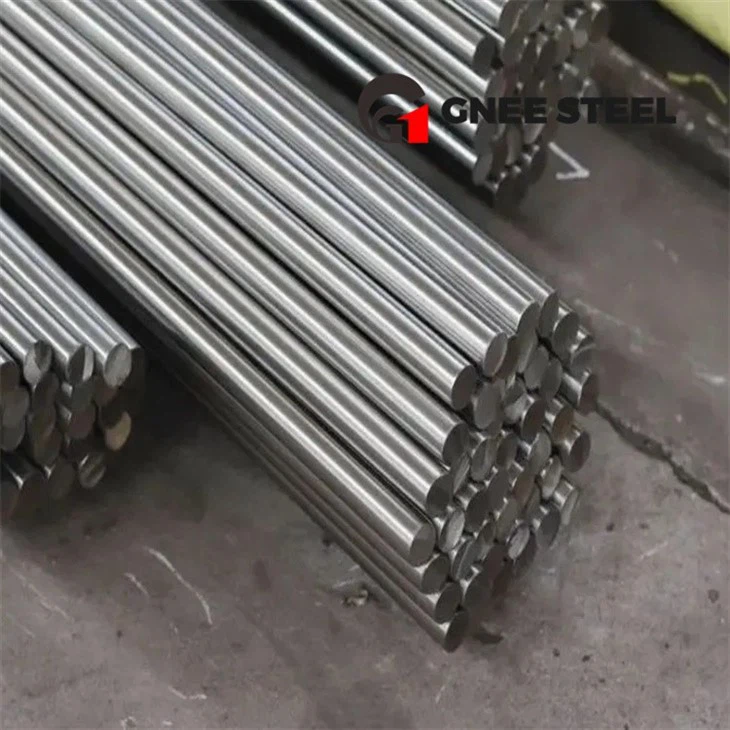

ASTM A276 UNS S31803 Round Bar Stock
Duplex Steel UNS S31803 Forged Rod Advantages
Duplex Steel S31803 Bright Rod has much higher yield strength (≥ 450 MPa) and tensile strength (≥ 620 MPa) than ordinary austenitic stainless steel (such as 304), reducing material consumption. It still maintains high impact toughness at low temperatures (such as -40°C), which is better than pure ferritic stainless steel. It can be welded, forged and machined, but the heat input needs to be controlled to avoid phase imbalance.
What is the difference between S31803 stainless steel bar and duplex stainless steel 2205?
UNS S31803 (formerly known as SAF 2205) and S32205 are the same material (codes in different standards), belonging to the second generation of duplex steel. Compared with the first generation (such as S31500), its chromium, molybdenum and nitrogen content is optimized, and its comprehensive performance is more balanced. It is one of the most widely used duplex stainless steels.
What is the supply state?
What is the supply state?
uNS S31803 Cold rolled stainless steel bar is usually supplied in solution treated (annealed + water quenched) state, with black skin, pickled or bright surface, and the size range covers round bars with diameters of 6mm to over 300mm, with customized tolerances and surface finishes according to ASTM A276 standards.
S31803 Duplex Steel Rods Specification :
| Specifications | : | ASTM A 276 / SA 276 |
| Dimensions | : | ASTM, ASME |
| Range | : | 3.17 MM TO 350 MM DIA |
| Length | : | 1 to 6 Meters, Custom Cut Lengths |
| Finish | : | Bright, Polish & Black |
UNS S31803 Duplex Steel Rods Chemical Composition
| C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
Duplex Steel S31803 Rods Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S31803 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
Duplex Steel S31803 Rods Distributors
ASTM A276 UNS S31803 stainless steel bar price per kg
Customer visit
