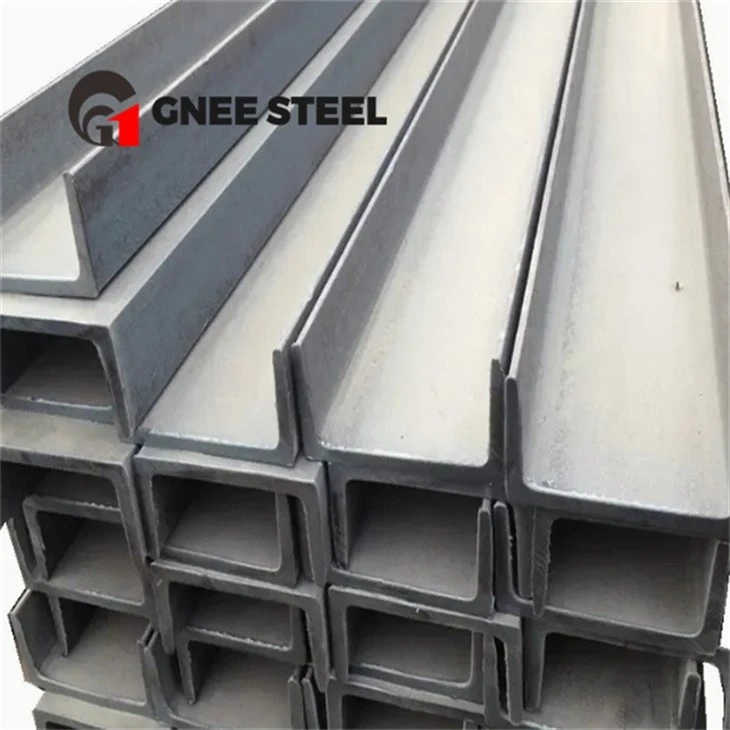

17-4PH Hot Rolled Stainless Steel Channels
Type:Cold Bending Equal Channel
Standard:GB, ASTM, JIS, AISI, DIN, BS
Perforated:Not Perforated
Length:5-12m
Machining:Custom, Kaiping, Cutting, Pattern
Process：Hot Rolled, Cold Drawn
Avaliable:Fast Delivery
Advantage:Be Customized with Any Material and Size
Service:OEM,ODM
Deliery Time:7-15 Days
Transport Package:Standard Sea -Worthy Package
product Description
17-4PH stainless steel channels (UNS S17400 / ASTM A564) are high-strength, precipitation-hardening martensitic stainless steel profiles produced through hot rolling, delivering excellent mechanical properties, corrosion resistance, and dimensional stability. They are widely used in aerospace frames, high-load structures, chemical plants, and defense systems where performance under stress and precision are critical.
Advantages
The UNS S17400 stainless steel U-channel is produced through hot rolling at 1040°C, which eliminates residual stress from cold working and refines the grain size to ASTM No. 8 or finer. This results in a 15% improvement in fatigue resistance compared to cold-formed channels, making it ideal for high-frequency vibration environments such as bridge supports and compressor bases.
The ASTM A564 17-4PH channel bar, in the H900 condition, delivers an exceptional tensile strength of up to 1310 MPa and a yield strength of up to 1170 MPa, which is 2–3 times higher than 304 or 316 stainless steel. With a hardness range of HRC 28–44, it combines high strength with good ductility, making it an excellent choice for aerospace structures, turbine frames, oil and gas equipment, and chemical plant supports.
SS 17-4PH U Channel Specifications
| Item | Details |
|---|---|
| Material Grade | 17-4PH (UNS S17400) / 1.4542 |
| Standards | ASTM A564, AMS 5643, ASTM A693 |
| Available Profiles | U Channel, C Channel, Custom Hot Rolled Sections |
| Heat Treatment Condition | A (solution annealed), H900 to H1150 (aged) |
| Tensile Strength | Up to 1310 MPa (H900) |
| Yield Strength | Up to 1170 MPa (H900) |
| Hardness | HRC 28–44 depending on heat treatment |
| Corrosion Resistance | Comparable to 304 in most environments |
| Max Operating Temp | Up to 315°C (600°F) continuous |
| Manufacturing Process | Hot rolled, precision cut |
| Sizes Available | Height: 30–200 mm, Width: 20–100 mm, Thickness: 3–25 mm |
| Applications | Aerospace supports, turbines, heavy-duty brackets, valves, pump shafts |
Contact GNEE for 17-4PH Stainless Structural Profiles
GNEE provides hot-rolled 17-4PH stainless steel C-beams, U-beams and custom structural shapes that meet ASTM and AMS standards, and offers DNV GL, ISO 9001 certification and full process traceability reporting to reduce the frequency of third-party testing and improve project compliance.
👉 Request a quote today to get:
Technical datasheets
Custom sizes and cut-to-length service
Fast lead times for bulk and project orders
S17400 U profile supplier
Best quality packaging
GNEE Customer Visit
