What are 316 SS pipe fittings?
316 stainless steel pipe fittings refer to pipe connection components made primarily of 316 stainless steel (or its ultra-low carbon version, 316L). They are widely used in industrial fluid transportation systems for functions such as connection, direction change, diameter change, sealing, or closure.
Common Types: Include elbows, tees, reducers, couplings, caps, and unions.
Standards: Comply with ASTM A403, ASME B16.9, and B16.11.
Applications: Widely used in chemical processing, offshore platforms, desalination plants, food & beverage, and pharmaceutical industries.
316 SS pipe fitting Standards & Specifications
| Category | Item | Specification / Standard |
| Material (Wrought) | Buttweld Fittings | ASTM A403 / ASME SA403 (WP316, WP316L, WP316H) |
| Material (Forged) | Threaded & Socket Weld | ASTM A182 / ASME SA182 (F316, F316L) |
| Dimensions | Buttweld Fittings | ASME B16.9 (Large Bore), MSS SP-43 (Light Weight) |
| Dimensions | Forged Fittings | ASME B16.11 (Socket Weld & Threaded) |
| Dimensions | Flanges | ASME B16.5 (up to 24"), ASME B16.47 (above 24") |
| Threads | Pipe Threads | ASME B1.20.1 (NPT), ISO 7-1 (BSPT), ISO 228 (BSPP) |
| Certifications | Quality Reports | EN 10204 3.1 / 3.2, NACE MR0175/ISO 15156 |
ASTM A403 / A182 316 Chemical Composition (%)
| Grade | Carbon (C) | Manganese (Mn) | Silicon (Si) | Phosphorus (P) | Sulfur (S) | Chromium (Cr) | Nickel (Ni) | Molybdenum (Mo) |
| 316 | 0.08 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 16.0 - 18.0 | 10.0 - 14.0 | 2.00 - 3.00 |
| 316L | 0.03 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 16.0 - 18.0 | 10.0 - 14.0 | 2.00 - 3.00 |
316 pipe Fittings Available Size Ranges
| Fitting Category | Connection Type | Common Products | Size Range | Wall Thickness / Rating |

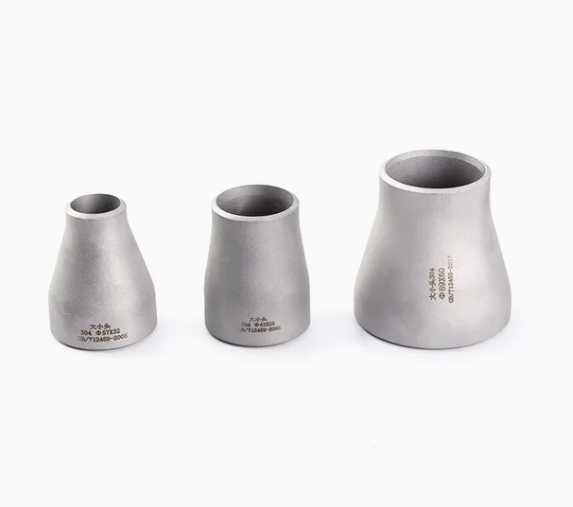

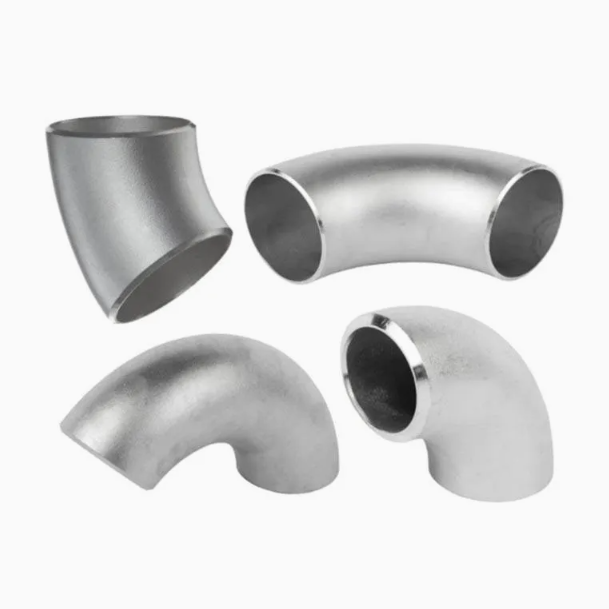

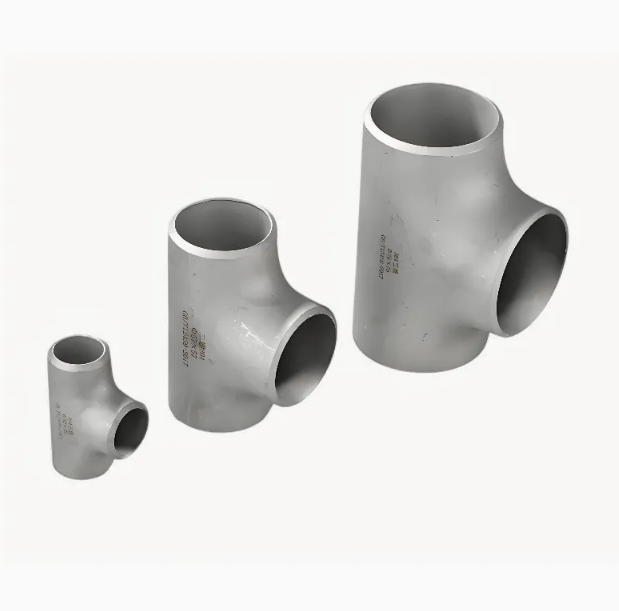

| Buttweld | Welded (BW) | 45°/90°/180° Elbow (LR/SR), Equal/Reducing Tee, Conc./Ecc. Reducer, Cap, Stub End | 1/2" to 48" | SCH 5S, 10S, 40S, 80S, 160, XXS |
| Forged | Socket Weld (SW) | 90° Elbow, Tee, Cross, Union, Coupling, Cap | 1/8" to 4" | Class 3000, 6000, 9000 |
| Forged | Threaded (THD) | NPT/BSPT Elbow, Tee, Street Elbow, Hex Bushing, Nipple, Plug | 1/8" to 4" | Class 2000, 3000, 6000 |
| Flanges | Various | Weld Neck (WN), Slip-On (SO), Blind (BL), Lap Joint (LJ) | 1/2" to 60" | Class 150 to 2500 |
Mechanical Properties of 316/316L Fittings
Critical data for engineering calculations (Pressure Vessel Code compliance).
| Property | Grade 316 (Min. Requirement) | Grade 316L (Min. Requirement) |
| Tensile Strength (ksi / MPa) | 75 / 515 | 70 / 485 |
| Yield Strength 0.2% Offset (ksi / MPa) | 30 / 205 | 25 / 170 |
| Elongation in 2 in. (%) | 35% - 40% | 35% - 40% |
| Hardness (Brinell - HBW) | 187 Max | 187 Max |
| Hardness (Rockwell - HRB) | 90 Max | 90 Max |
Pressure Ratings for 316 Forged Fittings (ASME B16.11)
Quick reference for pressure limits at ambient temperature.
| Class Designation | Type of Fitting | Ambient Temp Service Pressure (PSI) | Ambient Temp Service Pressure (Bar) |
| Class 2000 | Threaded | 2,000 PSI | ~138 Bar |
| Class 3000 | Threaded / SW | 3,000 PSI | ~207 Bar |
| Class 6000 | Threaded / SW | 6,000 PSI | ~414 Bar |
| Class 9000 | Socket Weld | 9,000 PSI | ~620 Bar |
What is the difference between 304 and 316 stainless steel fittings?
The main difference between 304 and 316 stainless steel pipe fittings is that 316 contains 2-3% molybdenum, giving it superior corrosion resistance compared to 304, especially in chloride and marine environments. 304 is suitable for general, indoor, and freshwater applications, while 316, due to its greater durability, is better suited for saltwater, chemical, and pharmaceutical industries.
316 SS pipe fittings supplier
GNEE supplies 316 pipes, fittings, flanges, valves, and gaskets, ensuring consistent specifications and fit throughout the entire pipeline. We can produce non-standard elbows (e.g., special radii) or large-diameter, thick-walled reducers according to customer CAD drawings.
Butt-welded fittings: Utilizing cold extrusion or thermoforming technology, ensuring uniform wall thickness and precise beveling ends for easy automated on-site welding.
Forged fittings: Forged using high-tonnage forging presses, resulting in complete metal flow lines, eliminating internal porosity and cracks, and capable of withstanding extremely high system pressures.
Certification support: Providing complete MTC (Material Certificate of Conformity) in accordance with EN 10204 3.1.
GNEE 316/316L Stainless Steel Pipe Fittings Product Range
We provide a complete range of Buttweld, Socket Weld, and Threaded fittings, covering various industrial applications.
| Category | Common Products | Standards | Size Range | Wall Thickness / Pressure Rating |
|---|---|---|---|---|
| Buttweld Fittings | 90° / 45° Elbows, Equal / Reducing Tees, Reducers (Concentric / Eccentric), Pipe Caps, Stub Ends | ASME B16.9, MSS SP-43, EN 10253 | 1/2" – 48" (Seamless / Welded) | SCH 5S, 10S, 40S, 80S, 160, XXS |
| Forged Fittings (Socket Weld) | Socket Weld Elbows, Tees, Crosses, Unions, Couplings, Olets | ASME B16.11, BS 3799 | 1/8" – 4" | 3000#, 6000#, 9000# |
| Threaded Fittings | NPT / BSPT Elbows, Threaded Tees, Hex Nipples, Bushings, Plugs | ASME B16.11, ISO 4144 | 1/8" – 4" | 150#, 2000#, 3000# |
| Flanges | Slip-On (SO), Weld Neck (WN), Blind (BL), Socket Weld (SW) | ASME B16.5, EN 1092-1 | 1/2" – 60" | Class 150 – 2500, PN6 – PN160 |
