If you are looking for 2205 stainless steel pipe pressure ratings, the most important factors are not only the pipe grade but also outside diameter, wall thickness, schedule, temperature, manufacturing method, and design standard. Many buyers make purchasing decisions based only on SCH40 or SCH80, but the actual allowable working pressure can vary significantly depending on pipe dimensions and operating conditions.
What is the maximum pressure rating of 2205 stainless steel pipe?
The maximum pressure rating depends on pipe size, schedule (wall thickness), and operating temperature. At ambient temperature, a small-diameter thick-wall 2205 pipe (e.g., 1" SCH 160) can exceed 7,600 psig. Larger pipes with thinner walls have proportionally lower ratings. Always refer to the specific size/schedule chart and applicable design code.
The allowable pressure depends on several factors:
1.Pipe outside diameter
2.Wall thickness (pipe schedule)
3.Operating temperature
4.Material allowable stress
5.Applicable design standard
How to Calculate 2205 Stainless Steel Pipe Pressure Rating?
P = (2 × S × t × E) / (D − 2 × t × Y)
Where:
P = Internal design pressure (psi / MPa)
S = Allowable stress value at design temperature (psi / MPa)
t = Nominal wall thickness (in / mm)
D = Outside diameter of pipe (in / mm)
E = Longitudinal weld joint efficiency factor (seamless = 1.0)
Y = Temperature-dependent coefficient (0.4 for ferritic steels below 900°F)
2205 Stainless Steel Pipe Pressure Rating Chart
The following table provides MAWP values (in psig) for common 2205 seamless stainless steel pipe sizes across standard schedules at various operating temperatures. Values are based on ASME B31.3 allowable stress for UNS S32205 seamless pipe (E=1.0) and include standard wall thicknesses per ANSI/ASME B36.19.
| Nominal Size (in) |
Schedule (SCH) |
OD (in) |
Wall (in) |
Pressure Rating at Temperature (°F) - psig | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100°F | 200°F | 300°F | 400°F | 500°F | 600°F | 650°F | 700°F | 750°F | ||||
| Allowable Stress S (psi) | 16,700 | 16,700 | 16,700 | 15,500 | 14,400 | 13,500 | 13,200 | 12,900 | 12,600 | |||
| 1" | 40 | 1.315 | 0.133 | 3,730 | 3,730 | 3,730 | 3,463 | 3,217 | 3,016 | 2,949 | 2,882 | 2,815 |
| 80 | 1.315 | 0.179 | 5,228 | 5,228 | 5,228 | 4,853 | 4,509 | 4,227 | 4,133 | 4,039 | 3,945 | |
| 160 | 1.315 | 0.250 | 7,671 | 7,671 | 7,671 | 7,121 | 6,616 | 6,203 | 6,065 | 5,927 | 5,789 | |
| 1½" | 40 | 1.900 | 0.145 | 2,728 | 2,728 | 2,728 | 2,532 | 2,353 | 2,206 | 2,157 | 2,108 | 2,059 |
| 80 | 1.900 | 0.200 | 3,854 | 3,854 | 3,854 | 3,577 | 3,324 | 3,116 | 3,047 | 2,978 | 2,909 | |
| 160 | 1.900 | 0.281 | 5,626 | 5,626 | 5,626 | 5,222 | 4,851 | 4,548 | 4,447 | 4,346 | 4,245 | |
| 2" | 40 | 2.375 | 0.154 | 2,295 | 2,295 | 2,295 | 2,130 | 1,980 | 1,856 | 1,815 | 1,774 | 1,733 |
| 80 | 2.375 | 0.218 | 3,324 | 3,324 | 3,324 | 3,085 | 2,867 | 2,688 | 2,628 | 2,568 | 2,509 | |
| 160 | 2.375 | 0.344 | 5,494 | 5,494 | 5,494 | 5,099 | 4,737 | 4,441 | 4,343 | 4,244 | 4,146 | |
| 3" | 40 | 3.500 | 0.216 | 2,179 | 2,179 | 2,179 | 2,023 | 1,879 | 1,762 | 1,723 | 1,684 | 1,645 |
| 80 | 3.500 | 0.300 | 3,094 | 3,094 | 3,094 | 2,872 | 2,668 | 2,502 | 2,446 | 2,391 | 2,335 | |
| 160 | 3.500 | 0.438 | 4,674 | 4,674 | 4,674 | 4,339 | 4,031 | 3,779 | 3,695 | 3,611 | 3,527 | |
| 4" | 40 | 4.500 | 0.237 | 1,841 | 1,841 | 1,841 | 1,709 | 1,588 | 1,489 | 1,456 | 1,423 | 1,390 |
| 80 | 4.500 | 0.337 | 2,672 | 2,672 | 2,672 | 2,480 | 2,304 | 2,160 | 2,112 | 2,064 | 2,016 | |
| 160 | 4.500 | 0.531 | 4,364 | 4,364 | 4,364 | 4,050 | 3,763 | 3,528 | 3,450 | 3,371 | 3,293 | |
| 6" | 40 | 6.625 | 0.280 | 1,466 | 1,466 | 1,466 | 1,361 | 1,264 | 1,186 | 1,159 | 1,133 | 1,107 |
| 80 | 6.625 | 0.432 | 2,306 | 2,306 | 2,306 | 2,140 | 1,988 | 1,864 | 1,823 | 1,781 | 1,740 | |
| 160 | 6.625 | 0.719 | 3,979 | 3,979 | 3,979 | 3,694 | 3,432 | 3,218 | 3,147 | 3,075 | 3,004 | |
| 8" | 40 | 8.625 | 0.322 | 1,286 | 1,286 | 1,286 | 1,193 | 1,109 | 1,040 | 1,017 | 994 | 971 |
| 80 | 8.625 | 0.500 | 2,036 | 2,036 | 2,036 | 1,890 | 1,756 | 1,646 | 1,610 | 1,573 | 1,537 | |
| 160 | 8.625 | 0.906 | 3,838 | 3,838 | 3,838 | 3,563 | 3,310 | 3,104 | 3,035 | 2,966 | 2,897 | |
| 10" | 40 | 10.750 | 0.365 | 1,165 | 1,165 | 1,165 | 1,081 | 1,005 | 942 | 921 | 900 | 879 |
| 80 | 10.750 | 0.594 | 1,932 | 1,932 | 1,932 | 1,793 | 1,666 | 1,562 | 1,527 | 1,492 | 1,458 | |
| 160 | 10.750 | 1.125 | 3,822 | 3,822 | 3,822 | 3,548 | 3,296 | 3,090 | 3,022 | 2,953 | 2,884 | |
| 12" | 40 | 12.750 | 0.406 | 1,085 | 1,085 | 1,085 | 1,007 | 936 | 877 | 858 | 838 | 819 |
| 80 | 12.750 | 0.688 | 1,876 | 1,876 | 1,876 | 1,741 | 1,618 | 1,517 | 1,483 | 1,450 | 1,416 | |
| 160 | 12.750 | 1.312 | 3,740 | 3,740 | 3,740 | 3,472 | 3,225 | 3,024 | 2,957 | 2,889 | 2,822 | |
2205 SCH40S vs SCH80S Pressure Comparison
For buyers selecting pipe schedules:
| Size | SCH40S | SCH80S |
|---|---|---|
| NPS 2" | Approx. 280 bar | Approx. 400 bar |
| NPS 3" | Approx. 260 bar | Approx. 380 bar |
| NPS 4" | Approx. 220 bar | Approx. 330 bar |
| NPS 6" | Approx. 180 bar | Approx. 270 bar |
SCH80S is preferred for higher-pressure applications because the increased wall thickness improves mechanical strength and corrosion allowance.

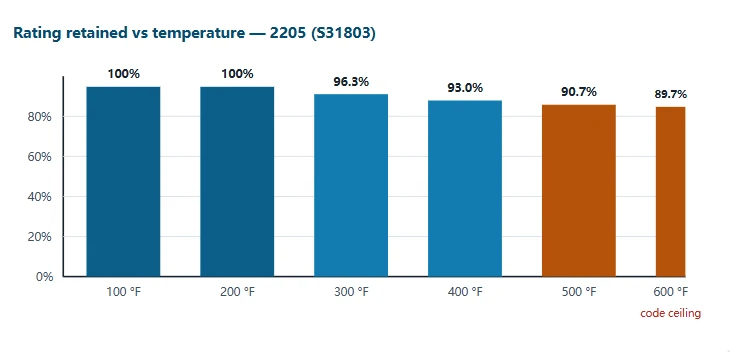

How does temperature affect 2205 pipe pressure rating?
Elevated temperatures reduce the allowable stress of 2205 duplex stainless steel, which directly reduces pressure capacity. From room temperature to 500°F (260°C), the allowable stress drops by approximately 14%. By 750°F (399°C), it drops by about 25%. Additionally, extended exposure above 570°F (300°C) can cause microstructural changes (sigma phase embrittlement) that further reduce toughness and corrosion resistance.
Allowable Stress Values for UNS S32205 (ASME B31.3)
| Temperature (°F) | Temperature (°C) | Allowable Stress S (psi) | Allowable Stress S (MPa) | Derating Factor | 0.2% Proof Strength (ksi) |
|---|---|---|---|---|---|
| 100 | 38 | 16,700 | 115.1 | 1.000 | 65.0 |
| 200 | 93 | 16,700 | 115.1 | 1.000 | 58.0 |
| 300 | 149 | 16,700 | 115.1 | 1.000 | 52.0 |
| 400 | 204 | 15,500 | 106.9 | 0.928 | 47.0 |
| 500 | 260 | 14,400 | 99.3 | 0.862 | 42.5 |
| 600 | 316 | 13,500 | 93.1 | 0.808 | 40.0 |
| 650 | 343 | 13,200 | 91.0 | 0.790 | 38.5 |
| 700 | 371 | 12,900 | 88.9 | 0.772 | 37.0 |
| 750 | 399 | 12,600 | 86.9 | 0.754 | 35.5 |
| 800 | 427 | 11,200 | 77.2 | 0.671 | 33.0 |
Maximum Continuous Service Temperature: 2205 duplex stainless steel is generally limited to 600°F (315°C) maximum continuous service. Extended exposure above 570°F (300°C) can cause precipitation of intermetallic phases (e.g., sigma phase), leading to loss of toughness and corrosion resistance. For prolonged service above 500°F, verify impact toughness requirements with your material supplier.
Quick Schedule Selection Reference
| Schedule | Typical Pressure Range* | Common Use Cases |
|---|---|---|
| SCH 10S | Up to ~800-1,200 psig | Low-pressure utility lines, water service, gravity flow |
| SCH 40S | ~1,100-3,700 psig | General process piping, medium pressure applications (most common) |
| SCH 80S | ~1,900-5,200 psig | High-pressure process lines, wellhead piping, high-temperature service |
| SCH 160 | ~3,700-7,700 psig | Very high pressure service, wellhead components, subsea systems |
| XXS | Higher than SCH 160 | Extreme high pressure, special applications |
*Range varies by pipe size and temperature. Smaller diameters have higher pressure ratings. Consult the detailed chart above for exact values.
