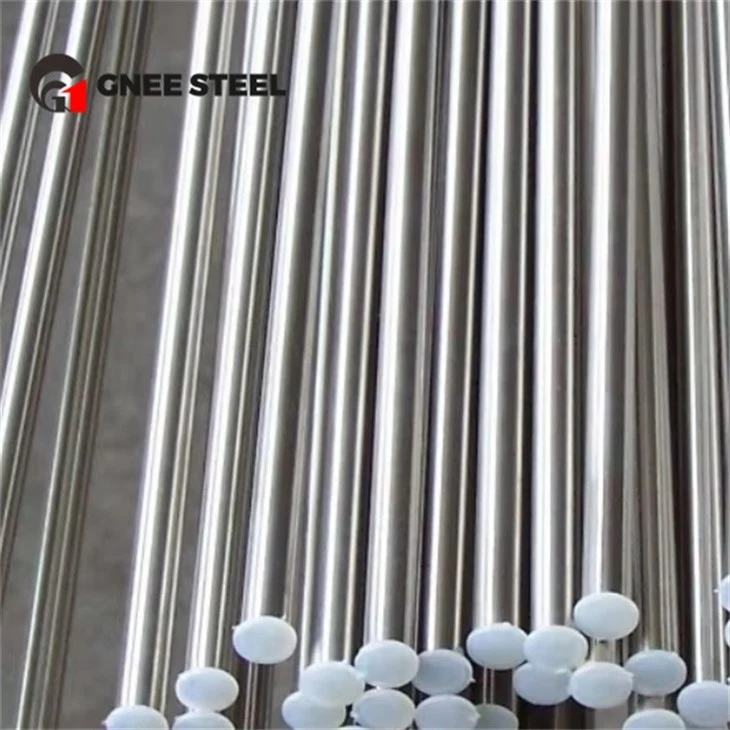

347H Stainless Steel Precision Bar
Certification:ASTM, GB, EN, DIN, JIS
Shape:Round
Technique:Hot/Cold Rolled
Surface Treatment：Polished
Dimensions:5-400mm
Tolerance:0/+1.0mm(Turned) -0/+5.0mm(Black)
Transport Package:in Bundles or Wooden Box
What is 347H Stainless Steel Precision Bar ?
347H stainless steel precision bar is an austenitic stainless steel containing niobium (Nb), which is a high temperature hardened alloy ("H" stands for high temperature use, with a slightly higher carbon content to improve creep strength). The round bar is made by precision processing such as cold drawing, grinding, and polishing. It has high-precision dimensions, low surface roughness, and excellent high-temperature mechanical properties. It is suitable for precision parts with extremely high requirements for accuracy and high temperature resistance.
sS 347H cold Finished Round bar
347H Stainless Steel Cold Drawn Bar Advantages
SS347H stainless steel CR bar is stabilized by niobium to avoid intergranular corrosion (must meet ASTM A262 Practice E test). It has excellent creep and oxidation resistance when used for a long time at 700–870°C, better than 304/321H.
SS3347H ground Cold drawn bar has good cold workability and can be drilled, turned, and ground. It is recommended to use high-speed steel or carbide tools when cutting. It has strict dimensional tolerances and is suitable for precision mechanical matching (such as bearings, valve stems, gear shafts).
Why Choose GNEE
Routine testing: chemical composition analysis (direct reading spectrometer), tensile test, hardness test, full dimensional inspection (projector/micrometer).
Special testing: intergranular corrosion test (ASTM A262 Practice E, to ensure niobium stabilization effect); surface defect detection (visual/fluorescent penetration, 100% surface inspection of grinding rods).
Moisture-proof packaging: The surface of precision rods is not protected by oxide skin, and must be packaged with moisture-proof paper or plastic bags to avoid rust during transportation.
If you need samples, high temperature performance test data or processing technology guidance, please contact our technical team!
347H Precision Stainless Steel Bar Specification
Chemical Composition (Typical Values, %)
| Element | C | Cr | Ni | Nb | Mn | Si | P≤ | S≤ |
|---|---|---|---|---|---|---|---|---|
| 347H | 0.04–0.10 | 17.0–19.0 | 9.0–12.0 | ≥10×C | ≤2.0 | ≤1.0 | 0.045 | 0.03 |
Mechanical Properties (Solution-Annealed Condition)
| Property | Index |
|---|---|
| Tensile Strength | ≥515 MPa |
| Yield Strength | ≥205 MPa (0.2% offset) |
| Elongation | ≥30% (50mm gauge length) |
| Hardness | ≤201 HB (annealed state); higher in cold-drawn state (customizable) |
| High-Temperature Performance | Oxidation resistance up to 870°C; long-term service temperature ≤760°C, with creep rupture strength superior to standard 347. |
Dimension Specifications
Diameter Range:
Standard: 1.0–100 mm; customizable up to 150 mm.
Tolerances:
Cold-Drawn Bars: Diameter ±0.02–0.05 mm (e.g., φ10±0.03 mm).
Ground Bars: Diameter ±0.001–0.01 mm (precision grade, e.g., φ25±0.005 mm).
Length:
Standard: 1–6 meters; customizable cut-to-length (precision ±1 mm).
ASTM A276 Type 347H Rod Manufacturer
